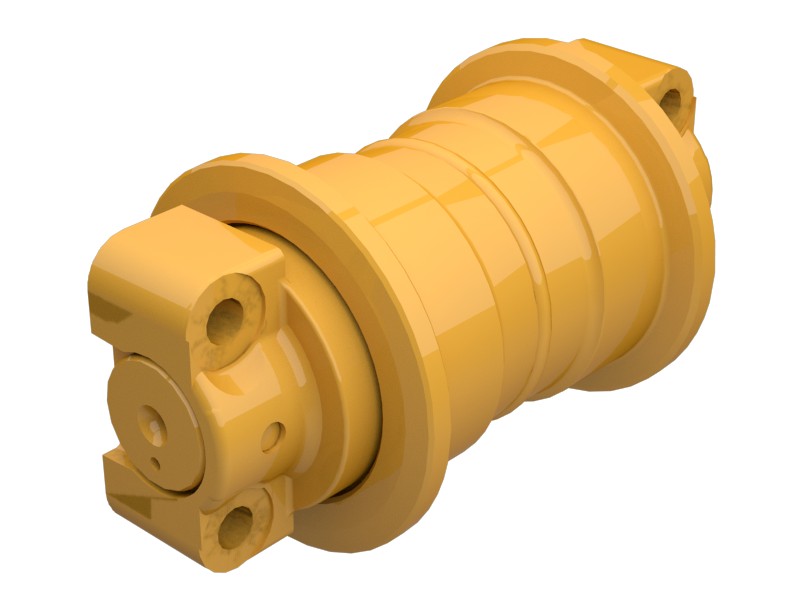

428-9769 Single Flange Track Roller Assembly
Cat® Track Roller Assembly (Single Flange)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The roller assembly guides the lower portion of the track belt between the front and rear idlers. Quality that fits the requirements of your equipment and meets your expectations.
Features
- Type: Single Flange
- Oil holes in the rim and collar
Applications
Undercarriage system for Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Link Outside Spacing | 215 mm (8.465 in) |
|---|---|
| Flange Type | SINGLE FLANGE |
| Mounting Bolt Axial Spacing | 319 mm (12.559 in) |
| Mounting Cap Bolt Thread Size | M20 |
| Mounting Width | 245 mm (9.646 in) |
| Shaft Outside Diameter | 63 mm (2.48 in) |
| Inside Spacing | 86 mm (3.386 in) |
| Shaft Length | 319 mm (12.559 in) |
| Tread Diameter | 155 mm (6.102 in) |
| Mounting Cap Bolt Hole Diameter | 21.5 mm (0.846 in) |
| Outer Flange Diameter | 190 mm (7.48 in) |
| Mounting Bolt Lateral Spacing | 106 mm (4.173 in) |
| Compatible Carrier Roller | No |
| Application | Oil Resistance |
| Undercarriage System | HD |
Compatible Equipment
- Excavators: 324D L, 326D L, 326D2, 326D2 L
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
