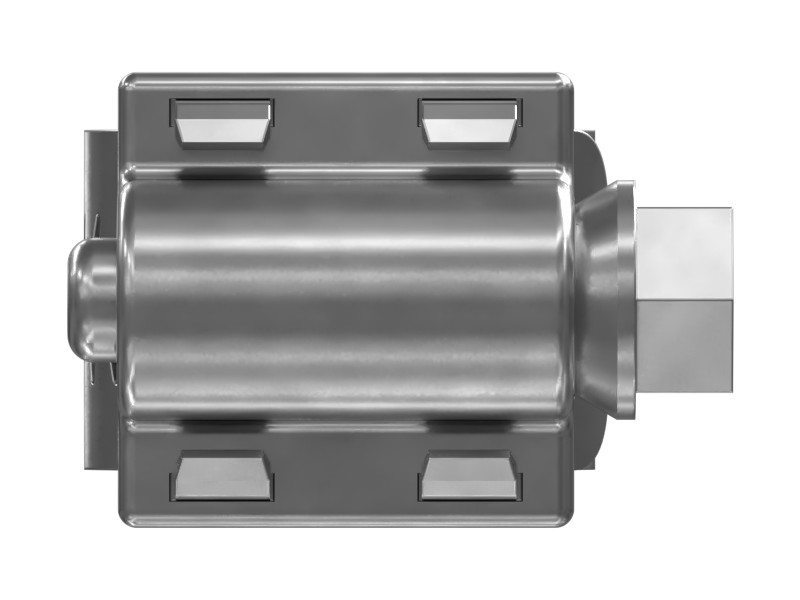

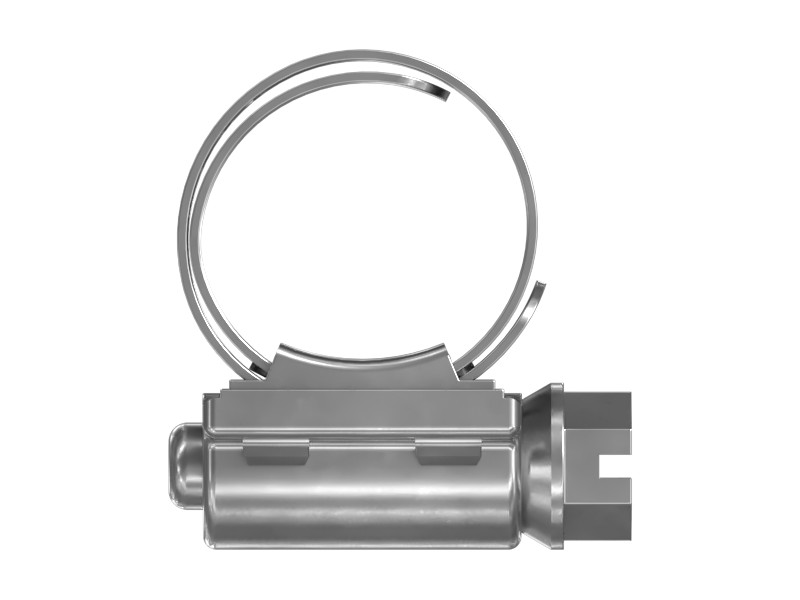

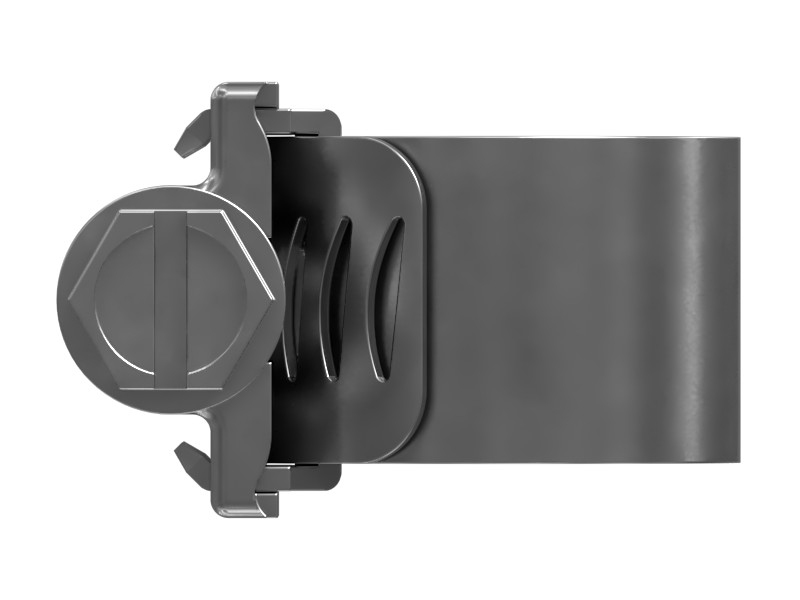

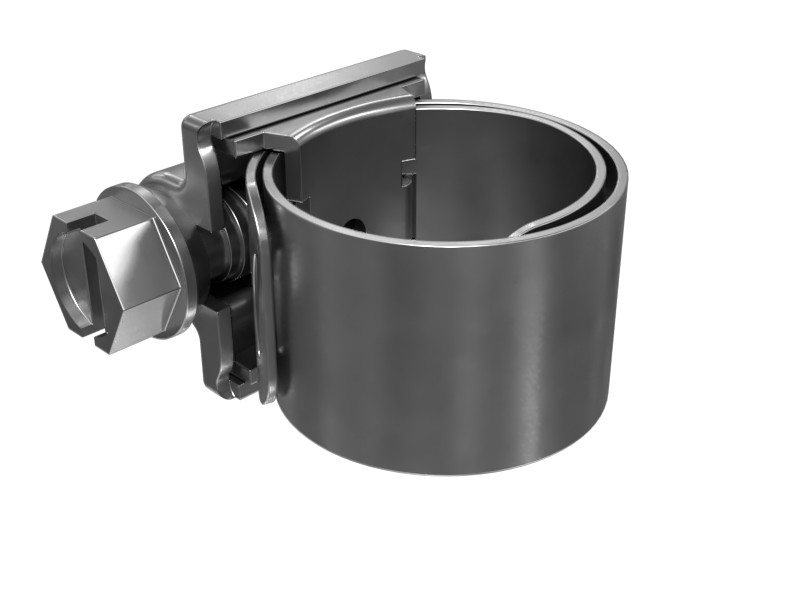

428-8808 0.58 mm Thick Worm Drive Hose Clamp
Cat® 0.58 mm Thick Stainless Steel Worm Drive Hose Clamp
Description
The worm-drive spring hose clamp is used to hold a hose in a fixed position. It has a saddle that fits the hose and a bolt or screw used to tighten the saddle down onto the hose, thereby holding it in a fixed position. They are commonly used where it is not possible or desirable to mount the pipe directly to a surface, such as when the surface is uneven or irregular.
Features
- Provides a 7.94 mm hex nut.
- For mounting hoses with a diameter of 20 mm.
- Built to exact specifications for durability, reliable performance, and outstanding productivity.
Applications
The worm-drive spring hose clamp is commonly used to hold or secure hoses in various systems, such as pressure sensor lines, engine oil lines, air lines, Diesel Exhaust Fluid lines, and coolant tanks.
Specifications
| Clamp Width | 14.3 mm (0.562 in) |
|---|---|
| Diameter Range | 11 – 20 mm (0.43 – 0.79 in) |
| Material Description | Stainless Steel |
| Material | Stainless Steel |
| Thickness | 0.58 mm (0.02 in) |
| Maximum Effective Diameter | 20 mm (0.787 in) |
| Width | 14.3 mm (0.56 in) |
| Minimum Effective Diameter | 11 mm (0.433 in) |
Compatible Equipment
- Generator Sets: C7.1
- Track Loaders: 973K, 826K, 982, 972
- Cold Planers: PL87, PM620, PM622, PL83, PL72
- Compactors: 834K, 825K, 824K, C9.3B, C13B
- Engines: C15, C13, C18, C175-16
- Excavators: 390F L, 374F, 349F L, 374, 340, 3516B, 3508B, 637K, 352F, 390F, 621K, 352, 374F L, 349, 350, 395, 345 GC, 336, 350MHPU, 336F L XE, 336F L, 336F LN, 336F, 335F LCR
- Asphalt Pavers: AD45
- Motor Graders: 16, 18, 14, 349 GC, 120, 16M3
- Wheel Excavators: MD6200
- Dozers: D6T, D8, D8T, D6T LGP, D7E, D9T, D7, D9
- Wheel Loaders: 950, 950 GC, 834, 988K, 926M, 980, 938M, RM500B, RM400, R1700K, 966, R2900 XE, 836
- Off-Highway Trucks: 745C, 770G, 730, 725C2, 725, 740, 740 GC, 772G, 745, 735
Additional information
| Machine Model | 120, 14, 16, 16M3, 18, 335F LCR, 336, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349, 349 GC, 349F L, 350, 3508B, 350MHPU, 3516B, 352, 352F, 374, 374F, 374F L, 390F, 390F L, 395, 621K, 637K, 725, 725C2, 730, 735, 740, 740 GC, 745, 745C, 770G, 772G, 824K, 825K, 826K, 834, 834K, 836, 926M, 938M, 950, 950 GC, 966, 972, 973K, 980, 982, 988K, AD45, C13, C13B, C15, C175-16, C18, C7.1, C9.3B, D6T, D6T LGP, D7, D7E, D8, D8T, D9, D9T, MD6200, PL72, PL83, PL87, PM620, PM622, R1700K, R2900 XE, RM400, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
