Description

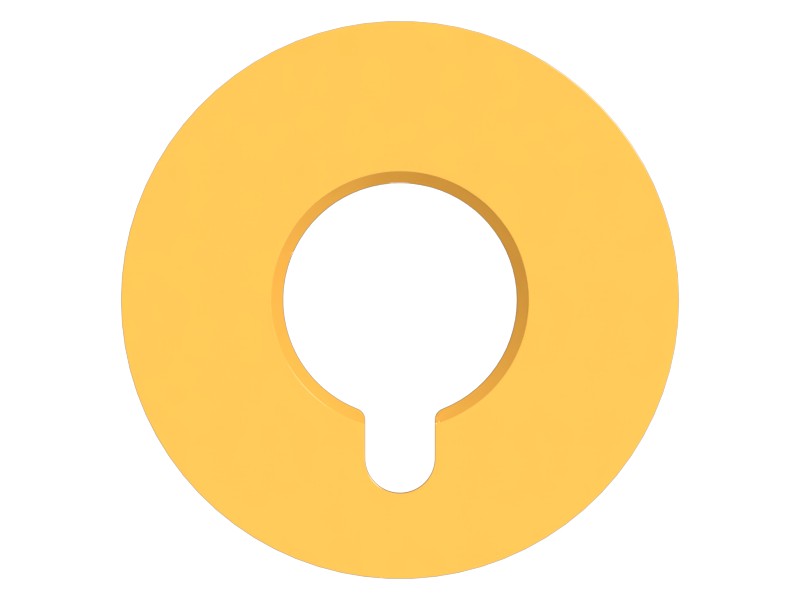

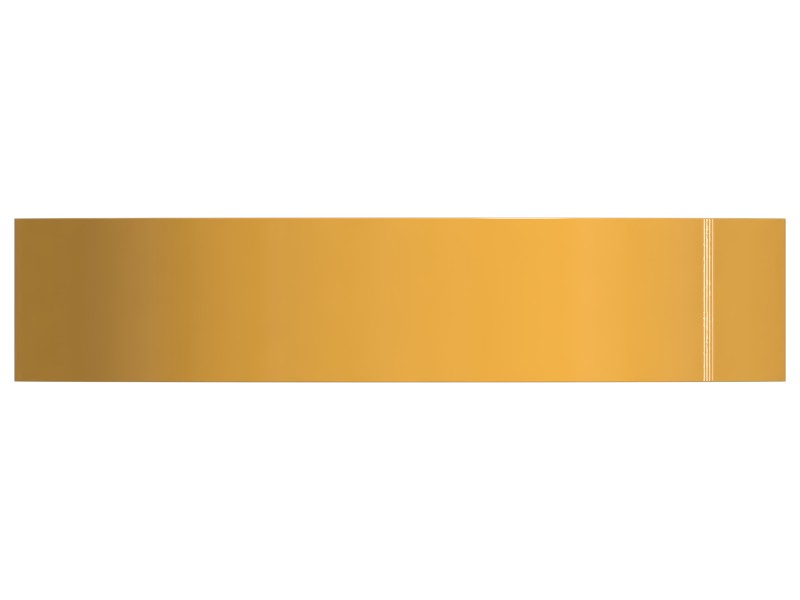

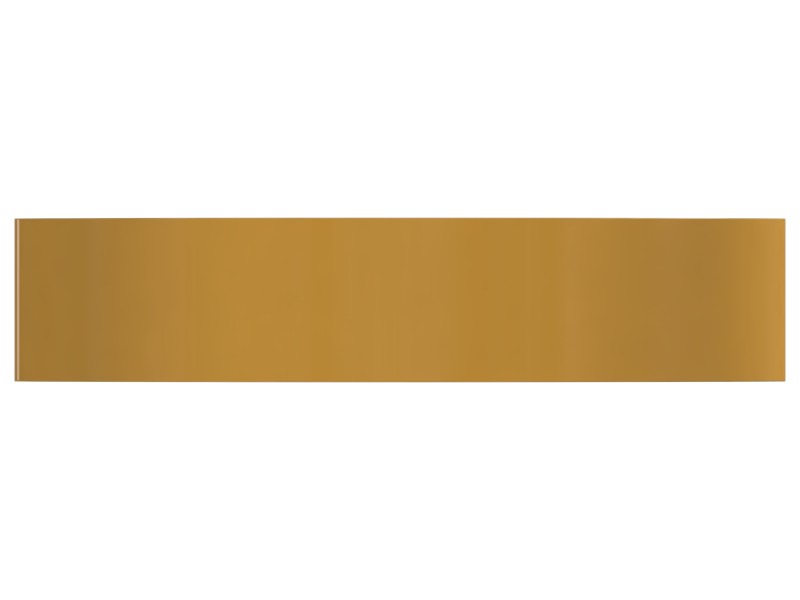

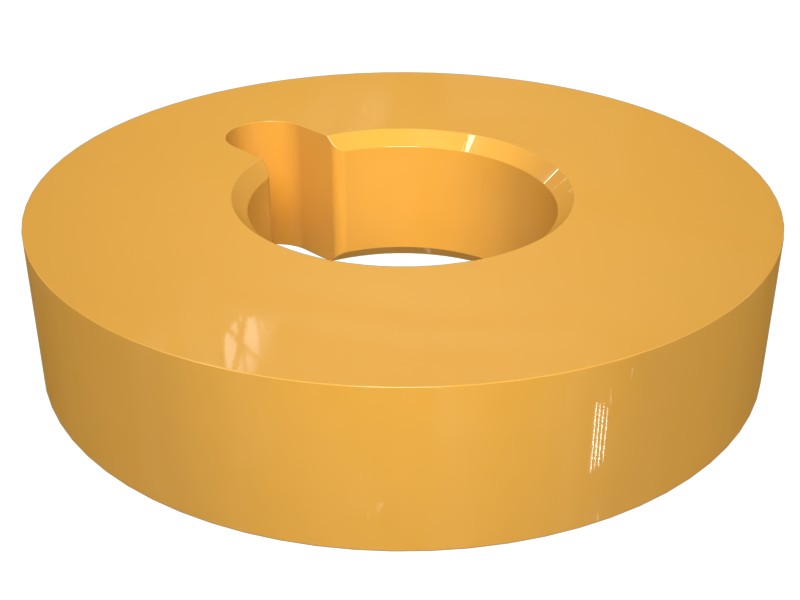

The shaft lock plate is a flat round component used to lock the shaft in place. It is typically made of metal and fits tightly against the end of the shaft. This plate is used in the bracket assembly to lock the fan drive shaft in place. It is designed with a slot that matches a hole in the shaft, allowing a spring pin to pass through and lock the plate to the shaft assembly.
Features
- Fits shafts with an outside diameter over 20 mm.
- Manufactured to exact specifications, built for rugged durability and reliable performance.
- Provides positive locking for the shaft.
Applications
The shaft lock plate is used to hold the fan drive shaft in place.
Specifications
| Inside Diameter | 20 mm (0.79 in) |
|---|---|
| Outside Diameter | 47.5 mm (1.87 in) |
| Hole Size | 6 (1X) mm (0.24 (1X) in) |
| Thickness | 10 mm (0.39 in) |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 773F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
