Description

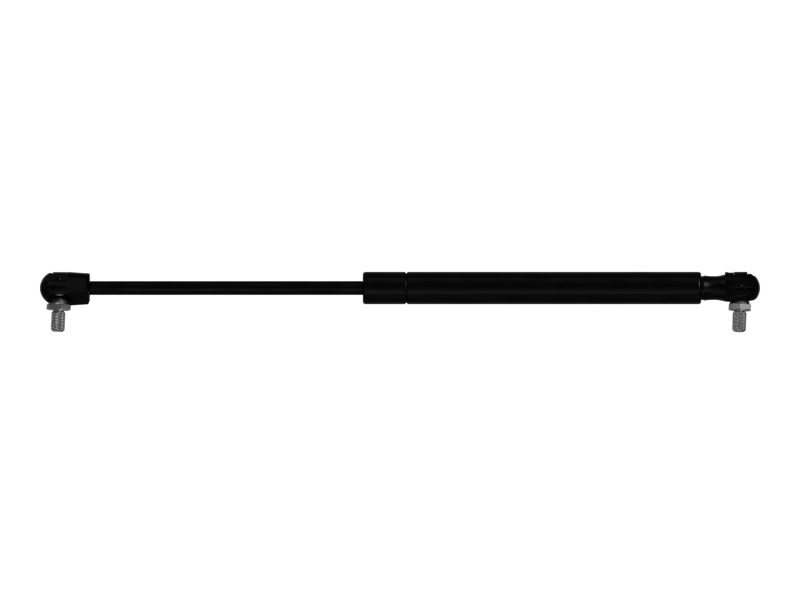

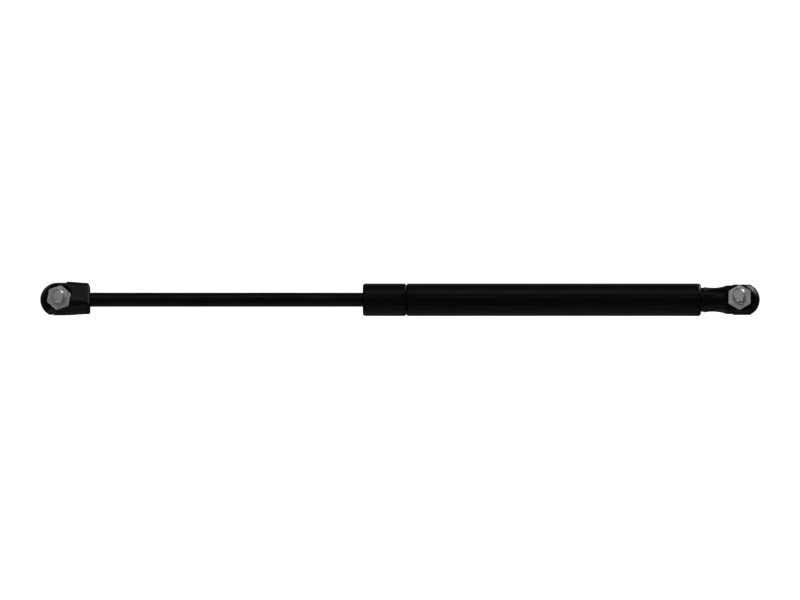

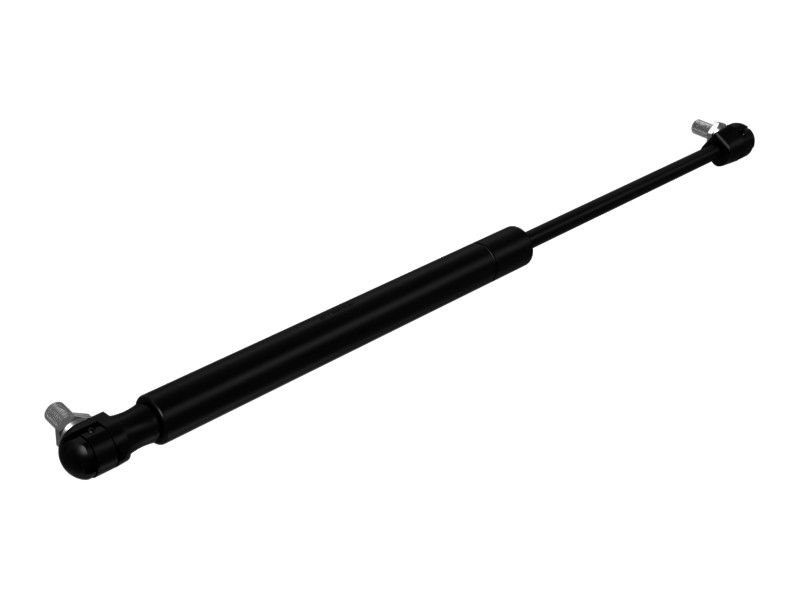

The gas spring group contains compressed gas in a cylinder and uses a piston to apply force.
Features
- Gas spring group
- Stroke: 160 mm (6.3 in)

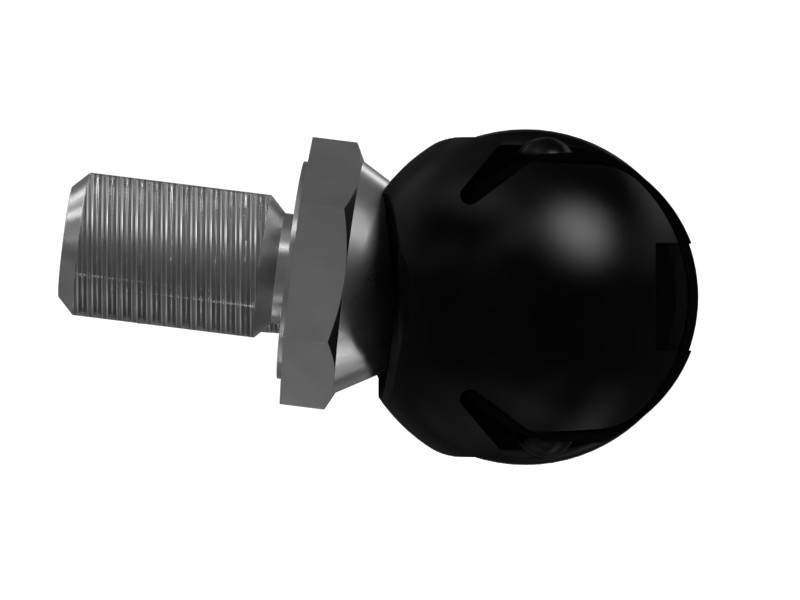

- Ball Head Thread Size: M8
- Extended Length: 403.5 mm (15.9 in)
- Compressed Length: 221.5 mm (8.7 in)
- Outside Diameter: 19 mm (0.75 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 403.5 Extended; 221.5 Compressed mm (15.9 Extended; 8.7 Compressed in) |
| Outside Diameter | 19 mm (0.75 in) |
Compatible Equipment
- Excavators: 416F2, 434F2
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
