Description
Cat® Ultra High Efficiency fuel filters are designed to meet the stringent fuel cleanliness requirements of applications with tighter component tolerances, higher engine temperatures and injection pressures, and strict emissions guidelines. Caterpillar testing proves that Cat Ultra High Efficiency fuel filters provide superior protection. Cat UHE filters are the best filters you can buy for your Cat equipment.
To maximize injector life, filtration must limit the size and number of particles that pass through the fuel filter. In terms of durability, injectors using Cat filter elements outlasted injectors tested with competitor filters. In addition, injector wear and fuel leakage were significantly reduced. See test results.
Cat fuel filters feature a robust one-piece canister design and a non-metallic center tube that is cleaner and stronger than metal, maximizing cleanliness and reducing potential leaks.
If you want to maximize productivity, choose filters from the equipment manufacturer – Cat filters are always the best choice for Cat machines.

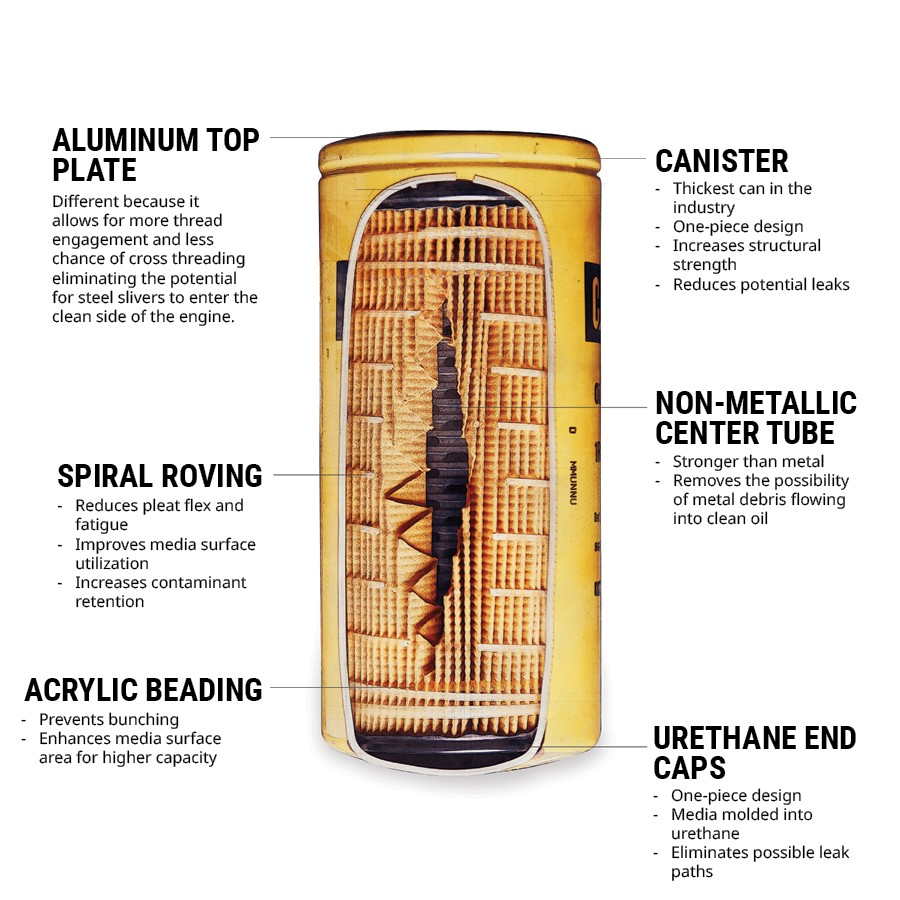

Our highly differentiated filters enable system components to perform as designed and help prevent premature efficiency loss and failure by:
- Proprietary filter media provides superior protection
- Acrylic beads prevent bunching
- Spiral roving improves pleat stability
- Nylon center tube prevents metal contamination
- Molded end caps prevent leakage
Specifications
| Efficiency Rating | Ultra High Efficiency |
|---|---|
| Thread Size (in – TPI) | 1 3/8-16 in |
| Efficiency Category | Ultra High Efficiency |
| Material | Carbon Steel |
| Filter Type | Spin-On |
| Diameter | 136.1 mm (5.358 in) |
| Flow Direction | Out-to-In |
| Length | 309.4 mm (12.181 in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C
- Track Loaders: 990K, 992, 993
- Wheel Excavators: MD6310, MD6250
- Engines: C32, C27, C175-16
- Dozers: D11T, D10, D11R, D11, D10T2, D10R, D10N, D10T
- Excavators: 6030, 336D2 L, 3512C, 6015, 6040, 336D2 XE, 336D2 GC, 6020B, 340D2 L, 6015B, 374F L, 336D2, 390F L
- Wheel Loaders: 992K
- Off-Highway Trucks: 793F, 797F, 796 AC, 798 AC, 789D, 785D, 793, 775G, 785, 777, 789, 794 AC, 773
- Asphalt Pavers: AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 340D2 L, 3512B, 3512C, 3516C, 374F L, 390F L, 6015, 6015B, 6020B, 6030, 6040, 773, 775G, 777, 785, 785D, 789, 789D, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 990K, 992, 992K, 993, AD63, C175-16, C27, C32, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
