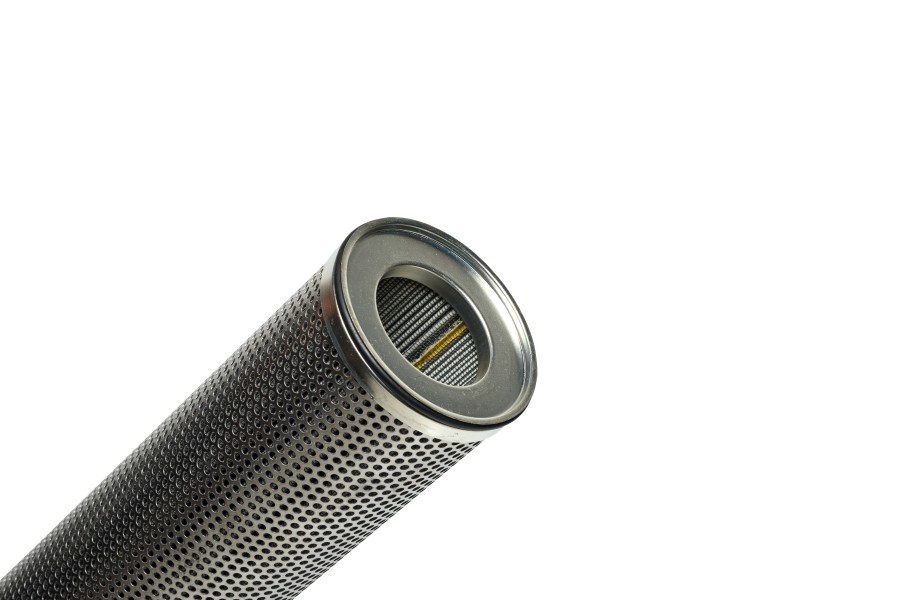

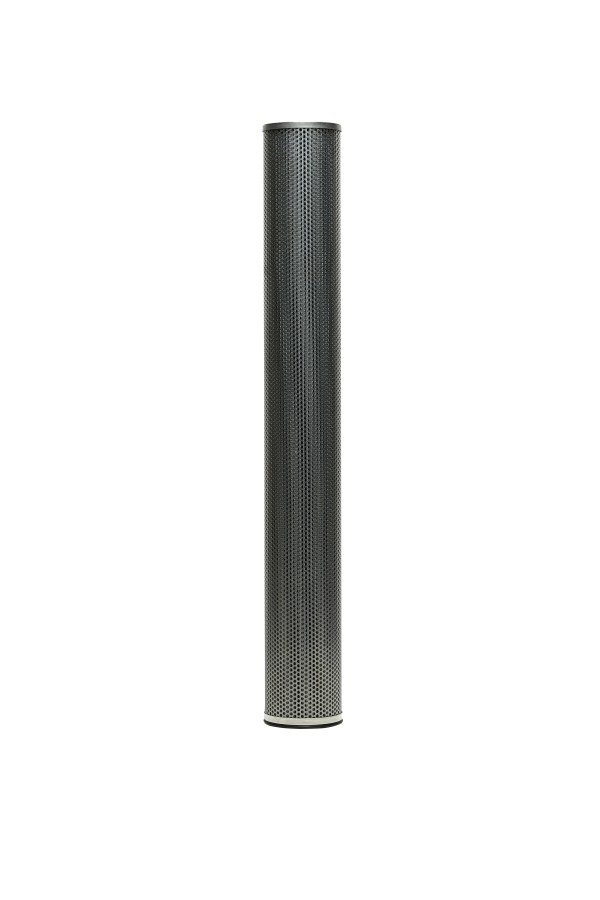

417-6198 Hydraulic/Transmission Filter
Protect your machine with Cat® parts hydraulic transmission oil filters. 417-6198 is an Ultra High Efficiency power train filter that provides contamination protection to help improve the overall performance of your Cat® machine.
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Smart Cat® equipment owners choose Genuine Cat filtration products
Protect their machines and the businesses they depend on. Cat Ultra High Efficiency (UHE) hydraulic and transmission filters use synthetic media that removes most fine particles, ensuring optimal contamination control in the most demanding applications.
While choosing a filter may not seem like a major decision, the wrong filter can accelerate equipment wear and damage. For example, Cat hydraulic filters isolate contaminants and abrasives within high-pressure hydraulic systems to keep them from wearing tight-tolerance systems. On the other hand, our transmission filters have a lower differential pressure than hydraulic elements, so the machine spends less time in bypass during cold starts.
Because we know your equipment better than anyone, you can also count on us to recommend the right filter every time. When you're ready to switch to Cat filters, contact MECHSC or search by part number at catfiltercrossreference.com.
Features
Cat UHE filters trap contaminants and debris that can damage transmission and power train systems. Additional benefits include:
- Proprietary filter media provides superior protection
- Improves debris retention
- Improved collapse resistance
Specifications
| Material | Carbon Steel |
|---|---|
| Efficiency Category | Ultra High Efficiency |
| Diameter | 86.2 mm (3.394 in) |
| Flow Direction | Out-to-In |
| Filter Type | Cartridge |
| Length | 652.7 mm (25.697 in) |
Additional information
| Part Source | Genuine OEM |
|---|
