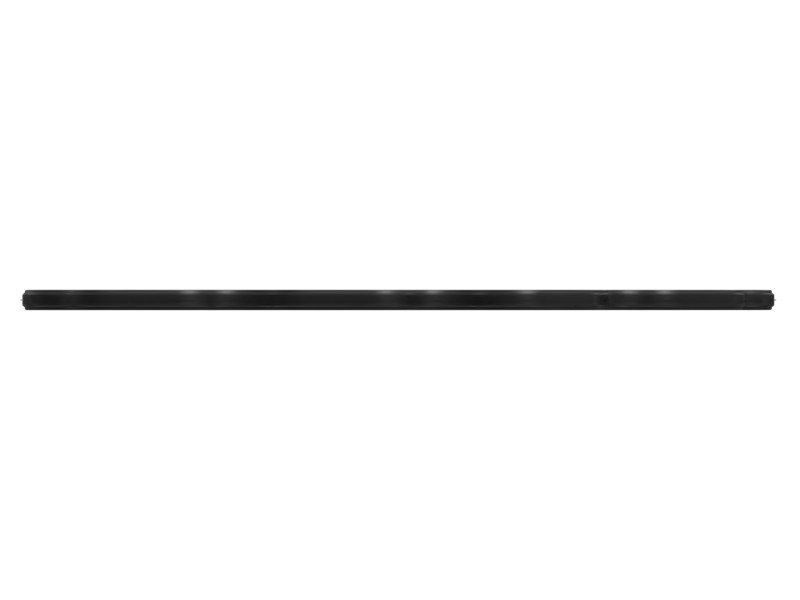

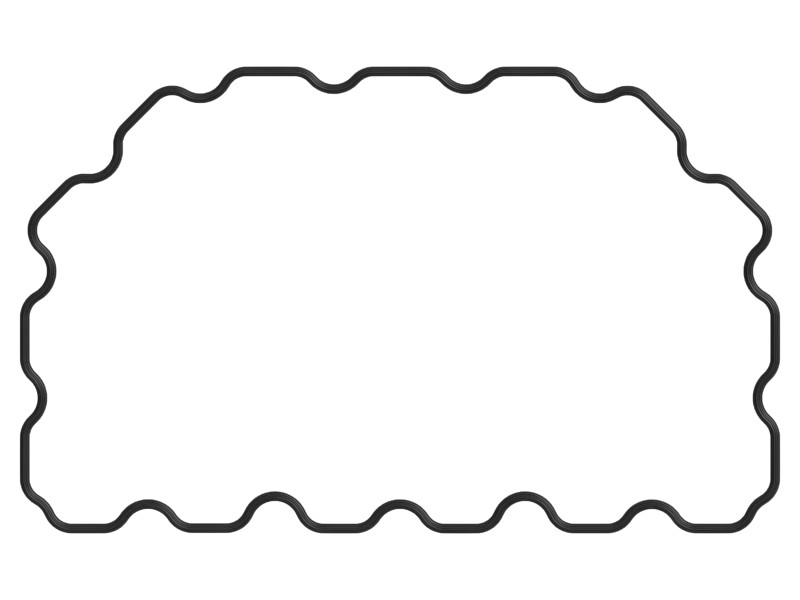

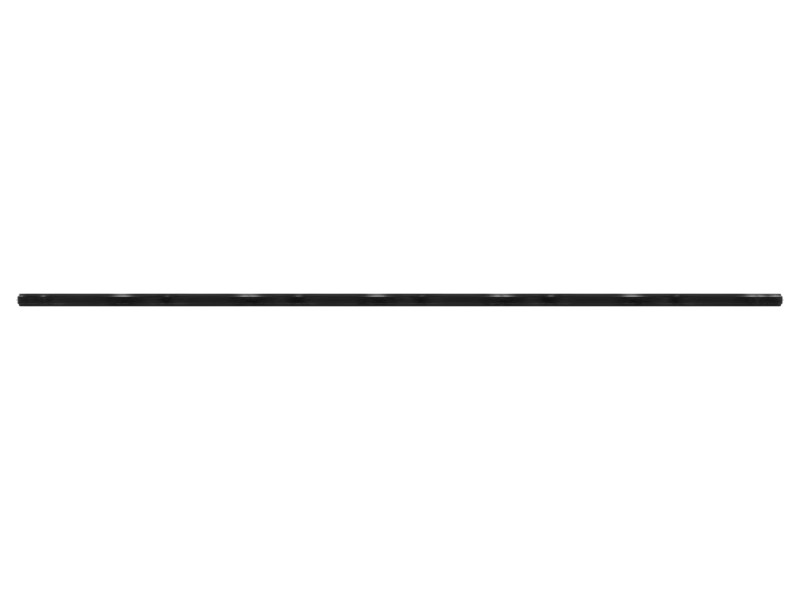

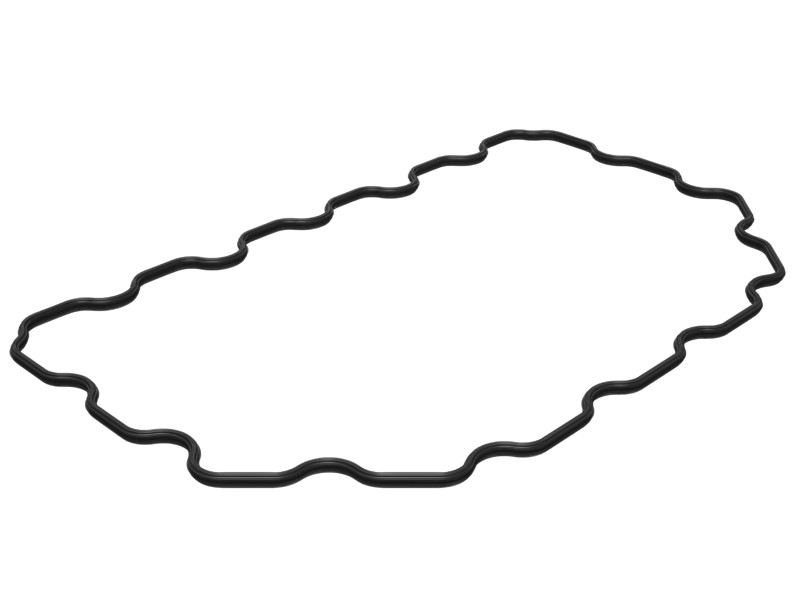

416-0654 Transmission Cover Press-In Seal
Cat® transmission cover pressure gasket ensures excellent performance and fluid sealing.
Description
Leakage at the connection point Description:
Press-in-place gaskets are used to stay fixed in a groove to improve the joint and prevent leakage and contamination. These are custom designs specific to application requirements.
Features
Push-in gaskets are made of materials suited to the fluids, temperatures, and pressures in Cat® engines and machines. These materials are wear-resistant and extrusion-resistant, providing the seal with outstanding resistance to compression set.
Cat® sealing systems go through a reliable design, testing and validation process. Protect your investment with the latest Genuine Cat® gaskets.
Applications
Press-in seals are widely used in many static joints on Cat® engines and machines. These are specifically designed for inverted or vertical equipment.
Specifications
| Cross-Section Height | 7.3 mm (0.29 in) |
|---|---|
| Cross-Section Width | 4 mm (0.16 in) |
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
| Material Description | HNBR rubber has a service temperature range of -40 to 115C and is resistant to fuel, oil and lubricants, while providing excellent abrasion and cut resistance. |
Compatible Equipment
- Cold Planers: PL83, PL87, PL72
- Dozers: D8, D8T, D6T, D8R, D6R II, D6R LGP, D6T LGP, D6R, D6R XL, D7
- Excavators: 3508B
