416-0625 1 7/16″ X 1 1/4″ Threaded Refrigerant Coupling
Cat® 1 7/16" X 1 1/4" threaded refrigerant self-sealing coupling used in coolant and heater lines.
Description
Cat® fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Wetted parts
- Meets or exceeds industry-standard part performance and provides a leak-free connection

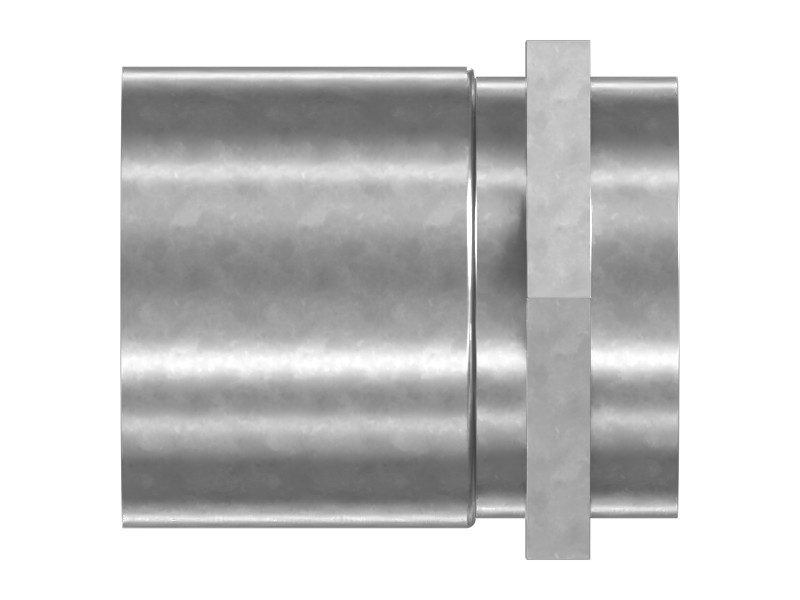

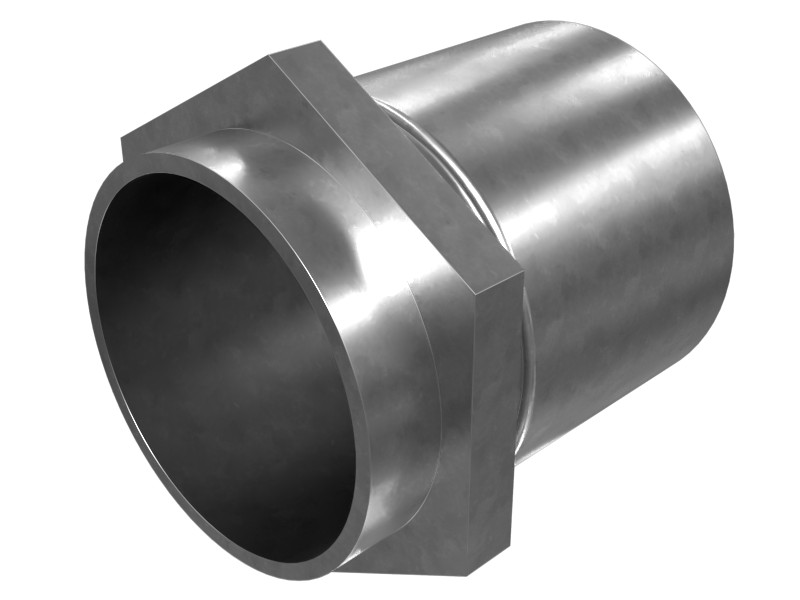

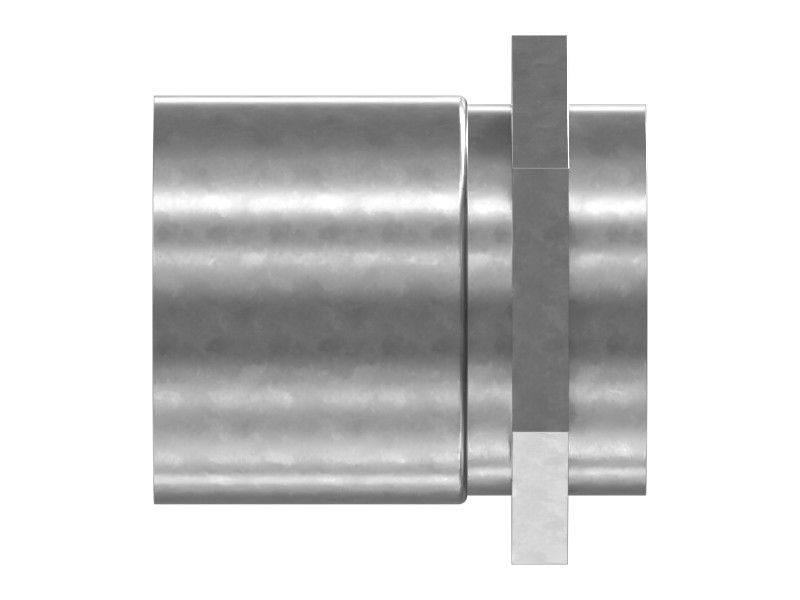

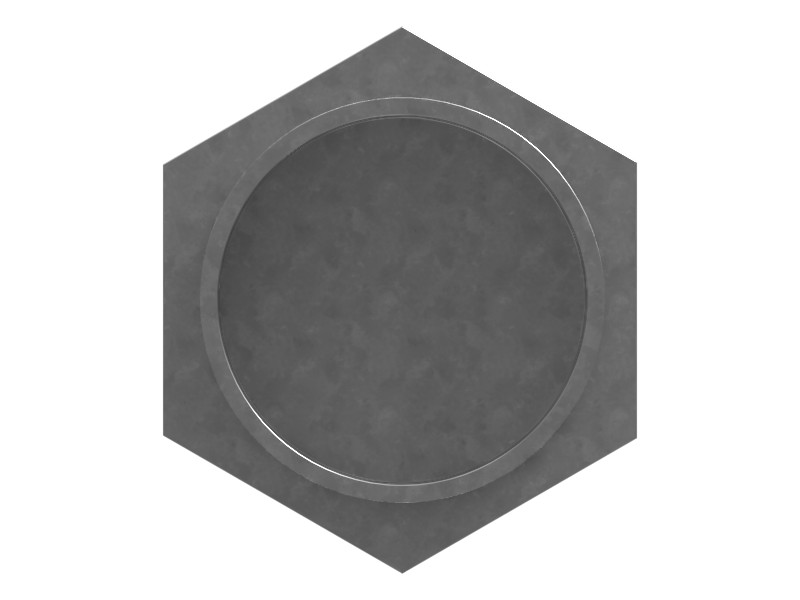

- The image provided is for reference only. The adapter construction may differ slightly from the illustration, but this part is interchangeable with the OEM part.
Applications
The adapter is designed to connect fluid-carrying hoses and rigid tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Type | Straight |
| Thread | 1-1/4-18; 1-7/16-16 |
| Material Description | Steel |
| Length | 44 mm (1.74 in) |
| Hex Size | 41 mm (1.63 in) |
| Connector Type | None |
Compatible Equipment
- Excavators: 6040, 6030
- Off-Highway Trucks: 777D, 797F, 777E, 793D, 793F, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
