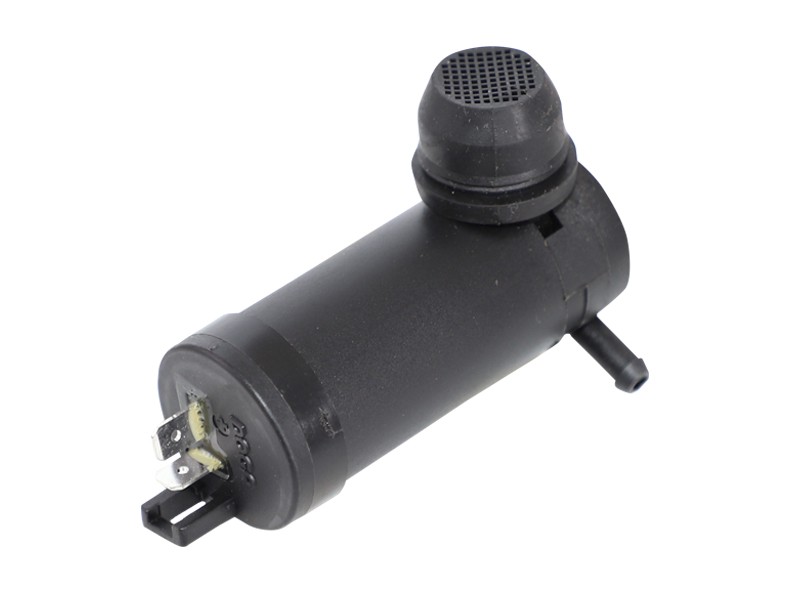

416-0022 Pump Group
Cat® Pump Group (Washer Fluid) (12 V)
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat windshield wipers clear rain and debris so the operator can see the surroundings clearly in extreme conditions. Because the wiper is a safety device, it should be inspected regularly and replaced as needed so the equipment performs as intended.
Features
- Nylon Pump
- Male tab terminal with label
- Flow Rate 2 L/min
Applications
The Cat pump pressurizes wiper fluid and delivers it from the reservoir to the window, enhancing cleaning capability. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Operating Pressure | 220 kPa (32 psi) |
|---|---|
| Connector Type | Blade Terminal |
| Overall Length | 40 mm (1.6 in) |
| Overall Height | 85.5 mm (3.4 in) |
| Outside Diameter | 30.5 mm (1.2 in) |
| Material Description | Nylon |
| Material | Polyamide Plastic |
Additional information
| Part Source | Genuine OEM |
|---|
