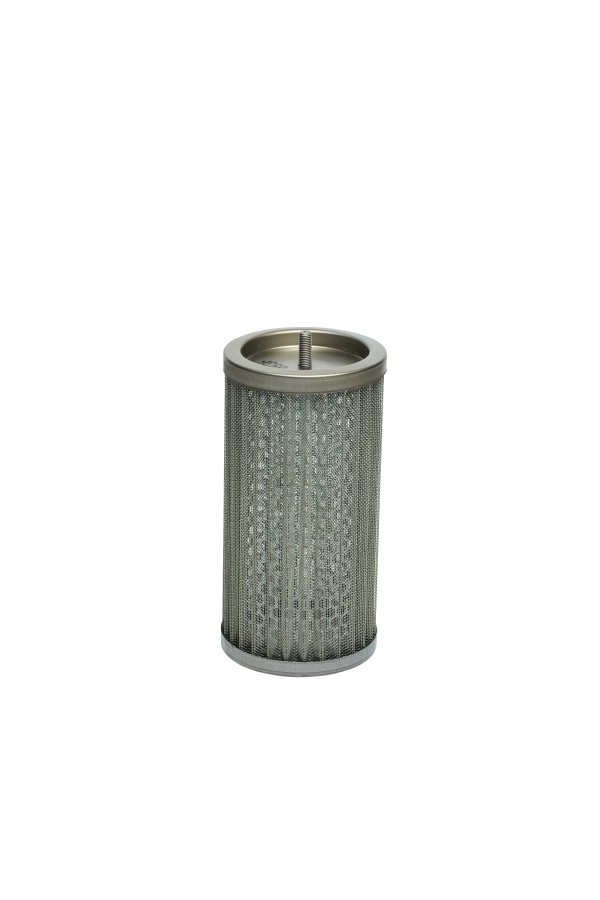

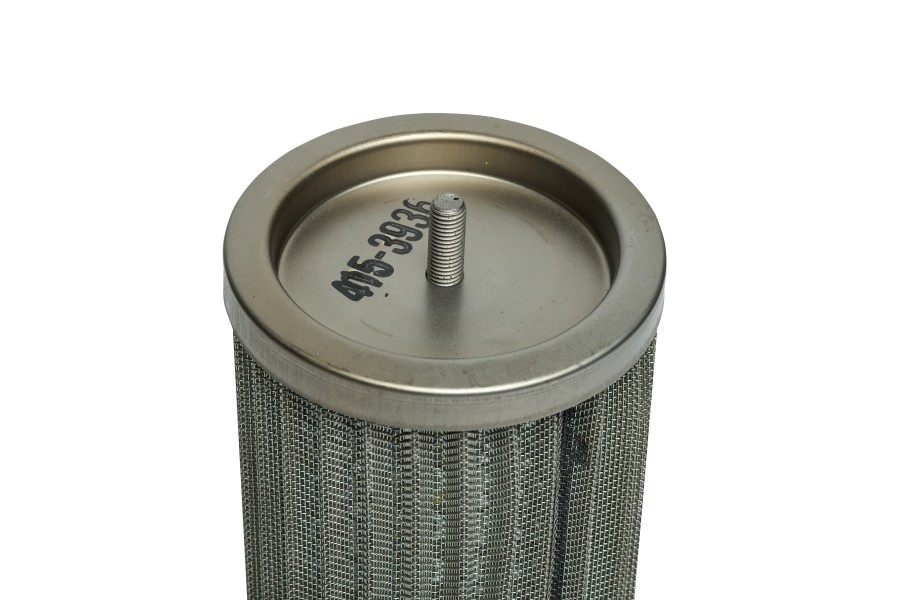

415-3936 199.8mm Long Engine Oil Pan Suction Screen
Cat® 199.8mm Long Engine Oil Pan Suction Screen
Description
The engine oil pan suction screen is located inside the engine oil pan. It is designed to prevent debris, contaminants and other foreign particles from entering the engine lubrication system. The suction screen sits at the bottom of the oil pan and is connected to the oil pump. When the engine is running, the oil pump draws oil through the screen and pumps it to the engine components that require lubrication.
Features
- Helps improve engine performance by minimizing friction between components.
- Ensures consistent oil pressure.
Applications
The engine oil pan suction screen filters impurities from the oil and protects the engine's moving parts from damage.
Specifications
| Material | Alloy Copper |
|---|---|
| Length | 199.8 mm (7.866 in) |
| Diameter | 94.8 mm (3.732 in) |
| Height | 190 mm (7.48 in) |
| Material Description | Steel |
| Outside Diameter | 94.75 mm (3.73 in) |
Compatible Equipment
- Generator Sets: 3516C, C4.4, 3512B, 3512E
- Track Loaders: 995, 994K
- Excavators: 3516E, 3512C, 3508B, 3516B, 6060
- Off-Highway Trucks: 785, 789D, 785D, 793, 777D, 789, 793D
