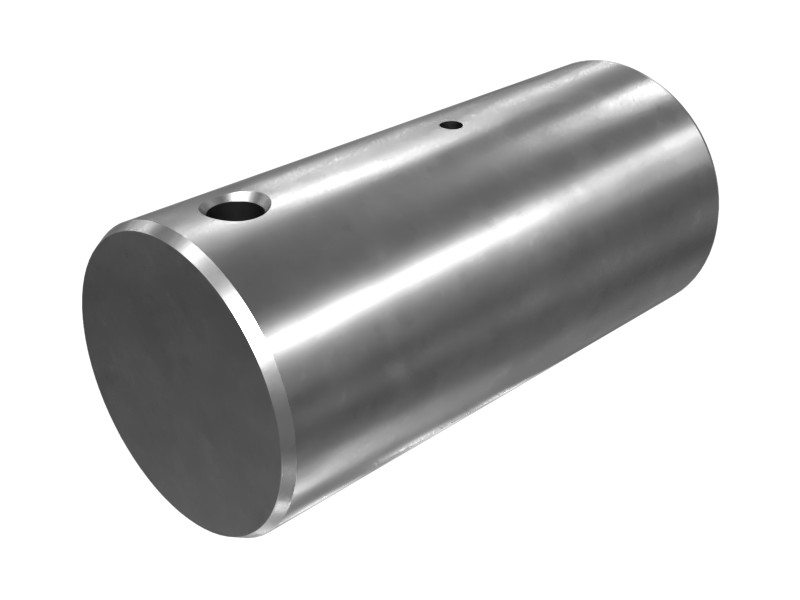

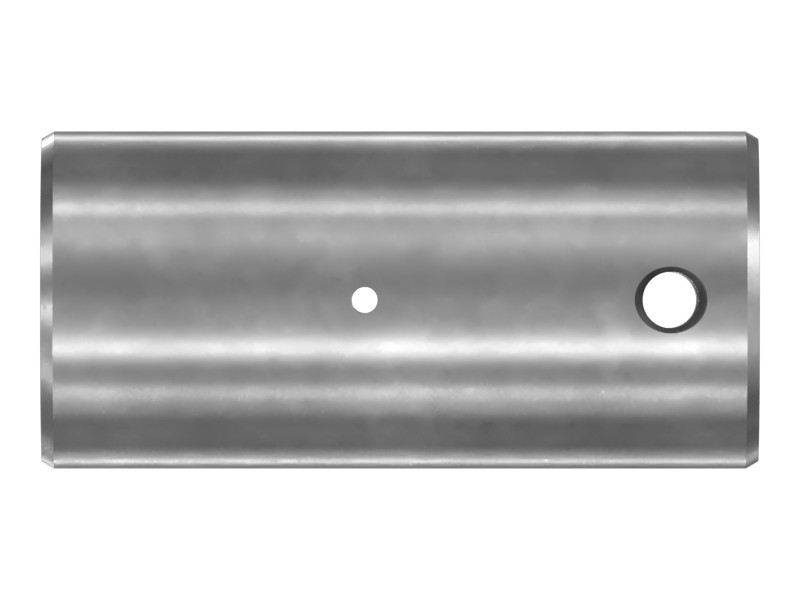

3T-9431 Transmission Planetary Shaft
Cat® transmission planetary shafts transfer power and torque in the planetary gear system of the powertrain, enabling smooth shifting.
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat planetary shafts are designed to control the speed, direction, and force transmitted while Cat machines operate.
Features
- Hardened Steel Planetary Shaft with Plug
- Outside Diameter: 38.095 mm (1.499 in)
- Length: 81 mm (3.188 in)
- Chamfered end
Applications
Cat planetary shafts are used in planetary transmission assemblies to transfer engine power to the powertrain. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Outside Diameter | 38.095 mm (1.499 in) |
| Overall Length | 81 mm (3.188 in) |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Excavators: 3512C
- Off-Highway Trucks: 777E, 777, 777D
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
