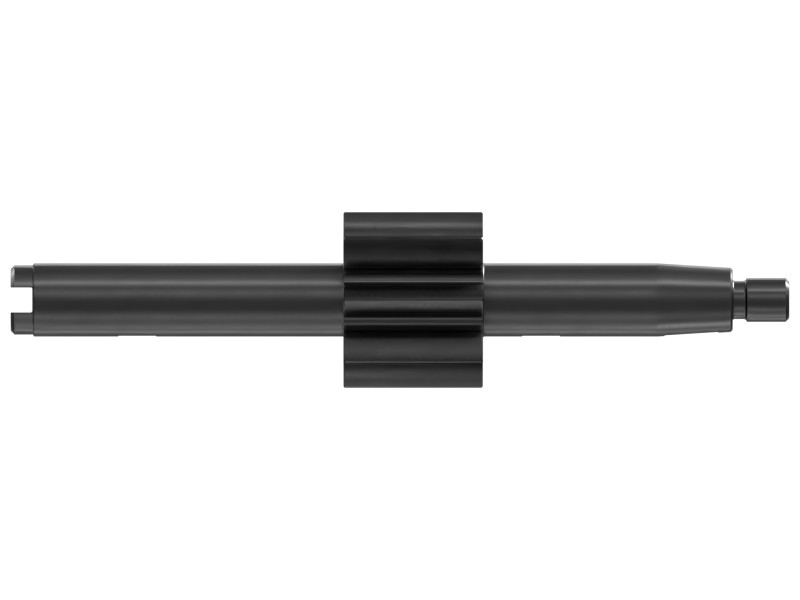

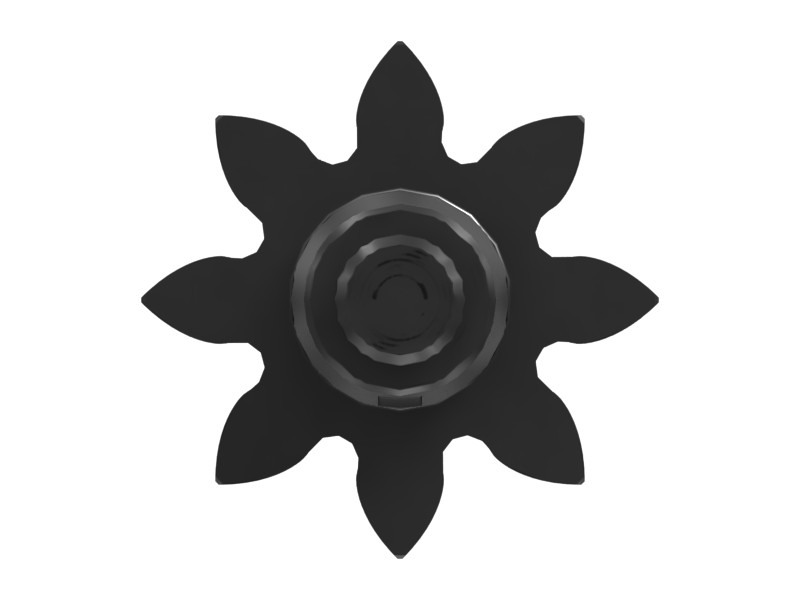

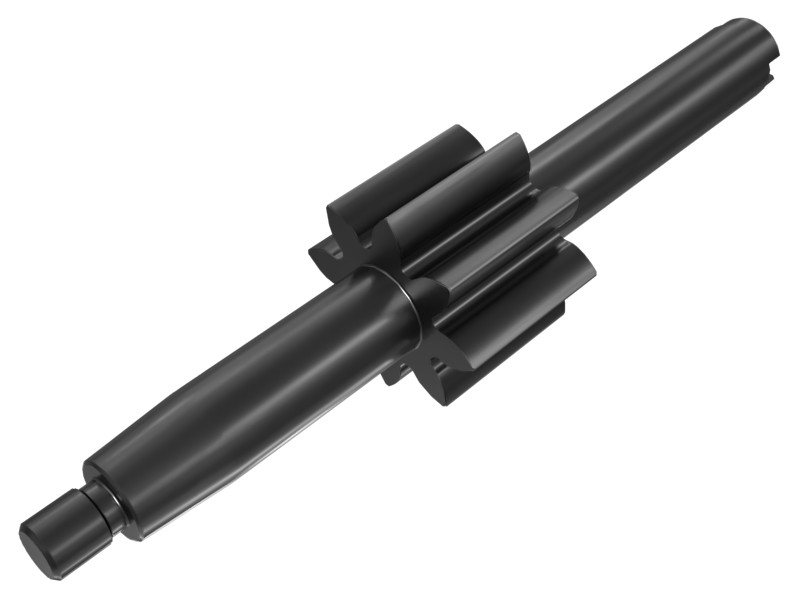

3T-8093 Oil Pump Gear Group
Cat® oil pump gear group, 8 teeth, pitch diameter: 61.205 mm, shaft diameter: 31.7 mm
Description
Part number 3T-8093 is a shaft and gear group used to drive internal gear pump components. One end of the shaft is threaded for mounting the external pump drive gear.
Cat gears are made from premium materials selected strictly to technical specifications that match the loads in Cat machines. They are produced with special (in some cases proprietary) heat treatment processes, including case carburizing, nitriding, and induction hardening. Cat gears offer industry-leading power density (the power a gear can transmit relative to its size) and are designed with reusability in mind. As a result, they are more durable and effectively reduce overall machine operating costs.
Features
- Oil pump shaft with gear
- Spur Gear Teeth: 8
- Pitch Diameter: 61.205 mm (2.40 in)
- Shaft Diameter: 31.7 mm (1.25 in)
- Shaft Thread: 3/4-16
- Outside Diameter: 76.5 mm (3.01 in)
- Length: 340 mm (13.4 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Number of Teeth | 8 |
|---|---|
| Shaft Diameter | 31.7 mm (1.25 in) |
| Outside Diameter | 76.5 mm (3.01 in) |
| Length | 340 mm (13.4 in) |
Compatible Equipment
- Off-Highway Trucks: 777D, 777, 777E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
