Description

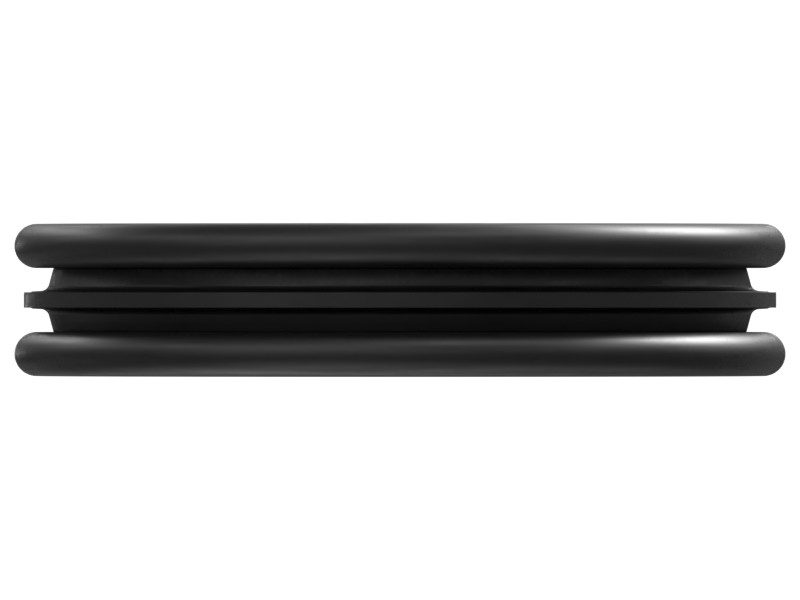

Cat metal face seals are used in wear applications of heavy machinery operating in extremely severe conditions, protecting internal working parts prone to heavy wear, such as bearings and gears. The seal includes two metal seal rings and two rubber toric rings. The toric rings provide proper pressure on both sides of the metal seal rings. Mechanical face seals are self-aligning seals that compensate for shaft eccentricity or misalignment.
Features
- Class D seal with silicone (VMQ) curved ring
- Seals in oil and keeps abrasives out
- Simple, reliable design
- Maintenance-free
- Easy to assemble
- Cost effective
- Long service life
Applications
Typical applications include large axles, wheels, and final drives. Suitable for applications with extremely high temperatures (wet disc brake systems) or extremely low temperatures (arctic environments). Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 700 mm (27.6 in) |
|---|---|
| Face Material | Silicone Resin |
| Ring Cross Section | 13 mm |
| Ramp Angle | 15 |
| Ring Material Description | Formed |
| Inside Diameter | 667.58 mm (26.3 in) |
| Flange Outside Diameter | 704.66 mm (27.7 in) |
| Housing Diameter | 703.28 mm (27.7 in) |
| Temperature | -55 to 150 °C (-67 to 302 °F) |
Compatible Equipment
- Wheel Loaders: 950, 950H, 950L, 962L
- Off-Highway Trucks: 730, 725
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
