Description

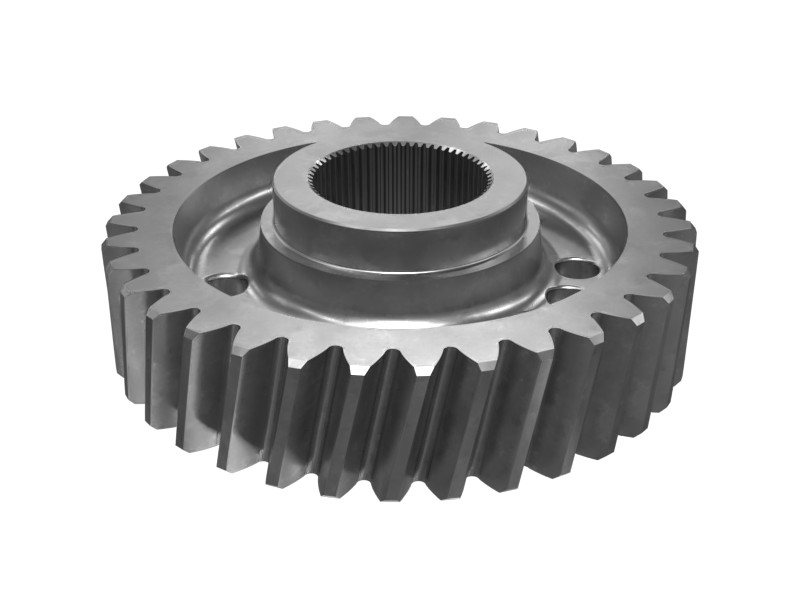

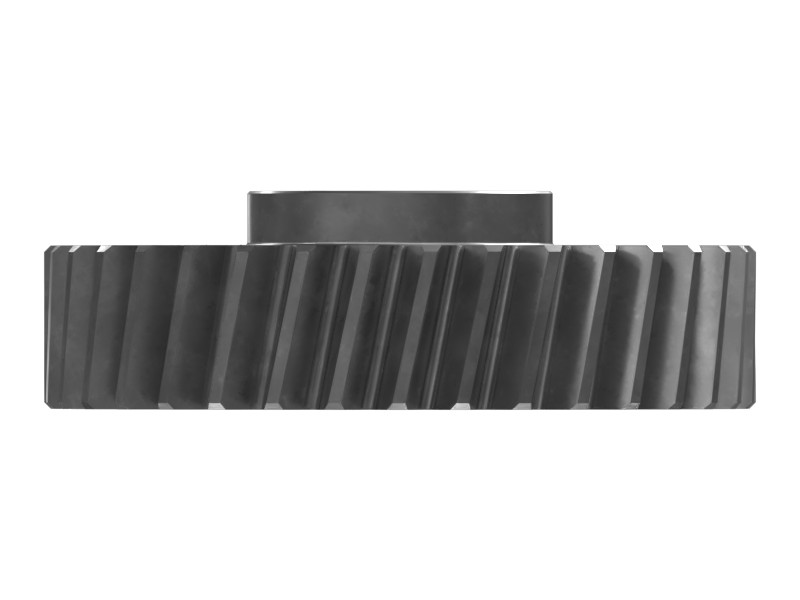

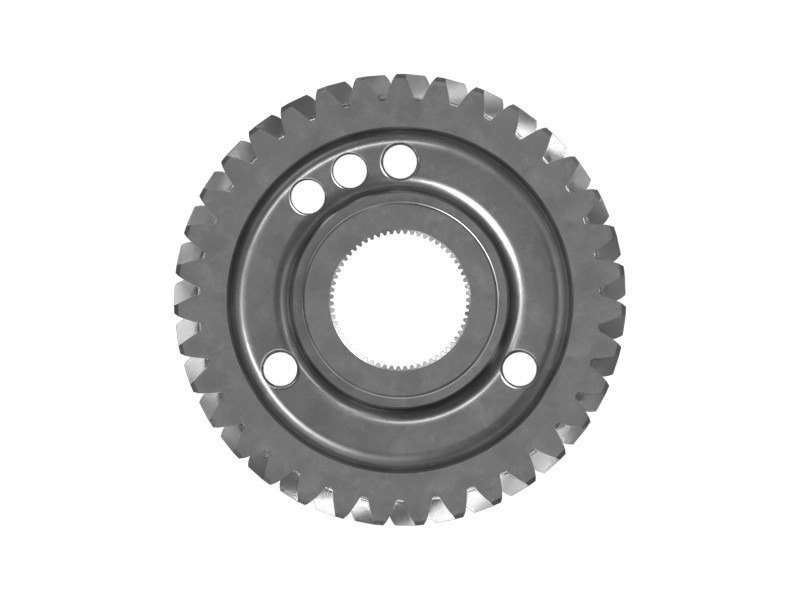

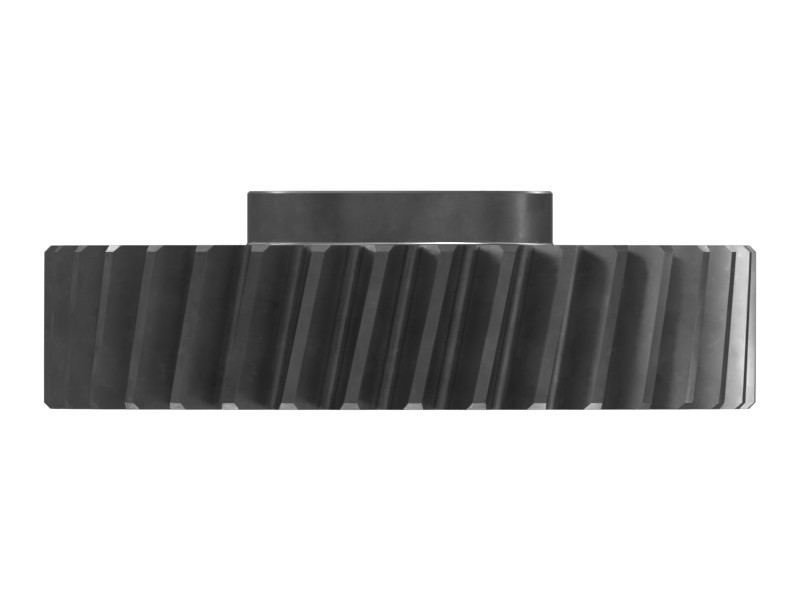

The output drive gear, also called the final drive gear, is designed with a specific number of teeth that mesh with the teeth of other gears or components in the drive system. By meshing with these gears, it transmits rotational force and torque to propel the vehicle forward or backward, depending on the gear selected and the direction of engine rotation.
Features
- Manufactured to exact specifications, built for rugged durability and reliable performance.
- Provides C59 HRC Rockwell hardness to avoid causing wear to the transmission.
Applications
The output drive gear is used to transfer power and torque from the reducer or transmission to the output shaft or wheels, determining the speed and direction of rotation.
Specifications
| Height | 101.6 mm (4.000 in) |
|---|---|
| Inside Diameter | 98.88 mm (3.892 in) |
| Material Description | Steel |
| Outside Diameter | 333.25 mm (13.120 in) |
Compatible Equipment
- Track Loaders: 824G, 824C, 826G, 826H, 834H
- Compactors: 834K, C9.3B
- Excavators: 3508B
- Wheel Loaders: 986K
- Asphalt Pavers: AD30, AD45
Additional information
| Machine Model | 3508B, 824C, 824G, 826G, 826H, 834H, 834K, 986K, AD30, AD45, C9.3B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
