Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

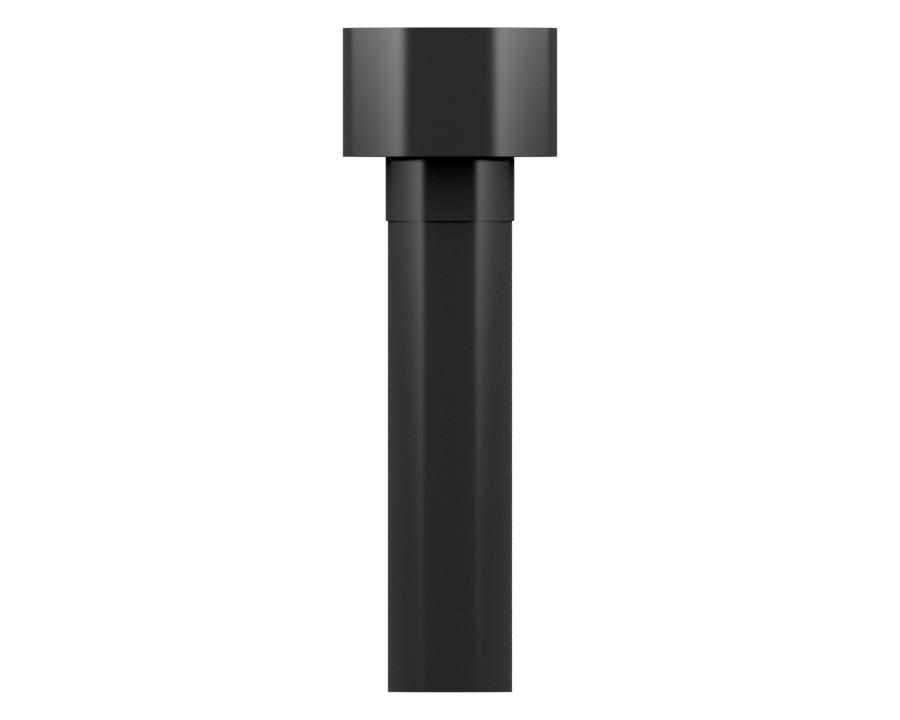

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Locking Feature | None |
| Thread Size | M6 mm (0 in) |
| Thread Direction | RH |
| Coating | Zinc Phosphate + Oil |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M8 X 1 mm |
| Bolt Length | 25 mm (0.984 in) |
| Handle Length | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C7.1, 3512E, C4.4, G3516, C9, C3.3DE50E0
- Track Loaders: 953, 953K, 963, 824C, 963K
- Cold Planers: PL72, PL61, PM620, PL87, PM622, PL83, PM-200
- Compactors: CB-64B, CB2.5 GC, CB2.7 GC, CC2.7 GC, CS12, CS11, CW-34, CB16, CB2.5, CB2.7, CB2.9, CB-66B, CS-533C, CB-44B, C13B, CS-583D, 814, 815, C9.3B, CB15, CB13, CB10, C-15, C-9, CS-54B
- Engines: C13, C15, C6.6, C11, C175-16, C18
- Excavators: 303.5E2 CR, 307E, 3126, 330, 305C CR, 320D, 308E, 303C CR, 303, 305, 306E, 390F L, 3456, 374F, 306E2, 313, 305E2 CR, 316 GC, 313 GC, 374, 349F L, 336E L, 320 GC, 336F LN, 323, 336F, 320B, 336E, 336, 325B L, 314D LCR, 336D2 XE, 336 GC, 329E L, 325, 315, 336F L, 320C, 336F L XE, 326, 365B L, 320, 314D CR, 340, 323 GX, 320 GX, 330 GC, 352, 350, 312 GC, 315 GC, 333, 320D L, 335, 320D3, 345 GC, 355, 3508B, 6020B, 3101, 416F2, 395, 313 GX, 316 GX, 312 GX, 349, 6015, 333 GC, 326 GC, XQP200, 326GC, 330 L, 312F, 320E, 315F LCR, 323GC, 336E H, 336E LH, 314C, 313F L, 6040, 432, 6060, 352F, 365B, 390F, 6015B, 349E L VG, 345B, 349E, 374F L, 349E L, 385B, 434F2, 428F, 323 GC, 350MHPU, 329E, 312E, 330GC, 312E L, 325B, 335F LCR, 637E, 350 L, 311B, 336E LN
- Asphalt Pavers: AP655F, AP655F L, AD30, AD45, AP-600D
- Skid Steer Loaders: 24, 262D3, 239D3, 259D3, 299D3 XE, 249D3, 236D3, 242D3, 272D3, 272D3 XE
- Motor Graders: 160K, 14M, 140G, 120H, 12K, 140K, 18, 16M, 12H, 14, 16, 140 GC, 316F, 120, 140H, 349 GC, 3606, 16M3
- Wheel Excavators: M322D, M320, M313D, M315D, M317D2, M315GC, M315, M315D2
- Dozers: D7R II, D4E, D6N, D6R, D6M, D7H, D6R III, D5M, D5H, D9T, D5K2 XL, D7G, D6T, D6R II, D6K2, D7E, D3K2 LGP, D10N, D4, D7R, D5N, D8T, D6G, D11T, D8N, D6R XL, D10R, D11R, D10T, D11N
- Compact Track Loaders: 299D3
- Mini Excavators: 303.5E, 307E2, 303.5C, 305.5E2, 305.5E, 305.5, 307, 306, 305E2, 308, 305.5 GC, 303.5D, 308E2
- Wheel Loaders: 962G, 950 GC, RM400, 950H, M314, 938M, 926M, 950, 950G, 938K, 928G, 966F, 924K
- Off-Highway Trucks: 793D, 794 AC, 793, 797F, 796 AC, 740B, 777, 793F, 798 AC
