Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat friction discs work with the brake system to provide the critical friction needed to slow, stop, or hold the machine stationary.
Features

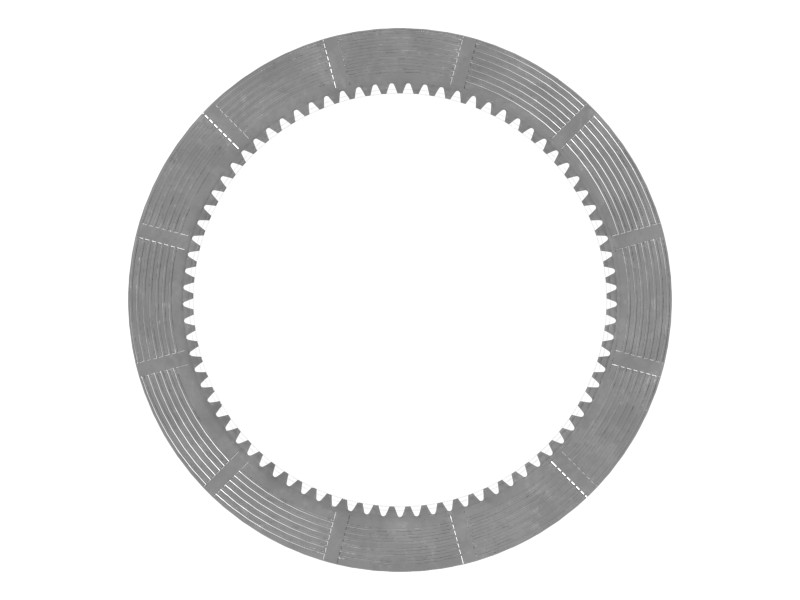

- Spiral and radial grooves optimize heat dissipation.
- Hardened steel core reduces spline wear.
- (81) tooth internal spline ensures an accurate OEM fit.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Non-Band Type Friction Material |
|---|---|
| Inside Diameter | 201.88 mm (7.948 in) |
| Outside Diameter | 265.1 mm (10.437 in) |

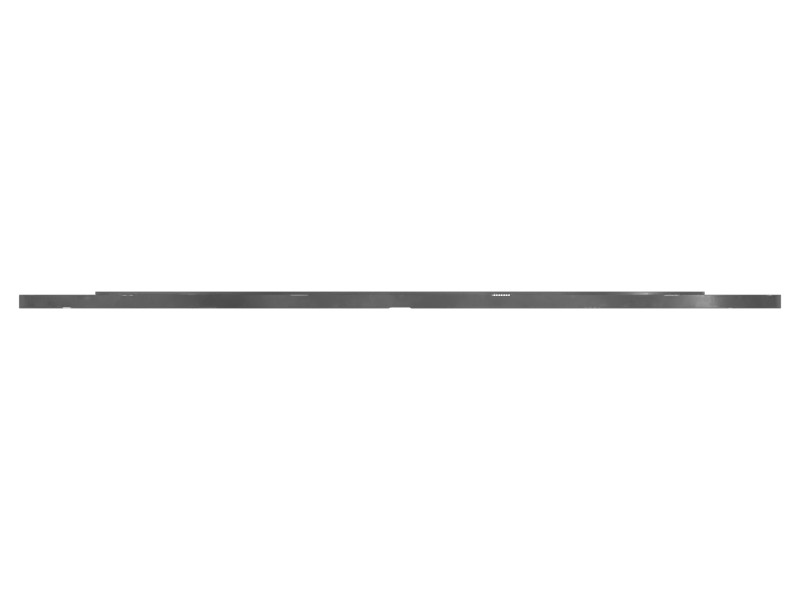

| Thickness | 4.65 mm (0.183 in) |
Compatible Equipment
- Dozers: D4E, D10R
- Off-Highway Trucks: 773F, 773E, 773D, 773, 775G
- Asphalt Pavers: AD63
