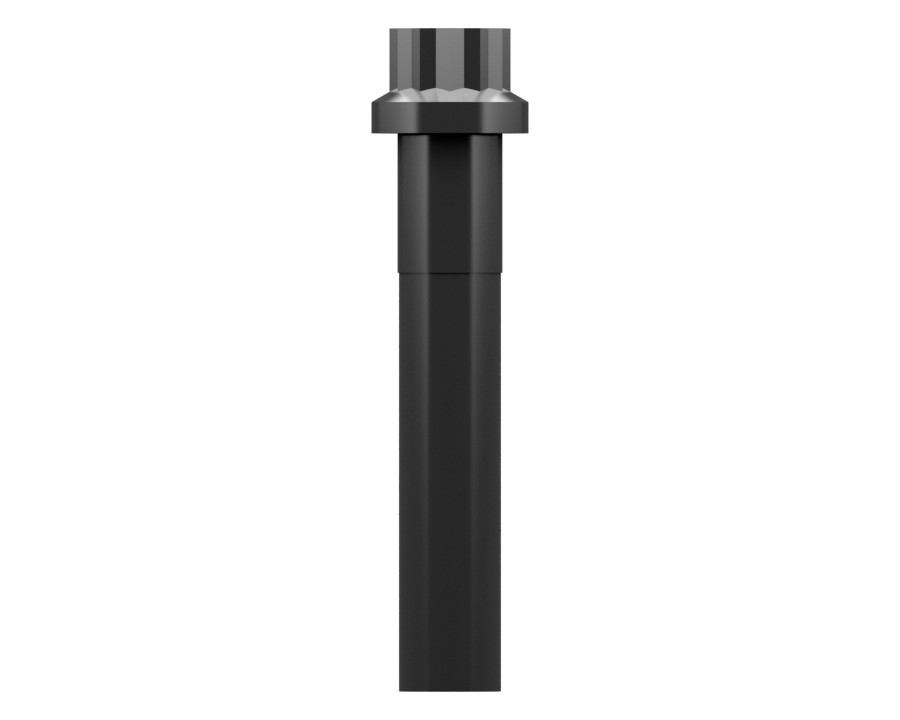

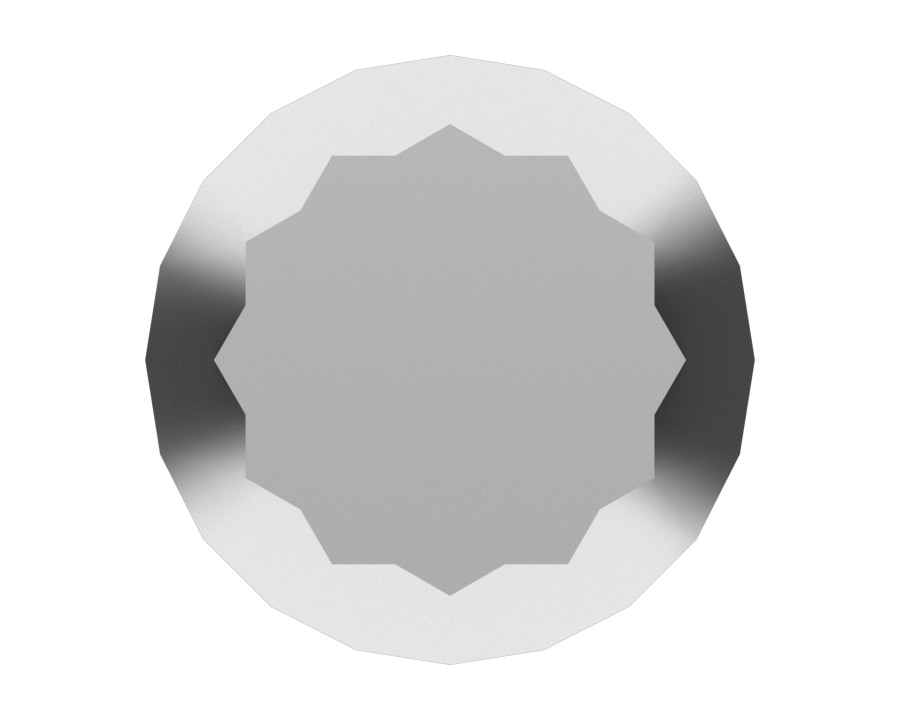

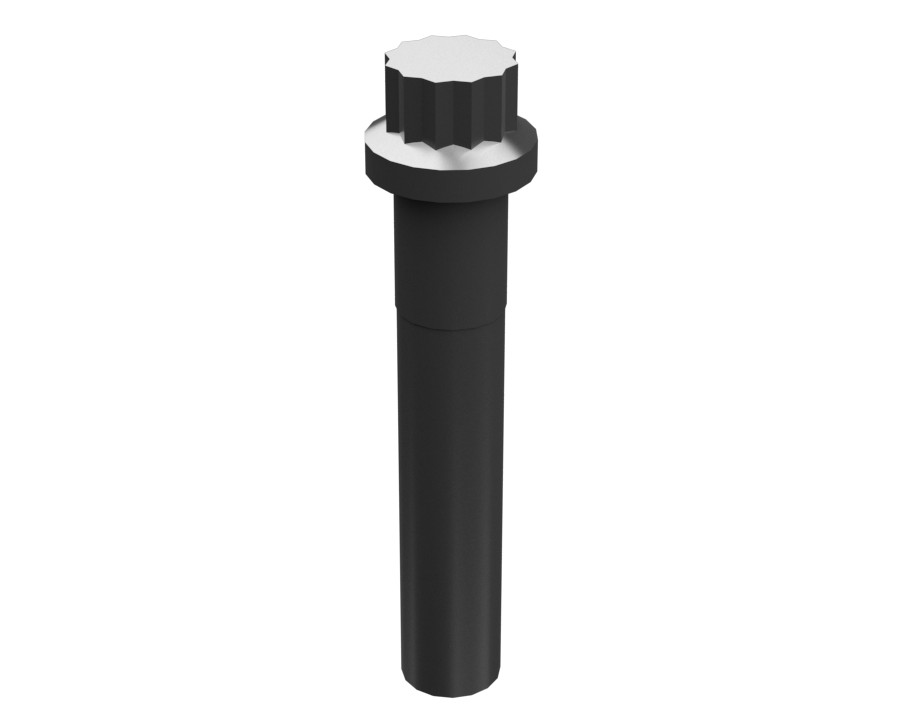

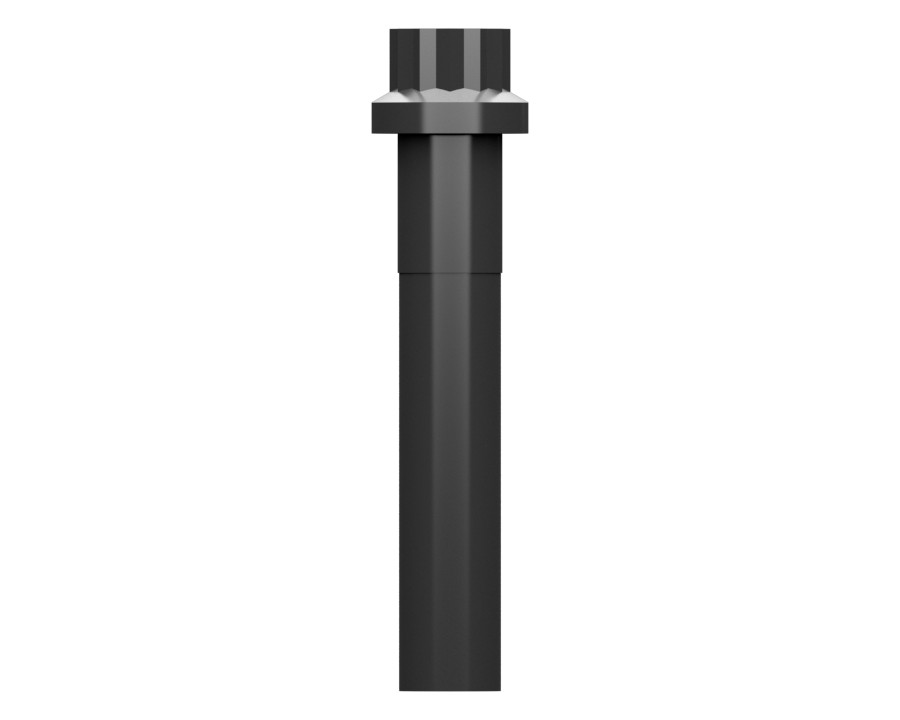

3S-1307 3/8″-16 x 2″ 12-Point Head Bolt
Inch
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Class or Grade | Cat/ASTM F2882 (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | 0.375 mm (0.015 in) |
| Type | 12-Point Head Bolt |
| Material | Steel |
| Bolt Length | 50.8 mm (2 in) |
| Bolt Type | 12-Point Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 12.7 mm (0.5 in) |
| Flange Diameter | 0.56 in |
Compatible Equipment
- Generator Sets: 3516C, G3516, G3516C, 3512B, 3512E, C4.4
- Track Loaders: 995, 834H, 826H, 994K
- Wheel Excavators: MD6310
- Engines: C15, C32
- Dozers: D6N, D11N, D11R
- Excavators: 3516E, 3512C, 3516B, 3508B, 6060, 637E, 637G, 657G
- Wheel Loaders: R1300G, 836, 910, 992D, 992C, 988F, 988H
- Off-Highway Trucks: 789D, 785D, 773, 785, 793D, 793, 789, 773E, 771D, 773D, 777D, 777
- Asphalt Pavers: AD45
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 637E, 637G, 657G, 771D, 773, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 826H, 834H, 836, 910, 988F, 988H, 992C, 992D, 994K, 995, AD45, C15, C32, C4.4, D11N, D11R, D6N, G3516, G3516C, MD6310, R1300G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
