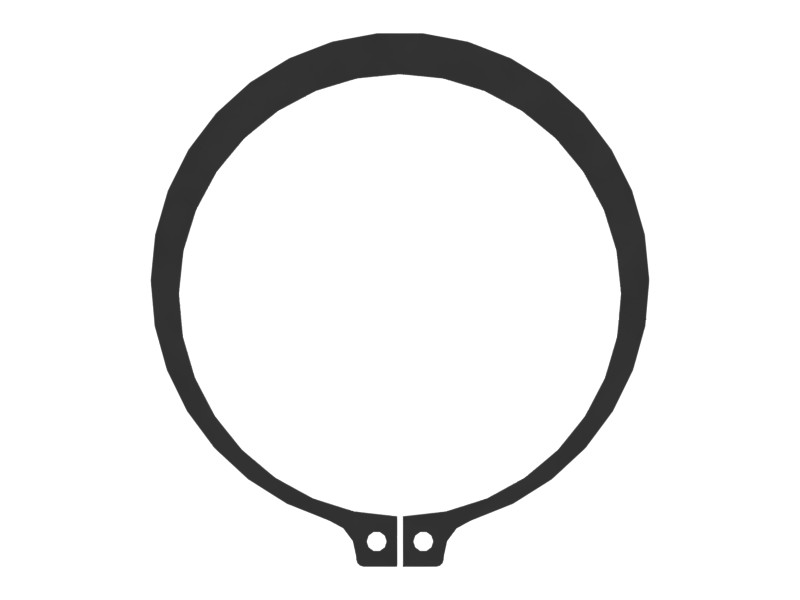

3P-3743 67.54 mm Free Diameter External Retaining Ring
Cat® 2.36 mm thick external retaining ring, secures shims in the power train system.
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material | Carbon Steel |
|---|---|
| Cross Hole | Yes |
| Remarks | Free Diameter: 67.54, Radial Wall: 6.5, Lug Height: 8.5, Groove Width: 2.62, Groove Diameter: 69.11, Shaft Diameter: 73 |

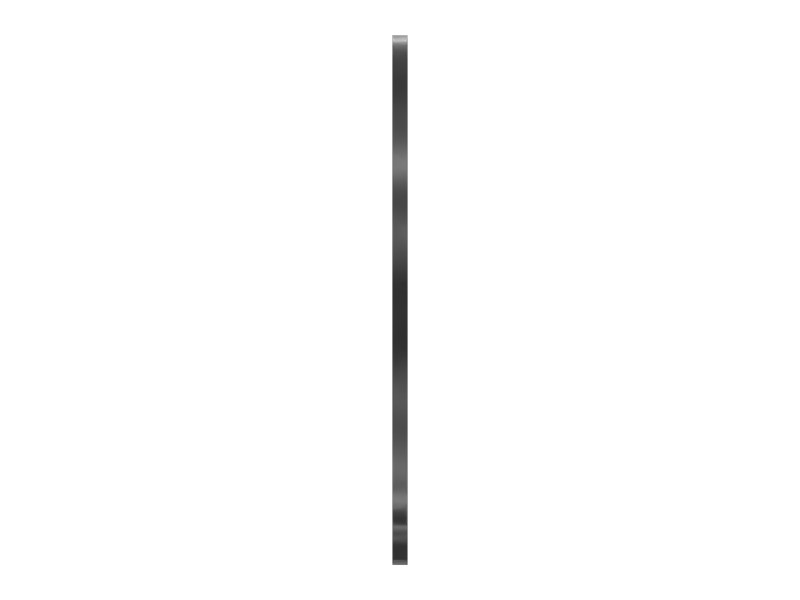

| Thickness | 2.36 mm |
| Material Description | Steel Retaining Ring |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Track Loaders: 824G, 826H, 824C, 834H, 826K, 826G, 982
- Cold Planers: PL61
- Compactors: 825K, 834K, 824K, C9.3B
- Excavators: 3508B, 3512C
- Wheel Loaders: 980M, 982M, 986K
- Off-Highway Trucks: 777, 777D, 745C, 740 GC, 777E, 745, 740
- Asphalt Pavers: AD30
Additional information
| Machine Model | 3508B, 3512B, 3512C, 740, 740 GC, 745, 745C, 777, 777D, 777E, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834H, 834K, 980M, 982, 982M, 986K, AD30, C4.4, C9.3B, PL61 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
