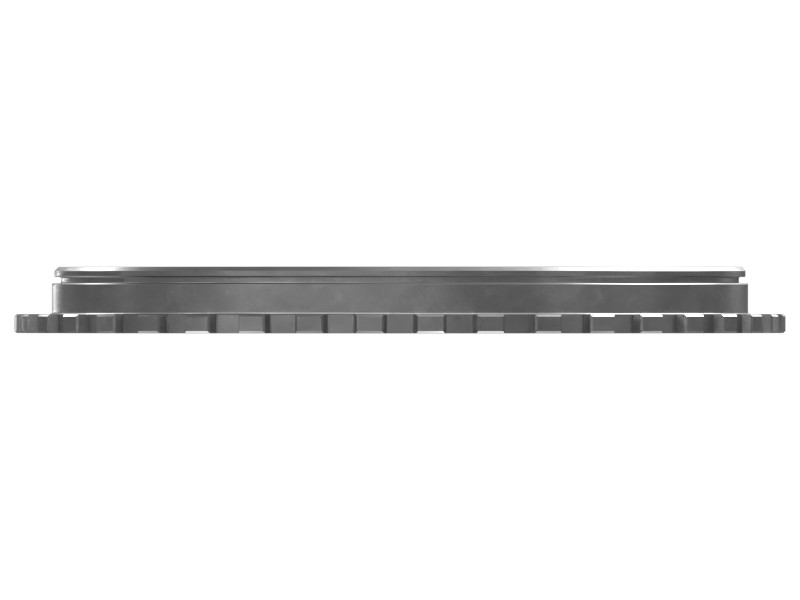

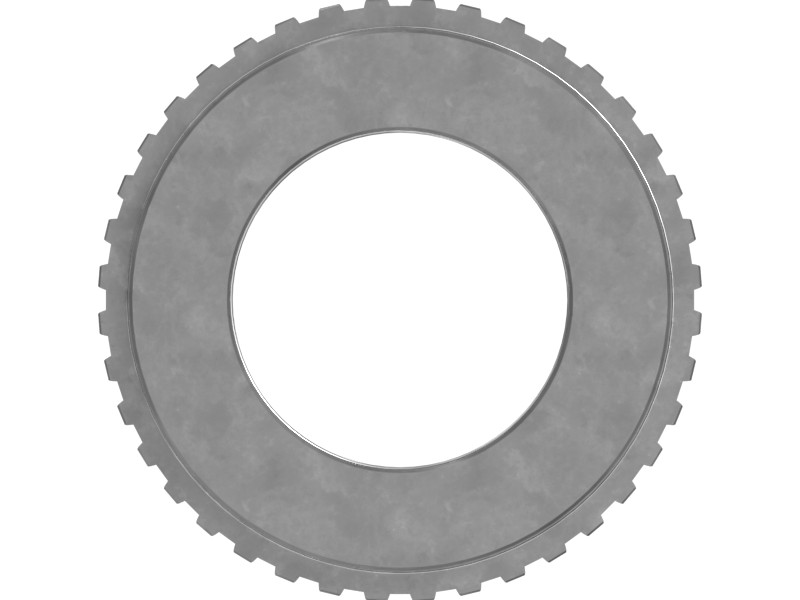

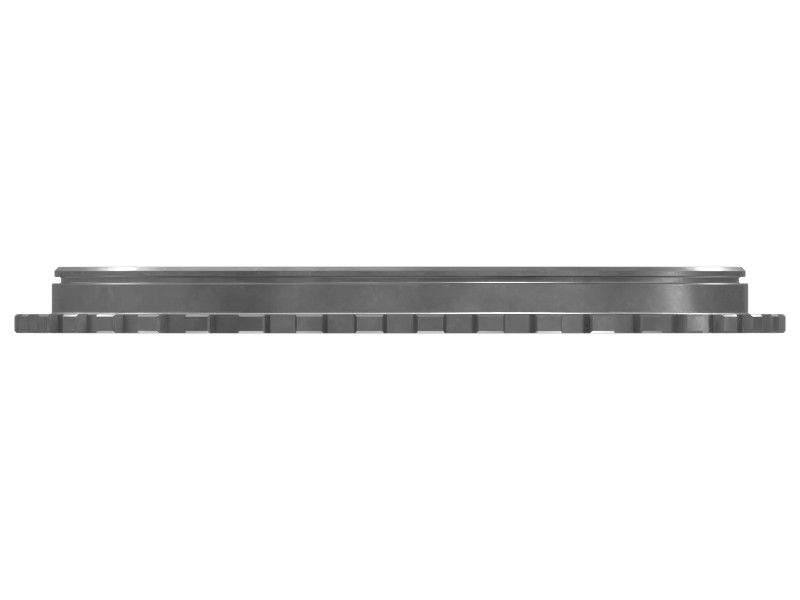

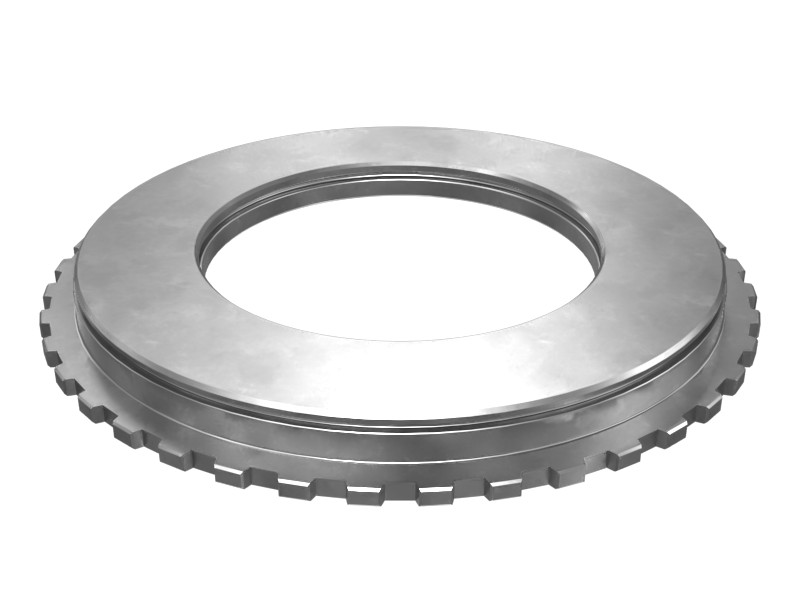

3P-2768 40-Tooth Transmission Clutch Piston
Cat® 40-Tooth Gray Iron Transmission Clutch Piston
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The Cat clutch piston is a key component in the planetary gear group that powers the rugged Cat transmission, converting engine power into the precise combination of speed and force each machine requires.
Features
- Material: Cast iron
- (40) tooth external spline ensures an accurate OEM fit
- Outside Diameter: 298.298 mm (11.744 in)
- Inside Diameter: 167.792 mm (6.606 in)
- Width: 25.476 mm (1.003 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Gray (Flake) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 298.526 mm (11.744 in) |
| Inside Diameter | 167.792 mm (6.606 in) |
| Width | 25.476 mm (1.003 in) |
Compatible Equipment
- Track Loaders: 824G, 834H, 826G, 824C, 826H
- Compactors: C9.3B
- Dozers: D10N, D9R, D8L, D9N, D9L
- Excavators: 637G, 637E, 637K, 3508B
- Wheel Loaders: 986K
- Asphalt Pavers: AD30
Additional information
| Machine Model | 3508B, 637E, 637G, 637K, 824C, 824G, 826G, 826H, 834H, 986K, AD30, C9.3B, D10N, D8L, D9L, D9N, D9R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Compactors, Asphalt Pavers |
| Part Source | Genuine OEM |
