Description

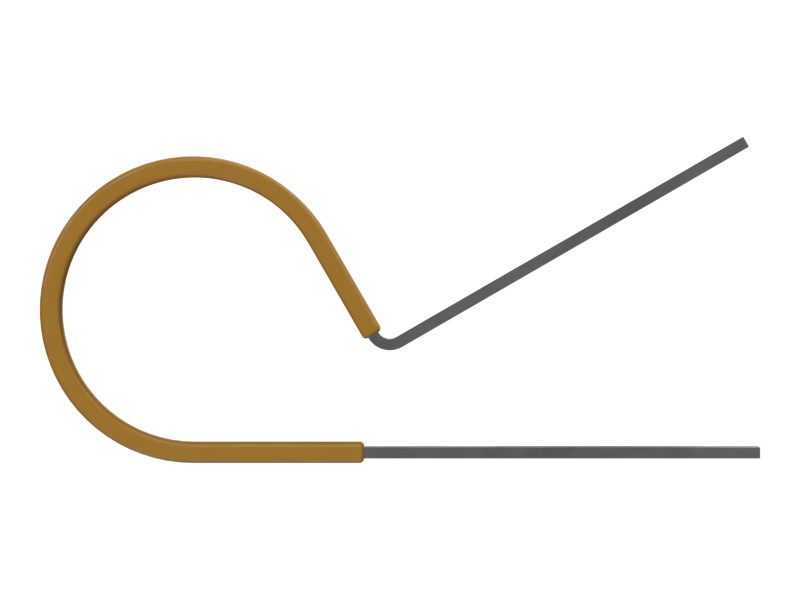

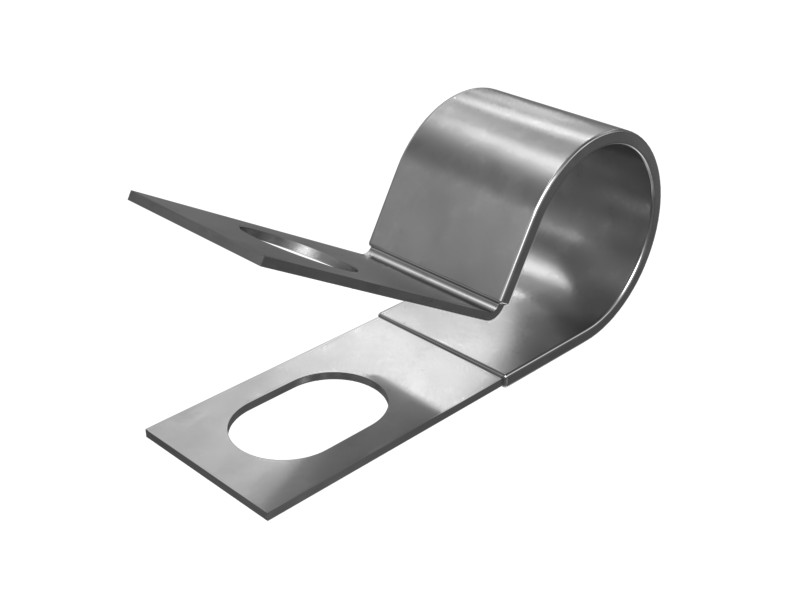

The P-clip is used to attach tubes or hoses to a surface, helping keep tubes or hoses neatly routed. It also provides protection against vibration or abrasion, making it suitable for harsh environments or heavy-duty applications. Hose clamps are typically made of plastic or metal.
Features
- For mounting hoses or tubes with a diameter of 28.58 mm.
- Manufactured to exact specifications, designed for outstanding durability, reliability and productivity over its service life.
Applications
The P-clip is used to hold and secure tubes or hoses in the system.
Specifications
| Material | Alloy Zinc |
|---|---|
| Clamp Width | 25.4 mm (1 in) |
| Inside Diameter | 28.58 mm (1.125 in) |
| Material Description | Steel Clip With Rubber Cushion |
| Fastener Size | M14 mm (1/2 in) |
| Width | 25.4 mm (1 in) |
| Length | 76.79 mm (3.02 in) |
| Thickness | 1.2 mm (0.05 in) |
Compatible Equipment
- Generator Sets: 3406C, 3512B, 3406B, G3516C
- Motor Graders: 140K, 12K, 160K
- Track Loaders: 963, 824C, 953, 834H, 826H, 982, 972, 993, 992, 816F
- Cold Planers: PL83, PL87, PL61, PL72
- Compactors: CS-583D, 834K
- Dozers: D6N, D10T2, D6T LGP, D6R III, D5H, D7H, D9L, D6M, D4E, D6R II, D7G, D6T, D8T, D7R, D9N, D6R, D9T, D5M, D8R, D10N, D11T, D8L, D10T, D10, D7E, D6R XL, D9R, D8, D10R
- Excavators: 637G, 6020B, 621G, 621K, 657G, 330 L, 6040, 345C, 3508B, 305C CR
- Wheel Loaders: 992K, 966M, 982M, 980M, 972M
- Off-Highway Trucks: 793F, 785D, 793D, 797F, 789, 777, 794 AC, 796 AC, 773D, 771D, 793, 773F, 789D, 798 AC, 773E, 785, 773, 775G
- Skid Steer Loaders: 24
Additional information
| Machine Model | 12K, 140K, 160K, 24, 305C CR, 330 L, 3406B, 3406C, 345C, 3508B, 3512B, 6020B, 6040, 621G, 621K, 637G, 657G, 771D, 773, 773D, 773E, 773F, 775G, 777, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 816F, 824C, 826H, 834H, 834K, 953, 963, 966M, 972, 972M, 980M, 982, 982M, 992, 992K, 993, CS-583D, D10, D10N, D10R, D10T, D10T2, D11T, D4E, D5H, D5M, D6M, D6N, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7E, D7G, D7H, D7R, D8, D8L, D8R, D8T, D9L, D9N, D9R, D9T, G3516C, PL61, PL72, PL83, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Generator Sets |
| Part Source | Genuine OEM |
