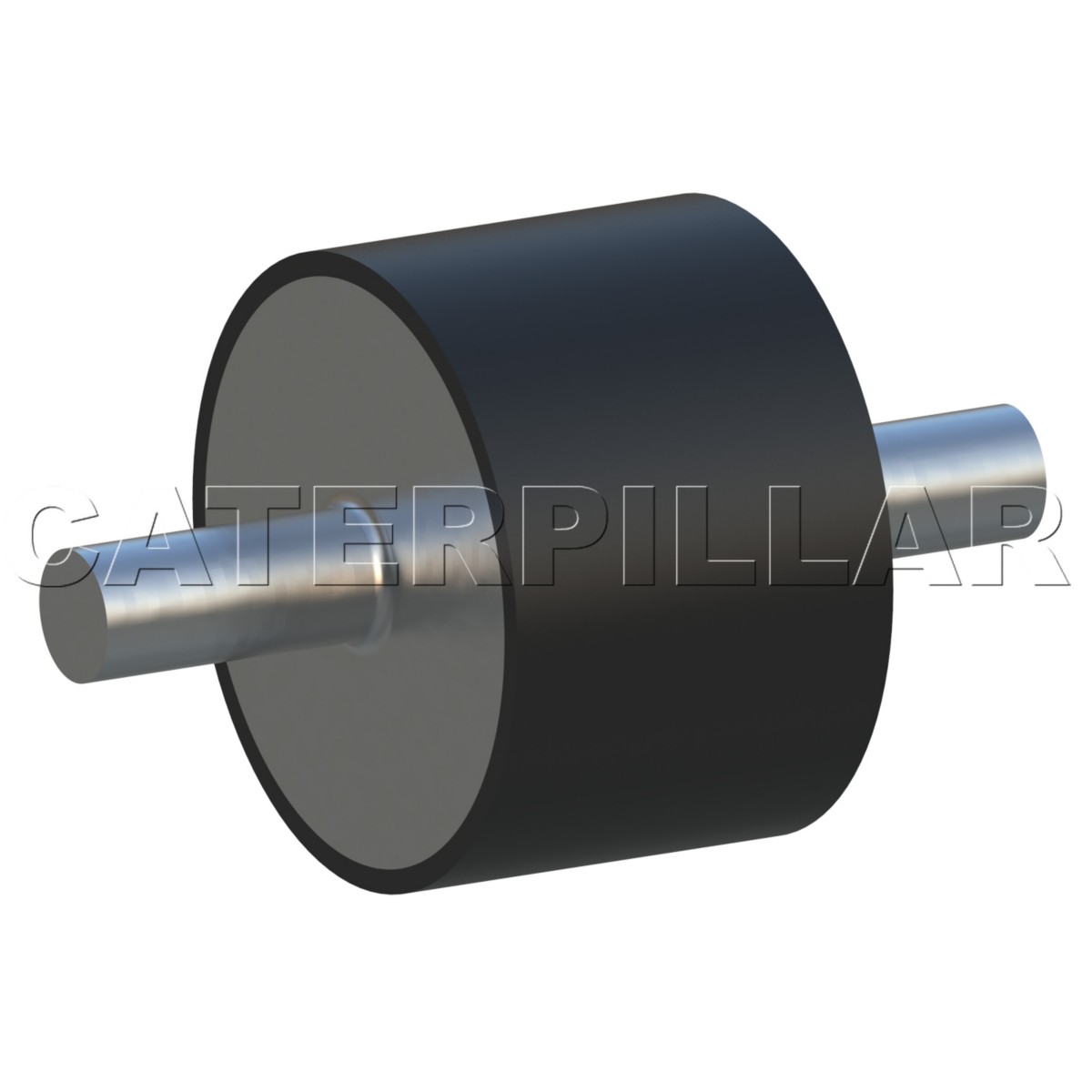

3N-1968 1/4-20 Thread Vibration Damping Mount
Cat® flexible vibration damping mounts absorb shock and reduce vibration, providing a flexible, resilient connection between two components
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Sandwich mounts have integrated fasteners on both ends for easy installation (two studs, two threaded holes, or one stud and one threaded hole).
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Sandwich mounts are a relatively economical option and perform well in light-load applications. They provide excellent radial isolation and can accommodate high radial displacement.
Applications
The sandwich base is widely used in light-duty applications such as electrical, and also in high-displacement applications such as compactor drums.
Specifications
| Mounting Type | Sandwich Type – Studs on Both Ends |
|---|---|
| Rubber Length | 19 mm (0.75 in) |
| Stud Thread Pitch | 2-2A |
| Stud Thread Size | 1/4 in |
| Outside Diameter | 25.4 mm (1 in) |
| Material Description | Rubber |
| Overall Length | 38 mm |
| Stud Length | 9.5 mm (0.37 in) |
| Stud Thread Size | 1/4 |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, G3516, 3512B, 3512E, G3516C
- Motor Graders: 3606
- Engines: C32, C27, C175-16, C18
- Excavators: 3512C, 3516E, 3516B, 3508B
