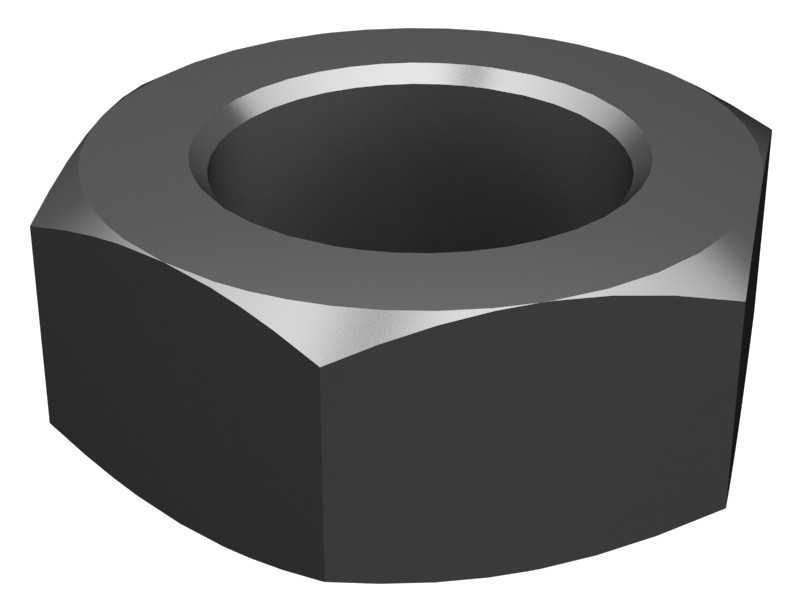

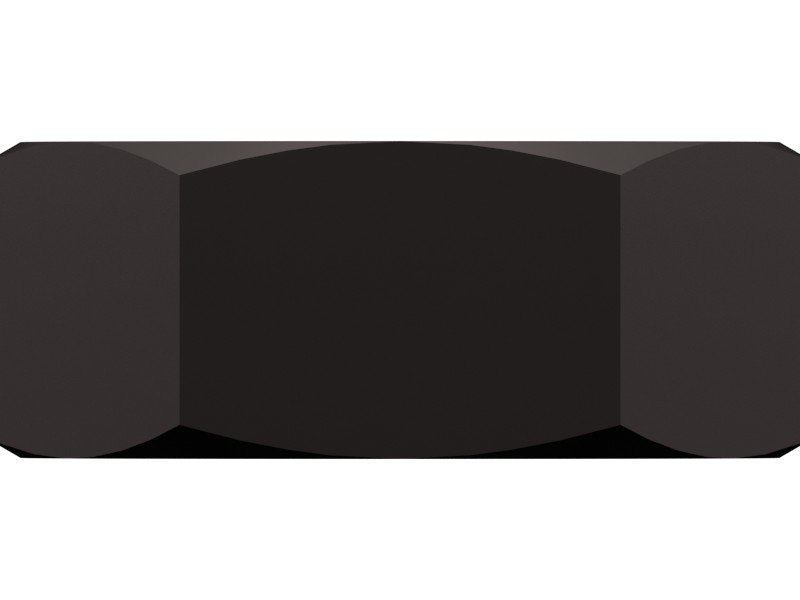

3J-9196 1/2″-20 Hex Lock Nut
Cat® Hex Nut
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Thread Direction | RH |
|---|---|
| Hole Thread Pitch | 20 |
| Thread Size | .500 mm (0.02 in) |
| Drive Chain | 19.05 mm (3/4 in) |
| Thread Size (Diameter × Pitch) | 1/2×20 mm |
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
| Coating | None |
| Thickness | 7.9375 mm (0.312 in) |
| Height | 0.31 in |
| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 1/2-20 in |
| Material | Carbon Steel |
| Material Description | SAE J995 Grade 8 |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516, G3516C, C4.4
- Track Loaders: 994K, 963, 995
- Wheel Excavators: IT14G
- Dozers: D11R, D11N, D10R, D6R, D7H, D7R, D6M, D5M
- Excavators: 3512C, 3516B, 3508B, 6060, 3516E
- Wheel Loaders: 966F
- Off-Highway Trucks: 793, 789, 785, 789D, 785D, 777D, 777, 793D
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 963, 966F, 994K, 995, C4.4, D10R, D11N, D11R, D5M, D6M, D6R, D7H, D7R, G3516, G3516C, IT14G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
