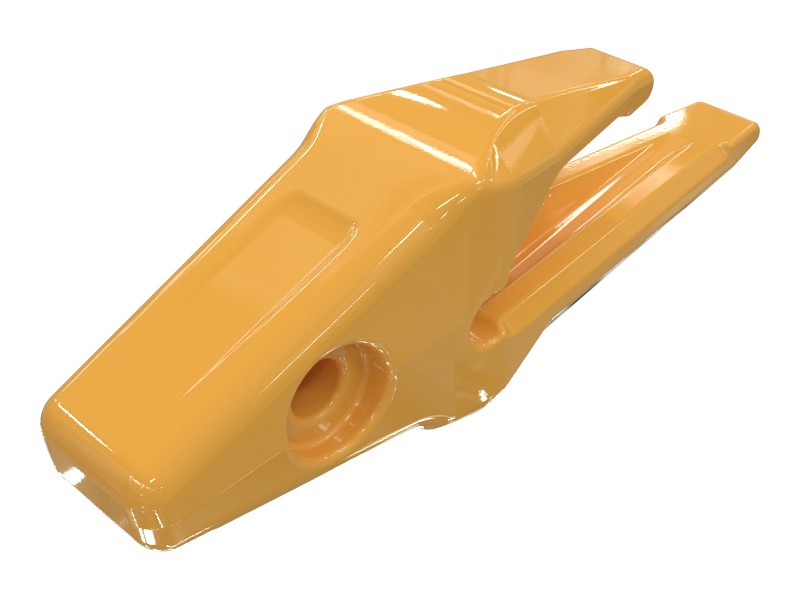

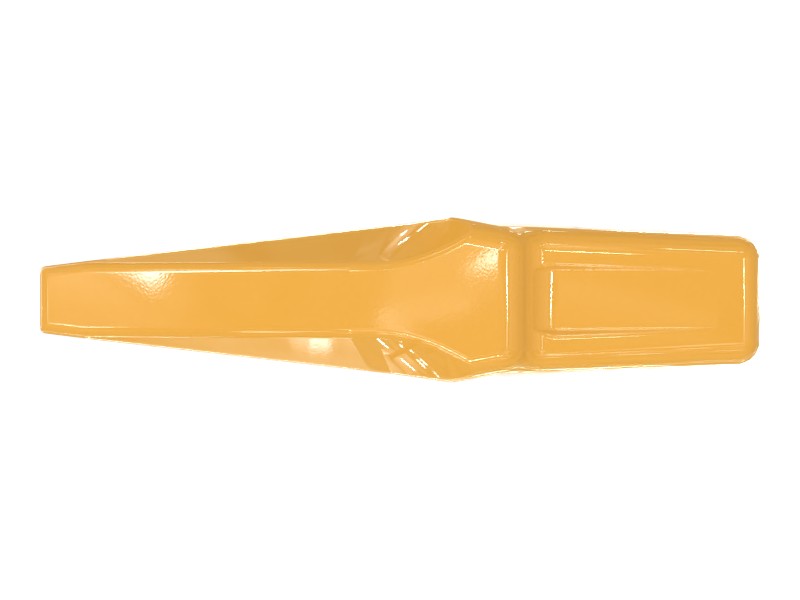

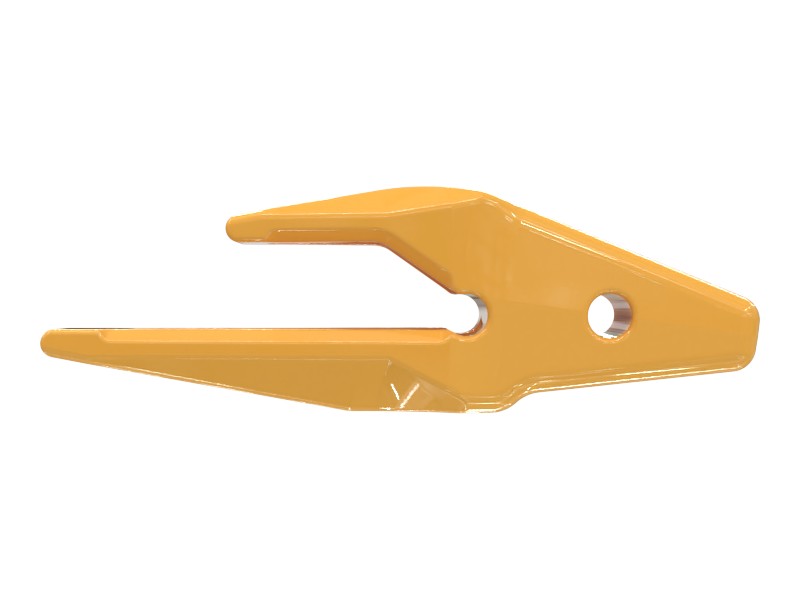

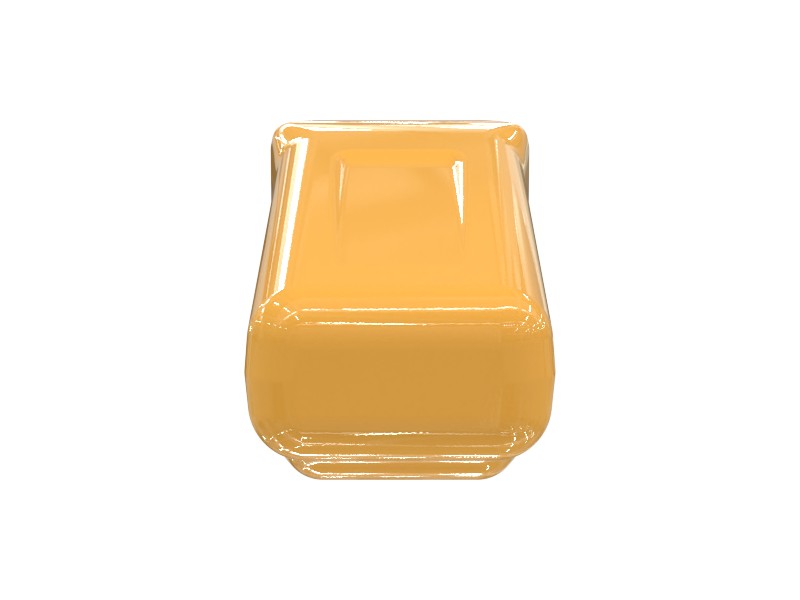

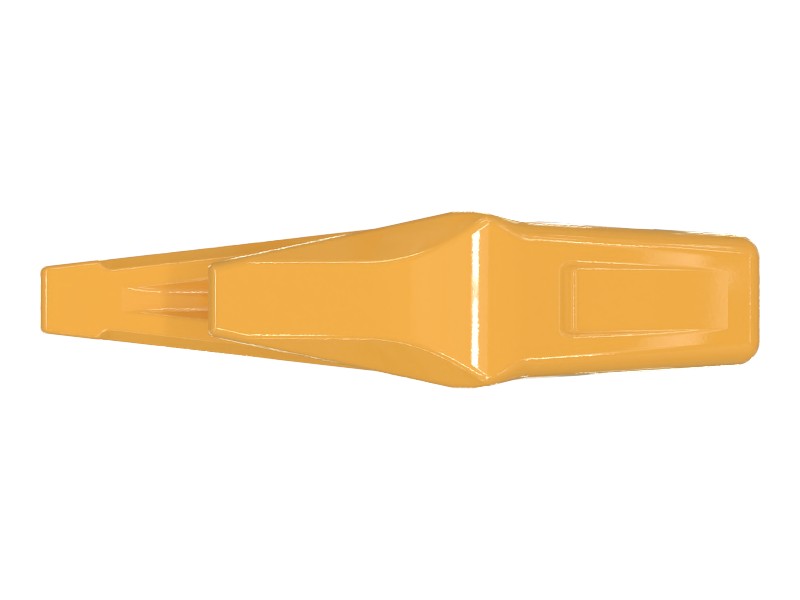

3G-8354 Bucket Adapter
J350 Center Bolt-On Two-Strap Adapter
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® J Series adapters are manufactured with unmatched precision to protect your machine bucket from damage. Our bucket G.E.T. are designed around the inherent characteristics of your Cat equipment to provide consistent, outstanding protection.
Two-strap adapters have a lower profile than flush mount adapters, producing greater penetration and higher productivity.
Adapters are durable, cast from steel that holds its hardness and offers long wear life, enabling your machine to deliver the performance you need. Always choose Genuine Cat bucket ground engaging tools to protect your investment.
Features
- J350 center bolt-on adapter fits 40 mm cutting edge with 35 degree bevel angle
Applications
- Excavator Buckets
Specifications
| Size | J350 |
|---|---|
| Wear or Durability | Standard |
| Hole Spacing | 0 mm |
| Overall Length | 347 mm (13.661 in) |
| Bevel Angle | 35 |
| Attachment Method | Weld-On |
| Width | 78 mm (3.071 in) |
| Number of Holes | 0 |
| Corner Stop Angle | 0 |
| Base Edge Thickness Grade | 38 |
| Bottom Bar Length | 216 mm (8.504 in) |
| Series | J Series |
| Adapter Size | J350 |
| Material | Boron Steel |
| Machine Model | Excavator |
| Wear Material | Standard Optional |
| Attachments | Weld-On |
Additional information
| Part Source | Genuine OEM |
|---|
