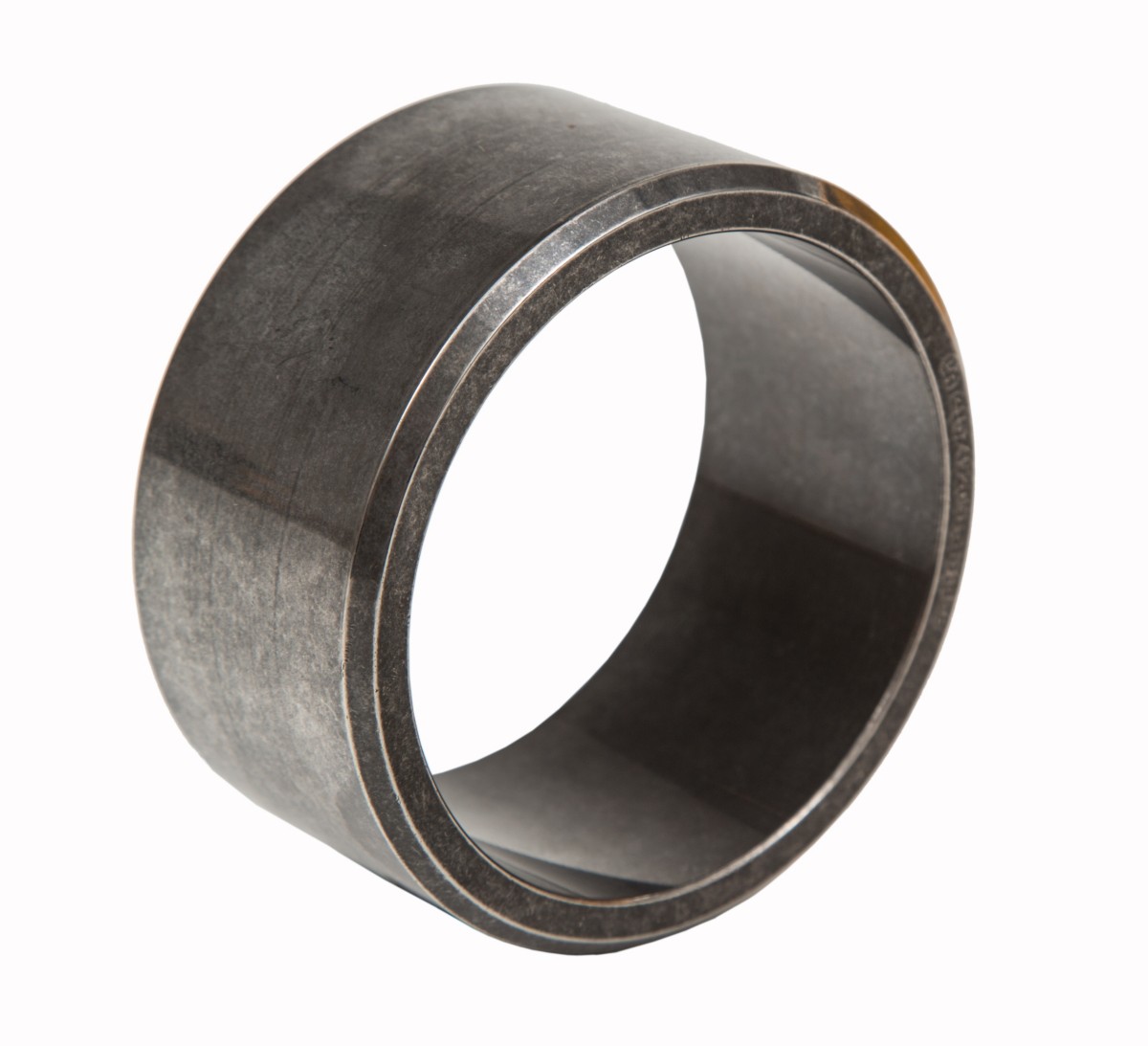

3G-6372 Sleeve Bearing (Bushing)
Cat® Sleeve Bearing (Bushing)
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® machine linkage sleeve bearings support pivoting between the frame linkage and work tools. They are most commonly used in machine booms and buckets. Genuine Cat pins and sleeve bearings are specially designed to work together as a system to deliver the performance you expect. Caterpillar design engineers match each part with the right combination of size, material, surface treatment and manufacturing process so it works effectively and wears in step with all other adjacent and dependent parts.
Features
Cat heavy-duty sleeve bearings are made from advanced steel and hardened for exceptional hardness and wear life. They work as a system on specific Cat machines and are tested and proven in the world's toughest applications. These bearings offer a lower overall cost, outstanding strength and fatigue life and superior wear resistance, while providing exceptional protection against wear, even under high-load conditions.
Recommended Applications:
Cat sleeve bearings are designed for situations that require durability and load strength to extend bearing life. Cat sleeve bearings are the first choice for maximizing performance in demanding applications. They are designed to match mating pins.
Specifications
| Cross Hole | Yes |
|---|---|
| Approximate Outside Diameter | 108 mm |
| External Groove | None |
| Approximate Overall Length | 72 mm |
| Approximate Inside Diameter | 96 mm |
| Ferrule Inside Diameter | 95.595 mm (3.764 in) |
| Unique Features | No |
| Ferrule Outside Diameter | 108.065 mm (4.255 in) |
| Internal Groove | Grease Hole in Bearing |
| Inside Diameter | 96 mm (3.76 in) |
| Outside Diameter | 108 mm (4.25 in) |
| Overall Length | 72 mm (2.83 in) |
Compatible Equipment
- Dozers: D6T, D6R II, D6R III, D6T LGP, D6R, D6R XL, D6R LGP
