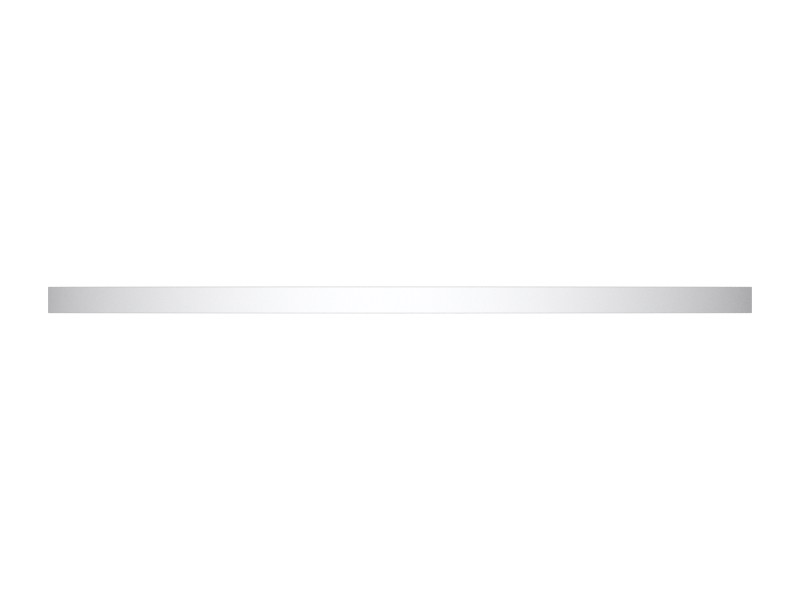

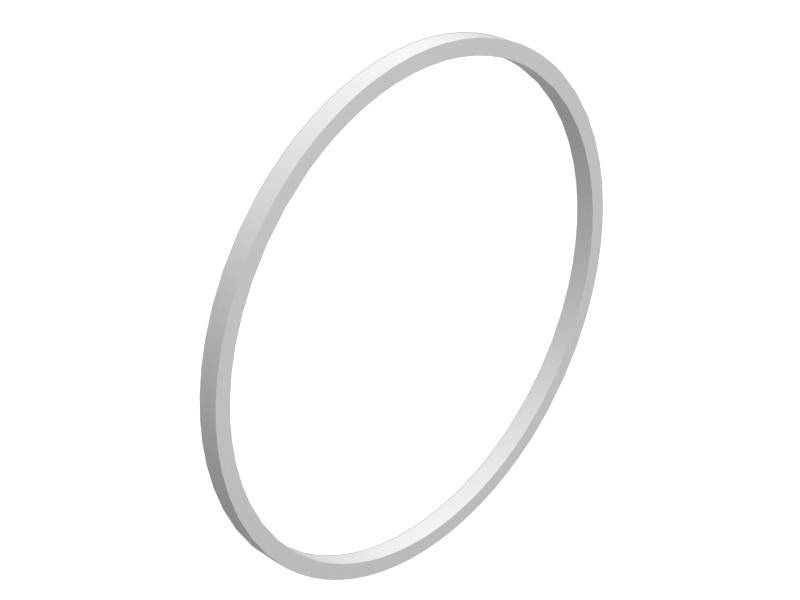

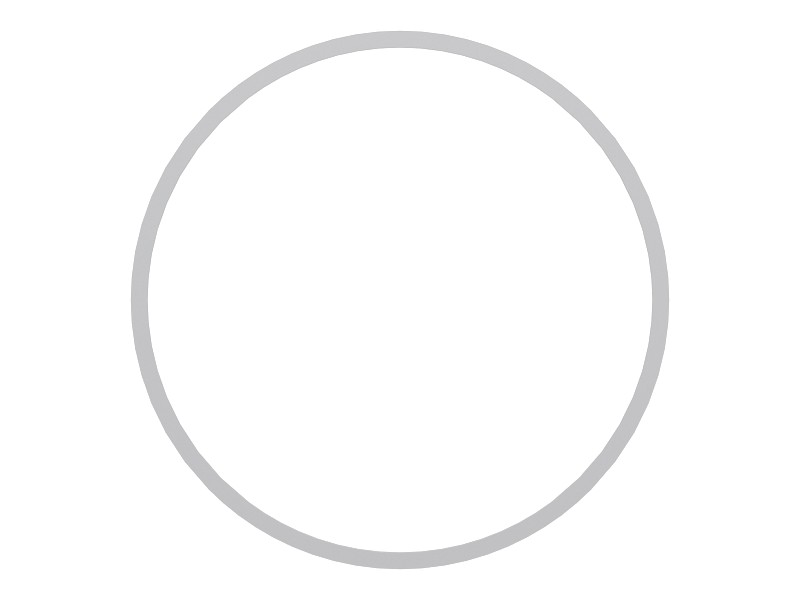

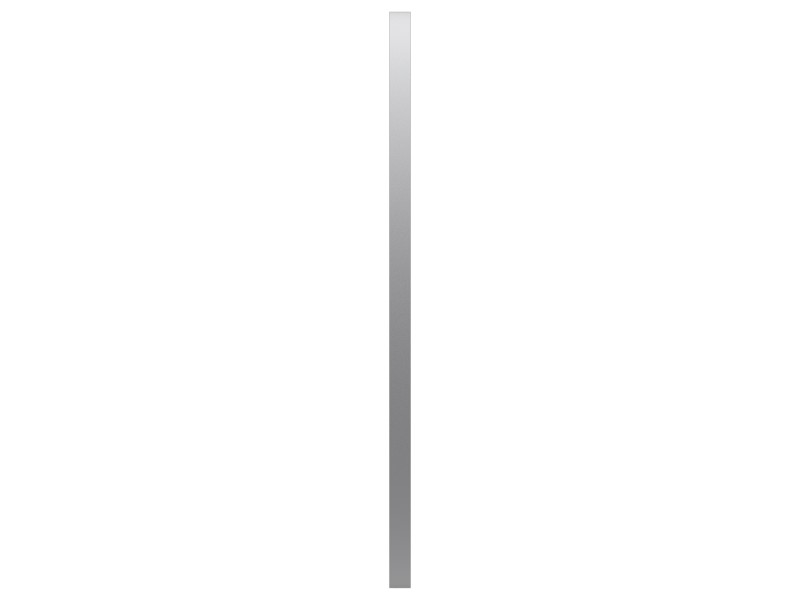

3G-2193 3.818 in OD Seal Ring
Cat® vane pump seal ring prevents fluid leakage and ensures a reliable seal within the pump housing.
Description
The transmission seal ring helps engage the rotating clutches in the transmission and torque converter. It allows oil to flow from stationary components into rotating components while minimizing fluid loss.
Features
Cat® seals are made from a variety of materials, including rubber, energized rubber and plastic. These seals can handle applications with the most demanding pressures and speeds. From seal geometry to the finish and heat treatment of mating surfaces, every aspect of this sealing system is designed to work together, resist wear and deliver reliable performance.
Genuine Cat® seals protect your investment.
Applications
A variety of cross-section types are used in transmissions and brakes to engage clutches.
Specifications
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
|---|---|
| Material Description | PTFE provides excellent performance in air, engine oil, diesel fuel and coolant applications, but is prone to installation damage and debris. Suitable for ultra-high-temperature applications. |
| Cross-Section Width | 3.6 mm (0.14 in) |
| Cross-Section Height | 2.9 mm (0.11 in) |
| Primary Seal Material | Plastic |
| Inside Diameter | 91 mm (3.59 in) |
| Material | PTFE – Polytetrafluoroethylene |
Compatible Equipment
- Motor Graders: 16
- Track Loaders: 953, 816F, 992, 824C
- Compactors: 815, 816, 814
- Dozers: D10N, D10R, D4E, D7G, D9N, D8L, D9L
- Wheel Loaders: 980G, 950
