Description

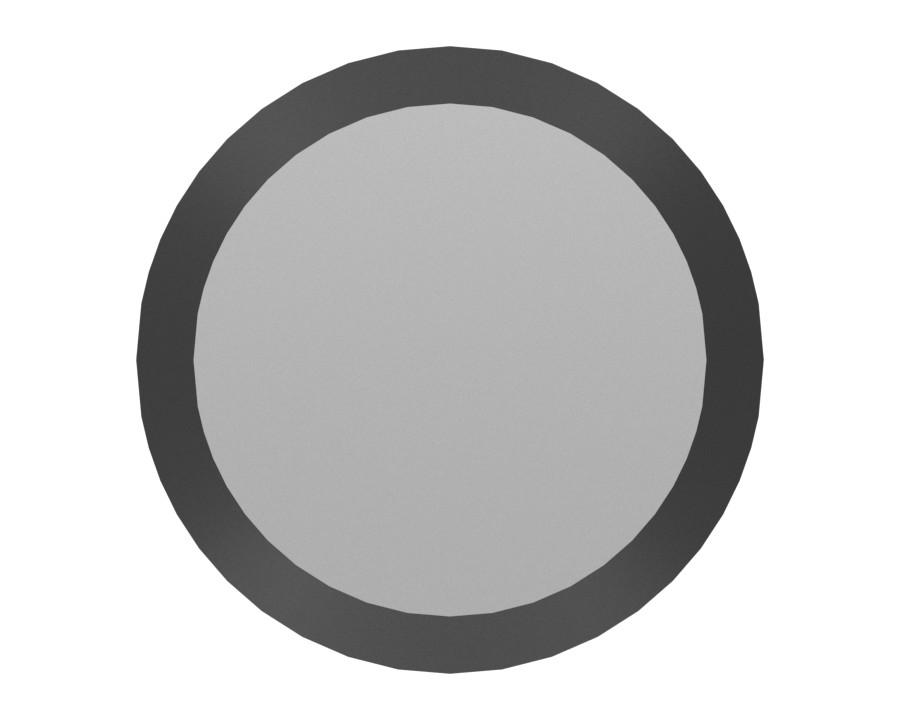

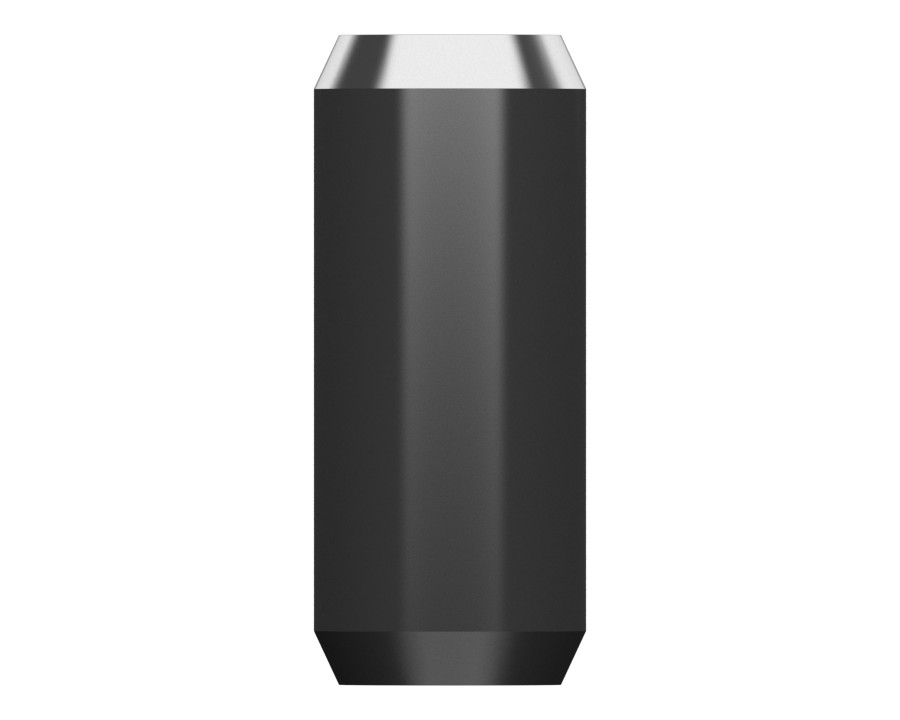

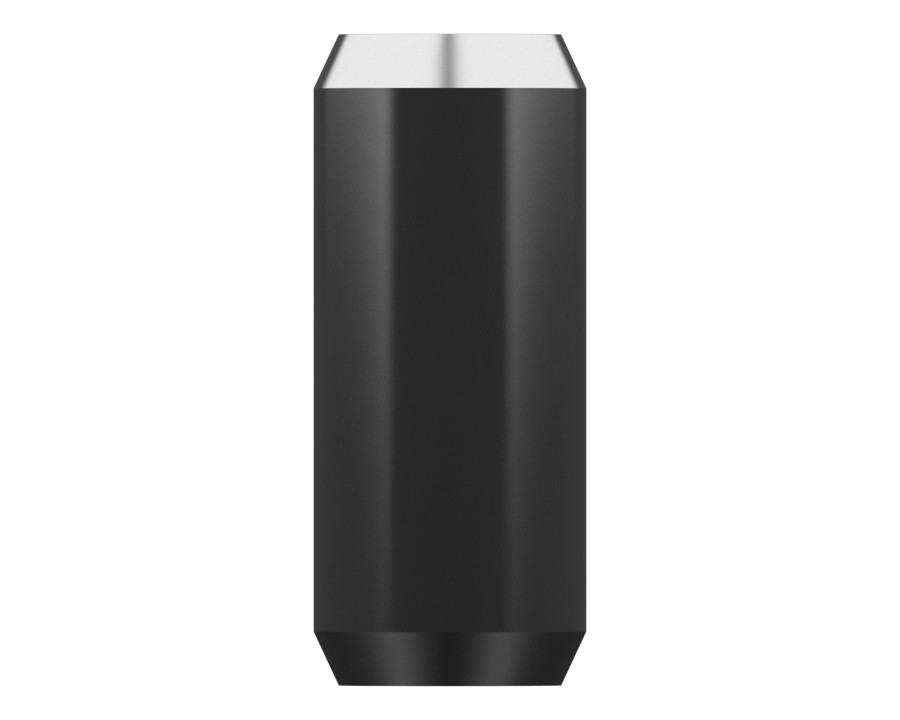

A dowel pin is a solid, headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Parts meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Pin Outside Diameter | 4.61 mm (0.181 in) |
|---|---|
| Pin Length | 11 mm (0.433 in) |
| Pin Type | Solid |
| Remarks | Overall Length: 11, Pin Diameter: 4.605, End Type 1: Chamfer, End Type 2: Chamfer |
| Material Description | Steel – Pins and Dowels |
Compatible Equipment
- Generator Sets: C9, 3512B
- Motor Graders: 120, 140G
- Track Loaders: 992
- Compactors: 815, 814, 816, C-9
- Engines: C13, C32, C11, C7, C27
- Dozers: D11T, D11R, D11N, D5H, D4E, D7G2, D7G, D7H
- Excavators: 385C, 3516B, 385C FS, 390D, 637E, 385C L, 374F L, 390F, 3516E, 374F, 390F L, 390D L
- Wheel Loaders: 950, 966F, 972G
- Off-Highway Trucks: 785, 773, 789, 785D, 777D, 789D, 793, 777E, 777, 793F, 793D, 775G
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120, 140G, 3126B, 3512B, 3516B, 3516E, 374F, 374F L, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 637E, 773, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 814, 815, 816, 950, 966F, 972G, 992, C-9, C11, C13, C27, C32, C7, C9, D11N, D11R, D11T, D4E, D5H, D7G, D7G2, D7H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
