Description
Metric

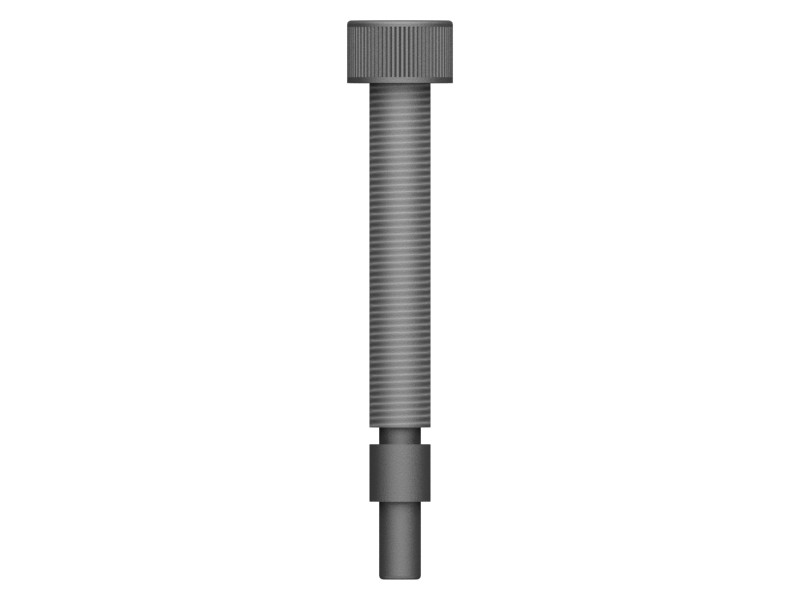

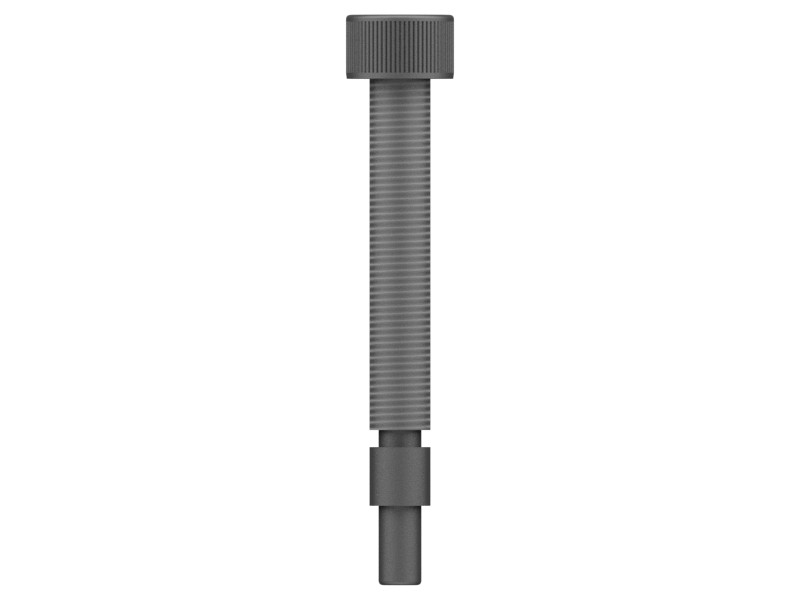

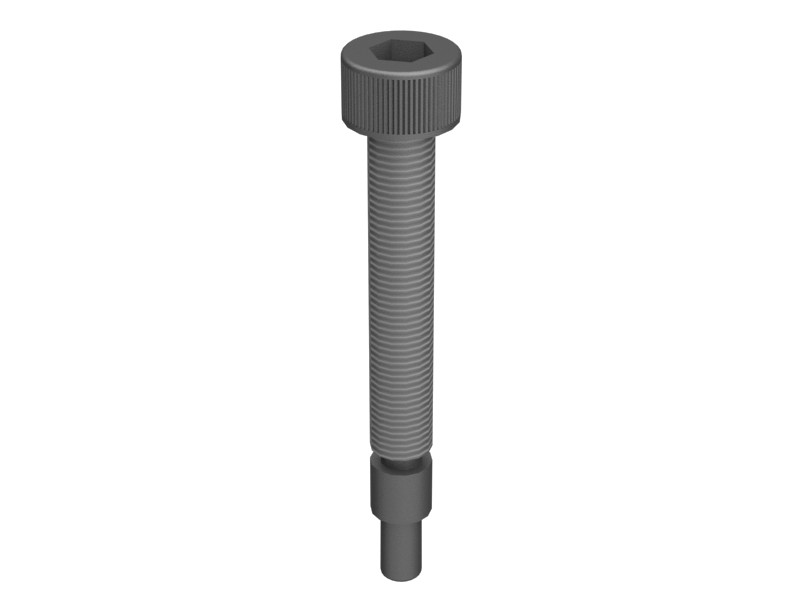

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Features
- Thread Size: M5
- Material: Steel
- Silver plated
Specifications
| Handle Length | 28.66 mm (1.128 in) |
|---|---|
| Coating | Silver Flash |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M5x0.8 mm |
| Thread Size | M5 mm (0 in) |
| Locking Feature | None |
| Bolt Length | 39.37 mm (1.55 in) |
| Thread Direction | RH |

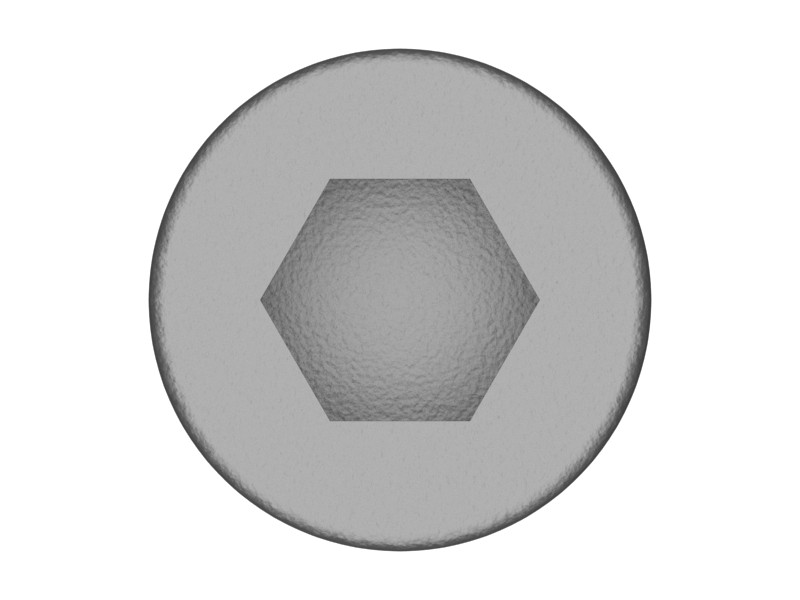

| Bolt Type | Socket Head |
Compatible Equipment
- Generator Sets: 3512B, G3516C, G3516, 3512E, C9, 3516C, C4.4
- Track Loaders: 953D, 963D, 816F, 826G, 834H, 826H
- Cold Planers: SE60 VT XW, TH360B
- Compactors: CS-533C, CB-534D, CB-564D, CB-434D, CB-14, C13B, C-9, CS-533E
- Engines: C15, C7, C13, C32, C11, C27, C18, C175-16
- Asphalt Pavers: AD63, AD30, AP655F, AP-600D, AP355F, AP300F, AP655F L, AD45
- Skid Steer Loaders: 3126B
- Motor Graders: 140K, 3606, 16M, 12K, 160K, 14M, 14
- Dozers: D3G, D6R II, D7R II, D7R, D4G, D5G, D6R, D8T, D9T, D6R XL, D11T, D10T, D10R
- Excavators: 637G, 637E, 657G, 3512C, 385C L, 3516B, 3508B, 365C, 3516E, 350 L, 385C, 385C FS, 621G, 330 L, 320B
- Wheel Loaders: 972H, 966H, 972G, 980H, 980G, 950H, 950G, 924GZ, 928HZ, 928G, R3000H, R2900G, R1300G, 962G, 924HZ, R1600H, R1700G, R1700K, 966F, 988H, 988G, R1700 XE, 990H, 950 GC, R2900 XE, 986H
- Off-Highway Trucks: 785D, 777D, 771D, 773E, 740B, 775G, 793F, 797F, 735, 773F, 777E, 730, 796 AC, 773D, 793D, 789D, 794 AC, 725, 740, 798 AC, 777, 785, 789, 773
