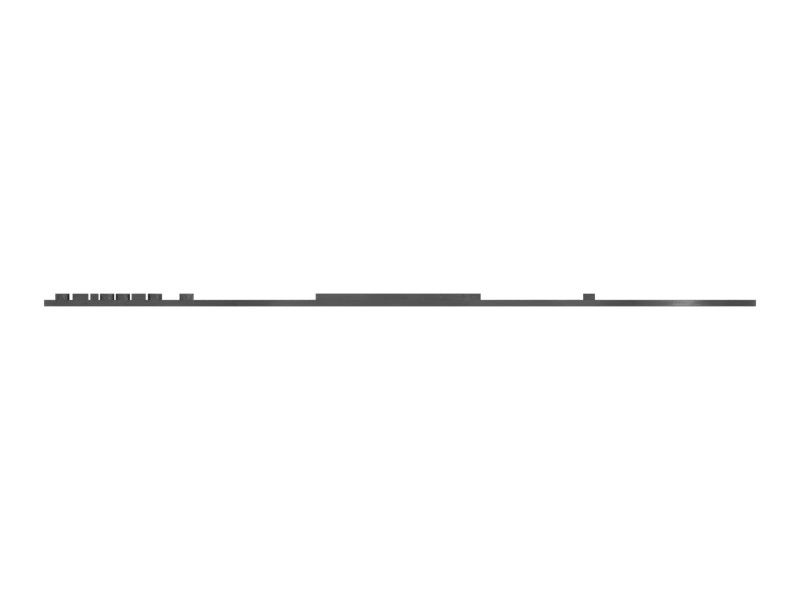

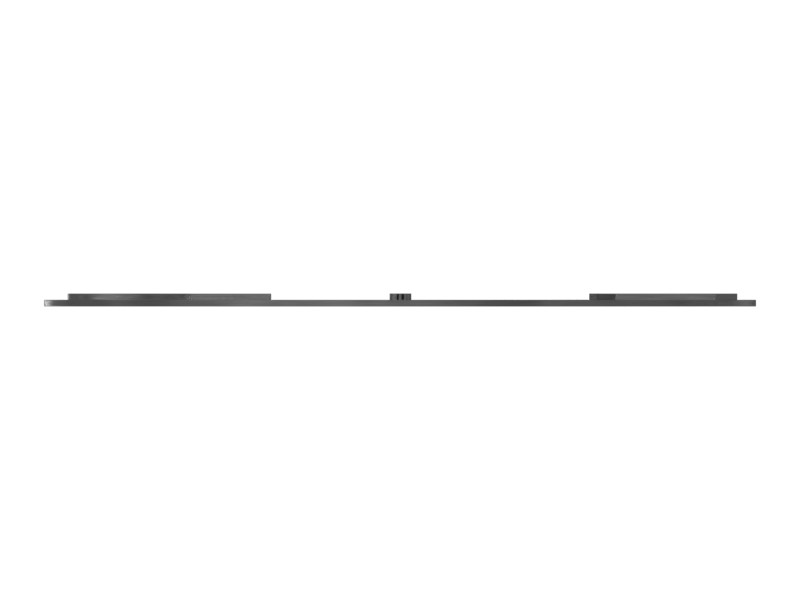

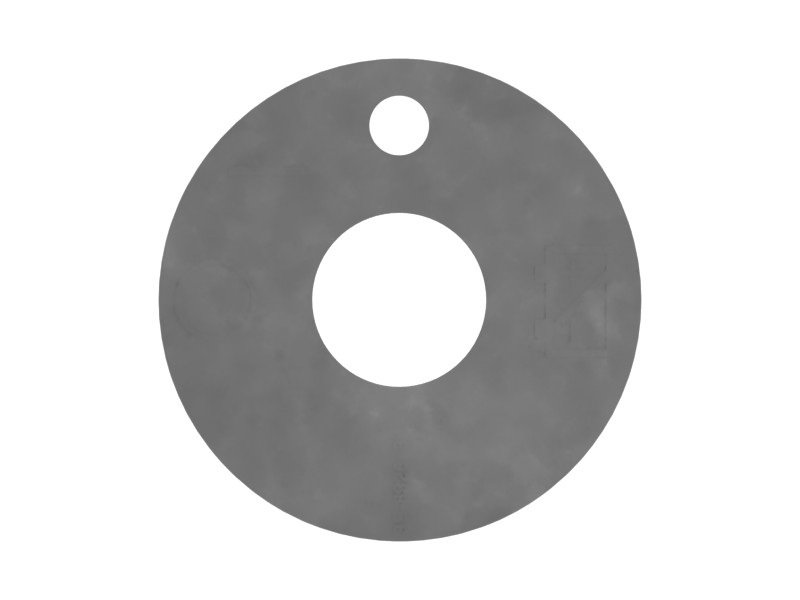

3E-8320 20.6 mm ID Battery Instruction Plate
Cat® 20.6 mm ID Aluminum Battery Instruction Plate
Description
The battery instruction plate is part of a component group such as the disconnect switch and helps disconnect the battery through the use of a handle and parts. The instruction plate is specially designed to display detailed information about using certain functions in the workspace or machinery. An instruction plate is typically a metal or plastic plate attached to equipment that contains important information about safe and efficient operation or maintenance of the machine.
Features
- Provides a secure connection for components.
- High strength, wear-resistant.
- Manufactured to exact specifications, built for rugged durability and reliable performance.
Applications
The battery instruction plate is used to connect and disconnect the battery for various systems, such as Diesel Exhaust Fluid module wiring, machine preheater, and parts film.
Specifications
| Inside Diameter | 20.6 mm (3.23 in) |
|---|---|
| Material Description | Aluminum |
| Material | Aluminum |
| Outside Diameter | 57 mm (6.2 in) |
Compatible Equipment
- Generator Sets: 3516C, C4.4, 3512B
- Track Loaders: 972, 982, 826H, 824G, 816F, 826G, 834H
- Cold Planers: TH360B, TH417D
- Compactors: CS-54, CB-564D, CB-64B, CB-534D, CB-66B, CC-34B, CS-563E, CB-24B, CB-14, CB2.9, CB-44B, CB2.7, CS-56, CB-34B, CS-583D, CB-36B, CB-434D, CB2.5, CB10, CB13, CS-54B, CS-533E
- Engines: C27, C32
- Excavators: 320D2, 330, 320D, 390F L, 307.5, 305, 336D2, 349D2, 326D2, 329D, 329D2 L, 306E2, 336D, 329D2, 374D L, 349D, 303.5E2 CR, 390D L, 349D2 L, 307E, 308E, 374F, 306E, 326D2 L, 308D, 313 GC, 374, 313, 316 GC, 349F L, 330D L, 305E2 CR, M325D L MH, 355, 350, 329E L, 329E, 323, 336F L, 312 GC, 333, 330 GC, 326, 302.7CR, 352F, 432, 374F L, 320D3, 340, 320D FM, 365B L, 313D2, 320, 313F L, 320D3 GC, 345 GC, 312E, 320 GC, 336E L, 323GC, 352, 335, 312E L, 315 GC, 323 GX, 330GC, 315, 395, 325, 336, 320 GX, 326 GC, 323 GC, 320D2 GC, 336D2 L, 301.6, 349E L VG, 385B, 390D, 345D L, 349E L, 416E, 340D L, 416F2, 621G, 349E, 340D2 L, 349D L, 349, 390F, 345C, 320D L, 329D L, 320D2 L, 311B, 312D, 325B L, 336F, 320C, 336F LN, 323D L, 323D2 L, 336F L XE, 312D L, 336D L, 325D L, 325C L, 324D L, 325C, 320B, 315D L, 318D2 L, 312C L, 312C, 320E, 312D2 GC, 336D2 XE, 336D2 GC, 311D LRR, 315C, 330C, 336 GC, 320D GC, 323D, 311C, 312D2, 314D LCR, 336E H, 330C L, 328D LCR, 320D RR, 324D, 318D L, 336E LH, 325D, 330D2, 326D L, 313D2 GC, 335F LCR, 330D2 L, 330D, 637E, 637G, 385C, 345C L, 385C L, 365B, 345D, 3516B, 385C FS, 6015B, 365C, 365C L, 345B, 313F LGC, 323D2, 314C, 313D, 336E, 336E LN, 428F, 313D2-GC, 312D2 L, 330B, 314D CR, 325B, 312F, 318D2, 301.8, 326GC, 313 GX, 316 GX, 312 GX, 303.5CR, 303CR, 305 CR, 434F2, 350MHPU, 320C L, 315F LCR
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 246D3, 289D3, 272D3, 272D3 XE, 242D3, 262D3, 246D, 236D3, 259D3, 299D3 XE, 236D, 262D, 313D2 LGP, 232D
- Motor Graders: 316F, 120H, 12H, 140H, 16H, 349 GC
- Wheel Excavators: M315GC
- Dozers: D7H, D3K2 LGP, D5K2 XL, D5K LGP, D5K XL, D1
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 306.5, 308, 305.5, 310, 306, 307C, 305.5E, 307E2, 307B, 307, 308E2, 307D, 301.7CR, 305.5E2, 303.5E, 305E2, 308.5, 302CR, 305.5 GC, 301.5
- Wheel Loaders: 966, 950, 950 GC, 980, 980L, 938K, 980H, 988H, 988G, 992D, 972H, 972G, 962G, 924K, 928HZ, 966H, 966K, 988F, 950H, 950G, 966L, 962L, 980G, 972L, 924GZ, 950L, 924HZ, 928G, 906K, 990H
- Off-Highway Trucks: 773E, 773, 771D, 725, 773D, 777D, 730
