Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are designed as a system that works together to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |

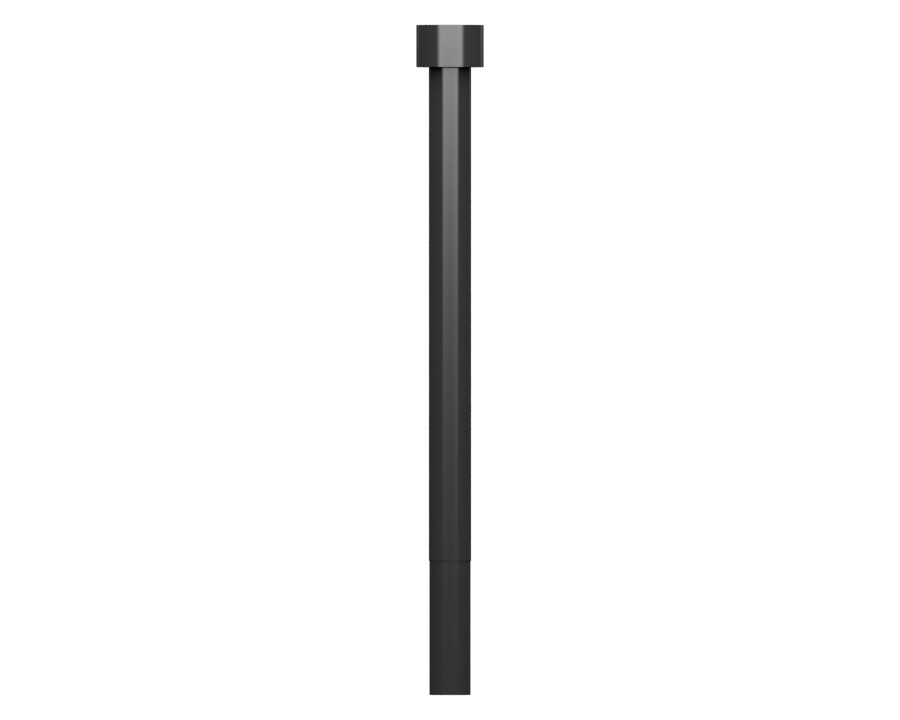

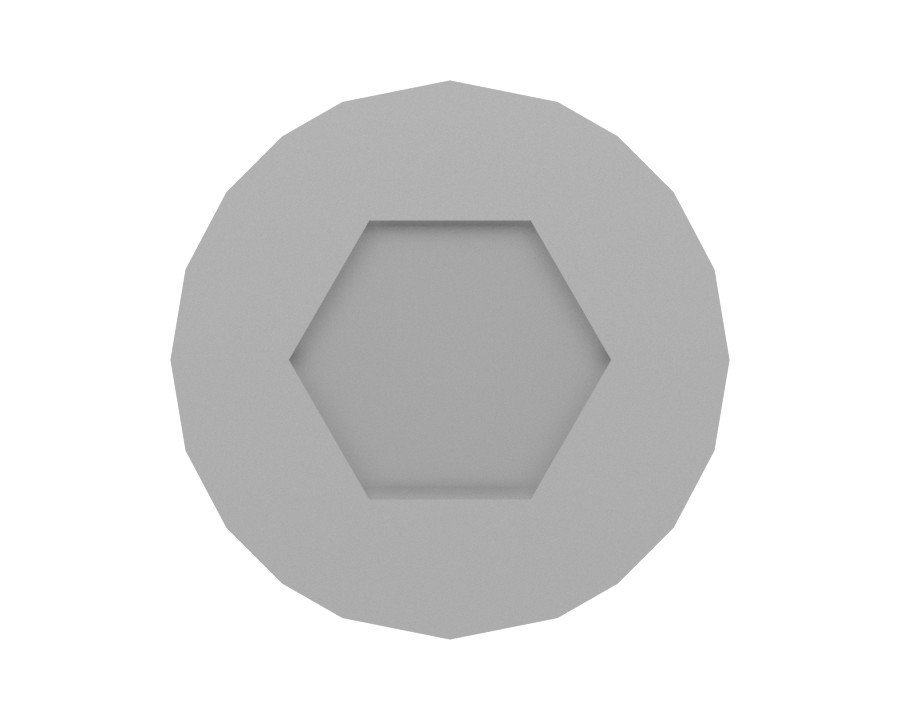

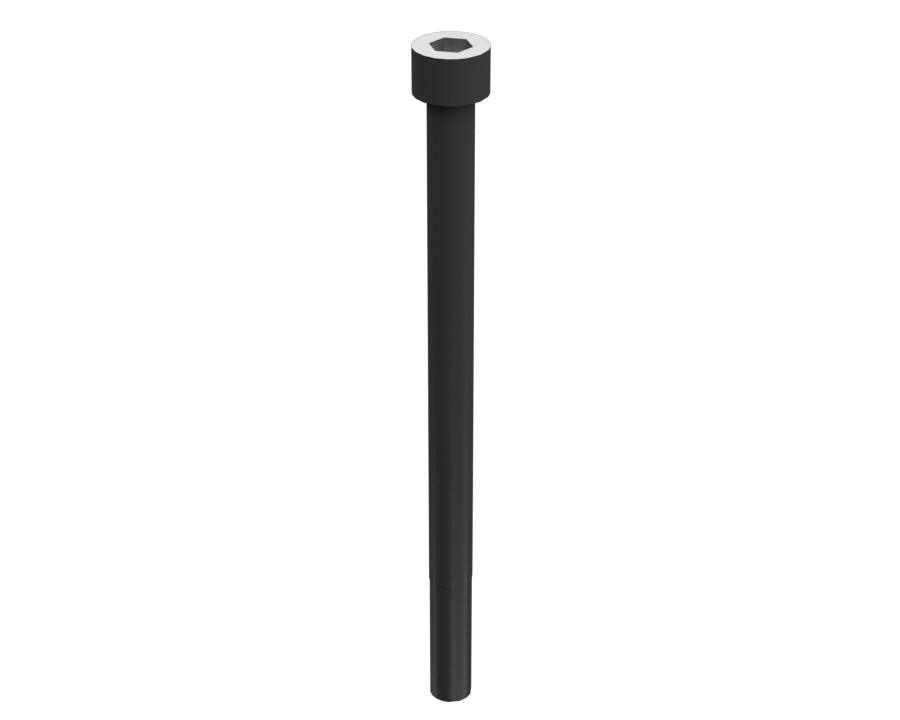

| Bolt Type | Socket Head |
| Thread Size | M10 mm (0 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | None |
| Thread Size (Diameter × Pitch) | M10 × 1.50 mm |
| Bolt Length | 150 mm (5.906 in) |
| Handle Length | 118 mm (4.646 in) |
| Material | STEEL |
Compatible Equipment
- Compactors: CS11, CS12, CB-534D, CP56B, CS56B, CS78B, CS68B, CP54B, CS74B, CB-44B, CS54B, CS79B, CS-583D, CB10, CS64B, CS-54B
- Engines: C32
- Excavators: 320C, 325C, 320C L, 330C L
- Wheel Loaders: 950G, 924K, 938K, 962G, 926M, 938M, 928G
