Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Coating | None |
|---|---|
| Class or Grade | A286 |
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Direction | RH |
| Drive Chain | 14.2875 mm (9/16 in) |
| Hole Thread Pitch | 16 |
| Thread Size | 0.375 mm (0.015 in) |
| Thickness | 8.3344 mm (0.328 in) |
| Height | 0.33 in |

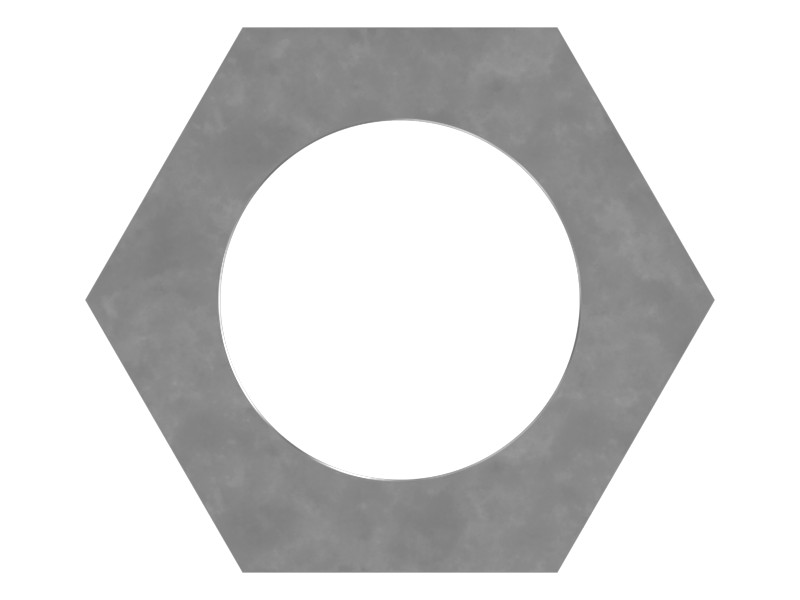

| Nut Model | Hex Nut |
| Thread Size (in – TPI) | 3/8-16 in |
| Material | Stainless Steel |
| Material Description | A286 Austenitic Stainless Steel |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516, G3516C, 3512E
- Engines: C32
- Excavators: 3512C, 3508B, 3516B
