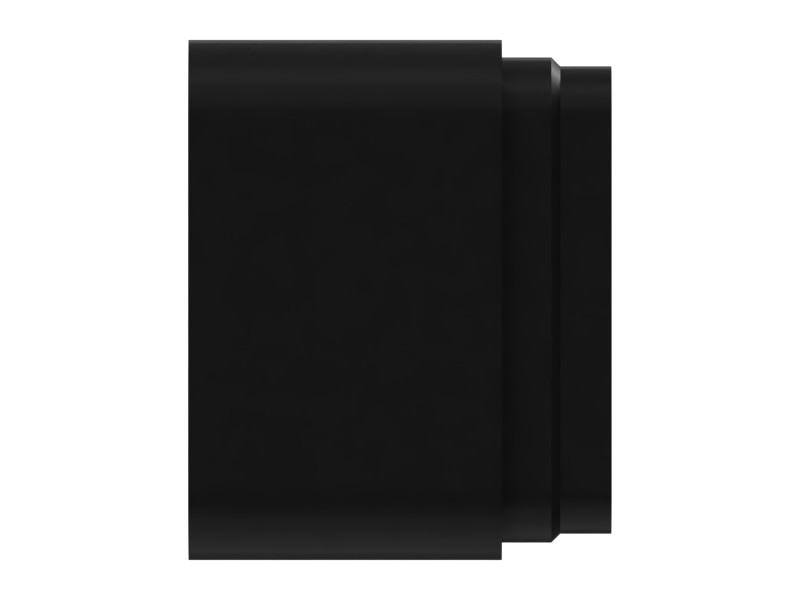

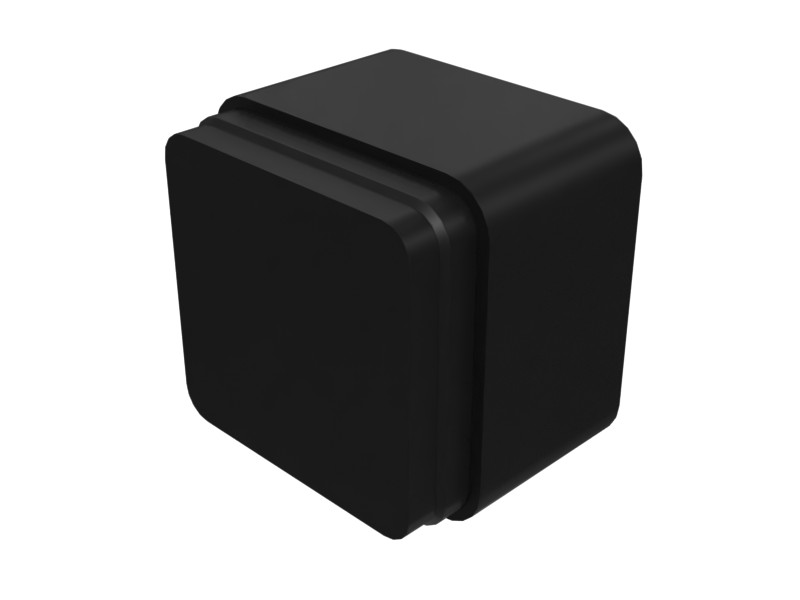

3E-6286 40-Pin Connector Plug
Cat® 40-position connector plug, wire gauge: 20-14 AWG, A key.
Description
Cat plugs (3E-6286) are sliding or threaded disks or cylinders used to seal holes and ports on engine blocks, oil pans, and housings. Plugs are commonly used as shipping plugs or drain plugs.
Features
- 40-position connector plug
- Wire Gauge: 20-14 AWG
- A key
- Rated Current: 13 Amps
- Threaded Insert: M5 X 0.08
- Connector Series: AEC
- IP Rating: IP68
- Operating Temperature Range: -55 to 125 ˚C (-67 to 257 ˚F)
- Length: 46 mm (1.8 in)
- Width: 37 mm (1.4 in)
- Height: 45 mm (1.8 in)
- ROHS compliant
Applications
Properly installed plugs contain or block fluid flow and withstand pressure. They are commonly used to permanently seal holes required for manufacturing or assembling internal components of cylinder blocks and valve bodies and other fluid system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyetherimide Plastic |
|---|---|
| Length | 46 mm (1.8 in) |
| Width | 37 mm (1.4 in) |
| Height | 45 mm (1.8 in) |
| Thread Size | M5X0.8 mm |
Compatible Equipment
- Generator Sets: 3406C, 3512B, G3516
- Cold Planers: PL83
- Engines: C32, C15
- Dozers: D9R, D6T, D11R, D10R
- Excavators: 3516B, 3508B, 385B, 3456
- Wheel Loaders: 992K
- Off-Highway Trucks: 777D, 793F, 785D, 797F, 789D, 793, 785, 789, 793D, 773E, 773D, 771D, 777
Additional information
| Machine Model | 3406C, 3456, 3508B, 3512B, 3516B, 385B, 771D, 773D, 773E, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 992K, C15, C32, D10R, D11R, D6T, D9R, G3516, PL83 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
