Description

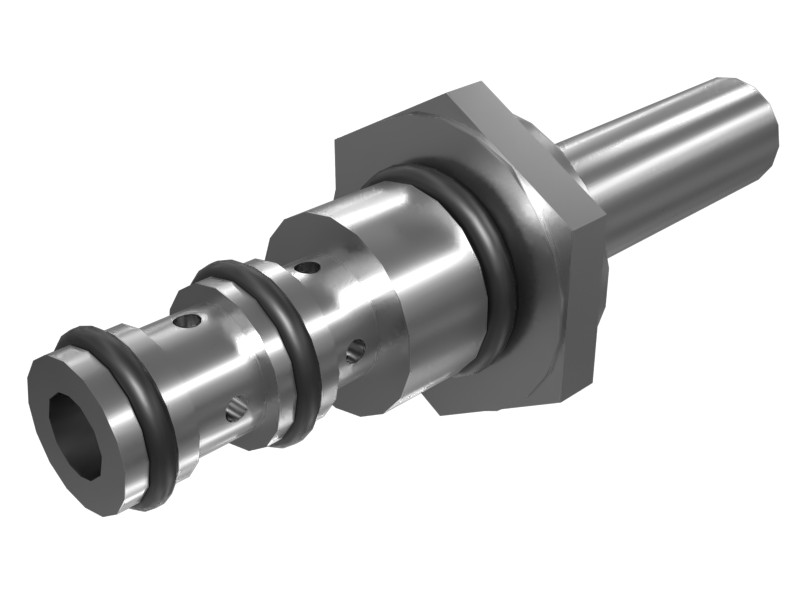

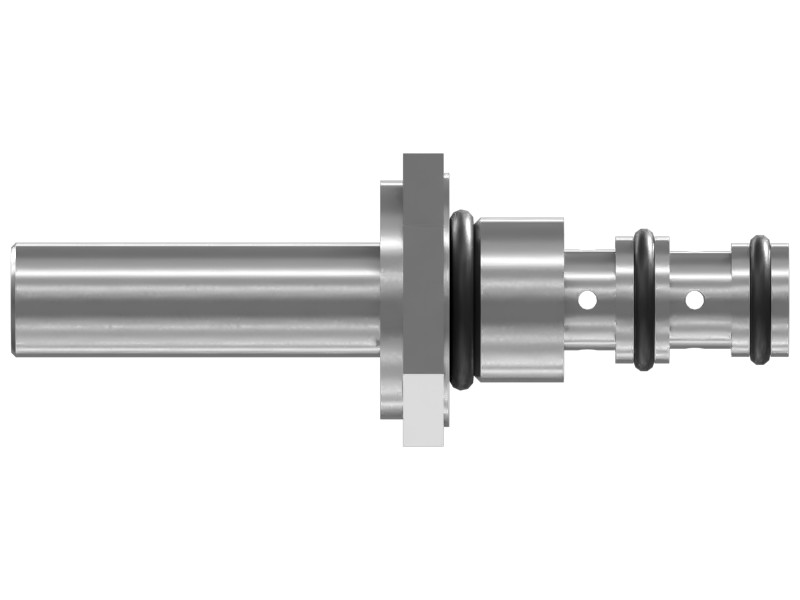

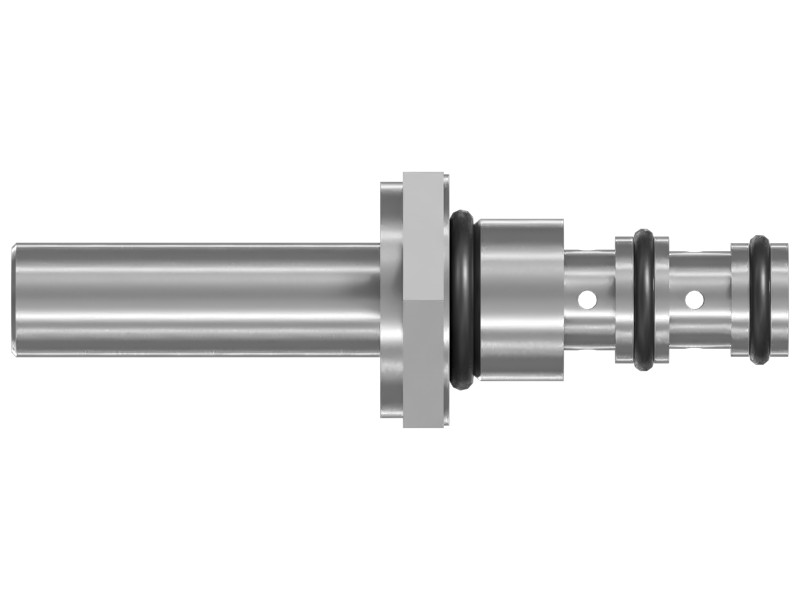

The solenoid valve spool is used in selector and pressure control valve units. It consists of a solenoid coil, a valve body, and a valve plunger. The valve body has an inlet and an outlet that allow fluid to enter and exit the spool. When the solenoid valve coil is energized, the magnetic field attracts the plunger, moving it against a spring or diaphragm to open or close the fluid passage.
Attributes
- Helps control the direction of fluid flow
- Built to exact specifications for durability and reliability
Applications
The solenoid valve spool regulates fluid flow. This type of spool is mainly used in Cat motor graders, backhoe loaders, skidders, wheel loaders, track-type tractors, elevating trucks, paving equipment, material handlers, and powertrains.
Specifications

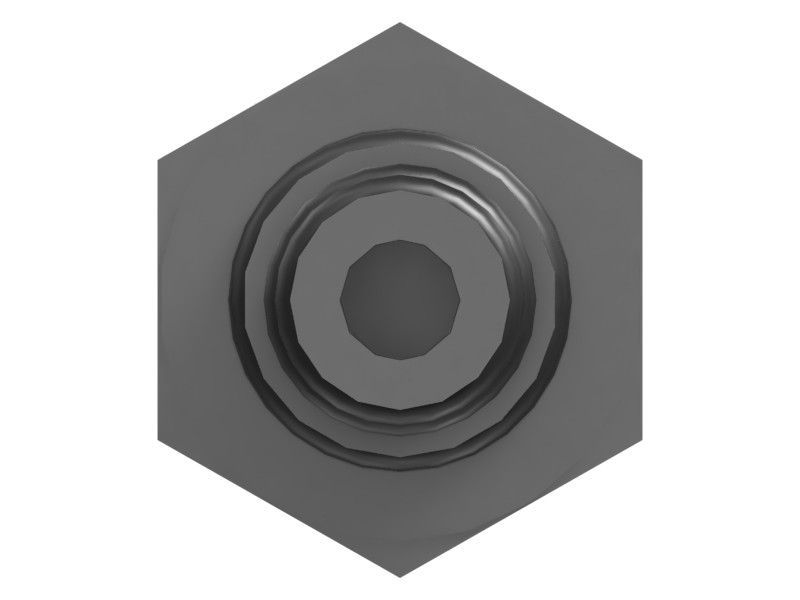

| Hex Size | 28.5 mm (1.12 in) |
|---|---|
| Overall Length | 87 mm (3.43 in) |
| Thread | 1/2 – 20, 3/4 – 16 |
| Weight | 0.11 kg (0.25 lb) |
Compatible Equipment
- Dozers: D8N
- Wheel Loaders: 928G, RM500B, R1700 II
