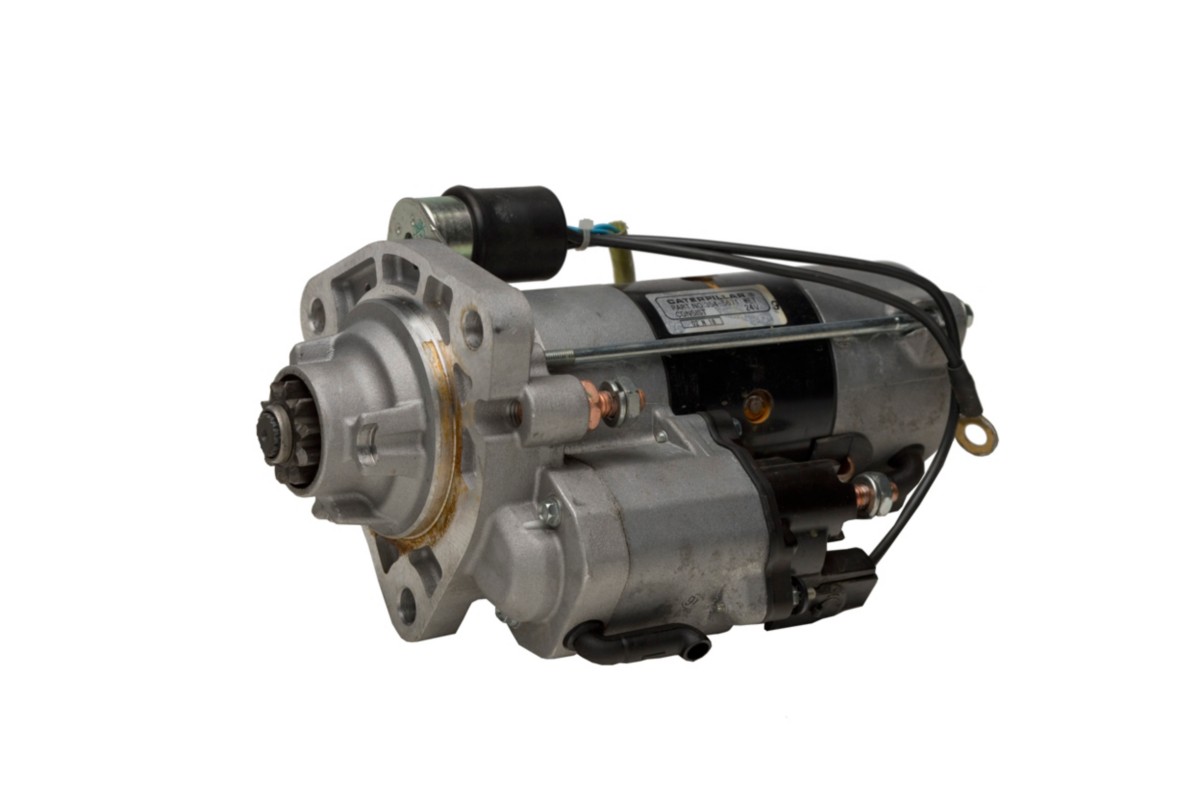

Description
Cat® starters are built to handle the high current conditions encountered when starting a Cat engine up to starting speed.
Features
- Positive-engagement shift mechanism ensures precise pinion-to-ring-gear engagement.
- Seamless one-piece solenoid housing provides corrosion protection.
- Rotatable drive housing allows flexible mounting.
- Brush holder provides constant spring pressure for even wear.
Reman options available.
Specifications
| Current | 220 Amps |
|---|---|
| Mounting Size | SAE No. 1 Bell Housing Nose Cone |
| Mount Circumference | 127.0 mm |
| Electric Starting and/or Prelube | Electric Start |
| Material | Alloy Aluminum |
| Marine Certification | None |
| Pinion Pitch | 8/10 |
| Pinion Teeth | 10/11 |
| Voltage | 12 Volts |
Compatible Equipment
- Engines: C7
- Excavators: 3126
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
