Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.

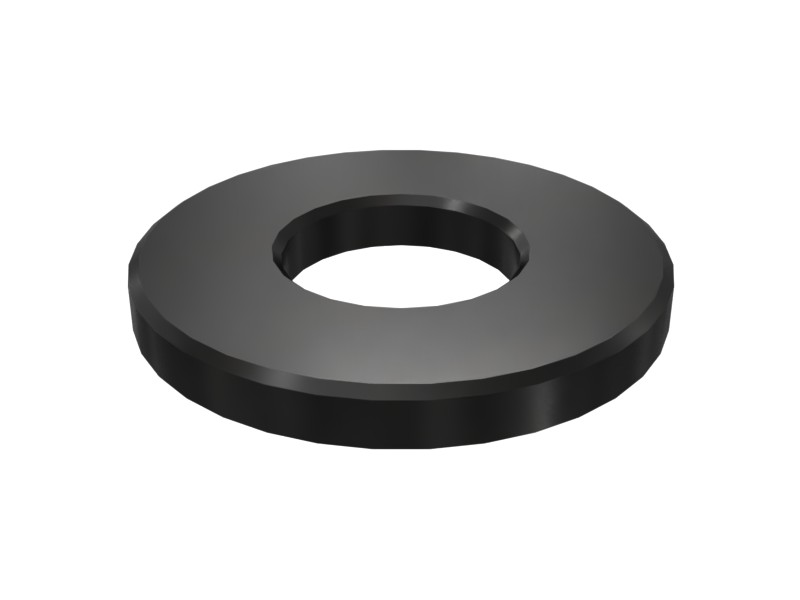

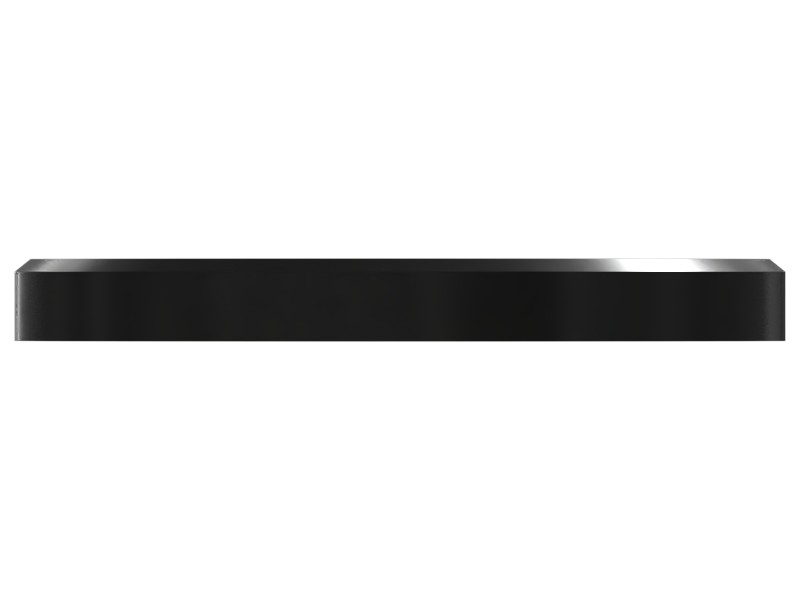

Specifications
| Inside Diameter | 11 mm (0.433 in) |
|---|---|
| Outside Diameter | 25 mm (0.984 in) |
| Material | HARDENED STEEL |
| Gasket Type | Flat Washer |
| Fits Bolt Size | M10 mm (3/8 in) |
| Coating | Zinc phosphate + oil provides corrosion protection up to the point of assembly (painting is recommended for exterior applications). Salt spray resistance: 72 hours with no red rust. Coating color – dark gray to black. |
| Thickness | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: G3516C, 3512E, 3516C, C9, G3516, 3512B
- Track Loaders: 826K, 990K, 816F, 972, 993, 982, 973K, 992, 963K, 994K, 834H, 953D, 963D, 995
- Cold Planers: TH360B, PL61, SE50 VT, PM622, PM620, PL83, SE60 VT XW
- Compactors: 824K, 825K, 834K, 816, 815, 814, C9.3B, C13B, CS-583D, C-9
- Engines: C7, C15, C11, C13, C32, C27, C18, C175-16, C12
- Excavators: 349D2 L, 3126, 336D2, 320D, 349D, 390D L, 349D2, 349F L, 330D L, 385C, 345D, 621H, 349D L, 349E, 345C, 330C, 336D2 GC, 330C L, 336E, 336F L XE, 336D2 L, 336, 336E L, 336E LH, 320D FM, 336D2 XE, 340, 657G, 336E LN, 637G, 345 GC, 352, 350, 355, 3516E, 6040, 6060, 345D L, 3512C, 345C L, 621K, 365B, 390D, 6020B, 349E L, 345B, 3508B, 637E, 340D2 L, 349E L VG, 385C L, 385C FS, 349, 3516B, 350MHPU, 320, 637K, 352F, SE60 V XW, 365B L, 336E H
- Asphalt Pavers: AP655F L, AP655F
- Skid Steer Loaders: 3126B
- Motor Graders: 140K, 120H, 140H, 140G, 16M3, 16H, 16, 18, 14M, 16M, 160K, 12H, 14, 349 GC
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D6R II, D8T, D6R III, D5M, D7R II, D6T LGP, D6R XL, D6T, D6R, D7R, D6N, D7E, D5K XL, D8N, D9T, D6R LGP, D5N, D5K LGP, D6M, D7G2, D8R, D7, D9, D11T, D11R, D10T, D10, D8, D10R, D11, D10T2, D7G
- Wheel Loaders: R1600H, 980H, 972L, 980G, 950H, 962L, 950G, 966F, 926M, 990H, 938K, 966H, 924K, 966K, 950L, 988K, R1700G, R1700K, RM400, 966, 836, 950, 980, 834, 972H, 962G, 966L, 950 GC, 938M, 988H, 980L, R2900 XE
- Off-Highway Trucks: 797F, 785D, 725, 785, 794 AC, 740B, 740, 793F, 773F, 735, 777D, 730, 740 GC, 745, 789, 793, 745C, 796 AC, 798 AC, 777, 793D, 725C2
