Description

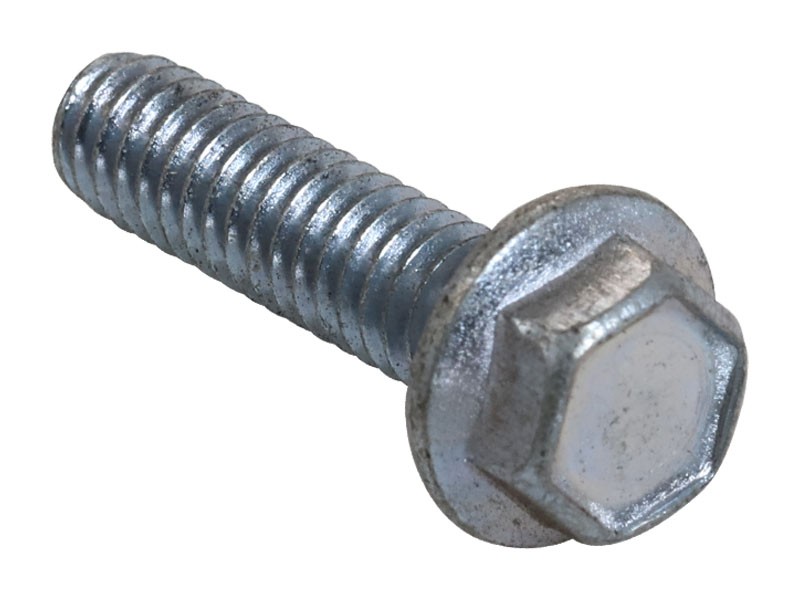

The flange head hex bolt is a threaded bolt featuring a six-sided hex head. They are available in a variety of hex sizes and can be used in custom applications according to their dimensional requirements. These hex head bolt parts are designed for specific applications based on size, strength, clamping force, and past performance.
Attributes
- Provides a larger bearing surface, helping distribute the load more evenly across the surface
- Provides higher strength and resistance to shear and tensile loads
- Six-sided hex head provides greater torque
Applications
Flange head hex bolts are used to secure objects inside or against other objects to prevent loosening.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
| Coating | Zinc |
| Thread Size | 0.250 mm (0.01 in) |
| Thread | Rough Milled |
| Thread Size (in – TPI) | 1/4-20 in |
| Locking Feature | Serrated Face |
| Bolt Length | 25.4 mm (1 in) |
| Bolt Type | Hex Flange Head |
| Handle Length | 3.17 mm (0.12 in) |
Compatible Equipment
- Generator Sets: 3406C, 3406B, 3512B, 3516C, 3512E, G3516, G3516C
- Engines: C32, C27, C18, C175-16
- Excavators: 3516B, 3512C, 3508B
- Off-Highway Trucks: 7495
