Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Used where the clearance between parts is important so that the parts fit together tightly.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | ISO 898-1 Class 12.9 |
|---|---|
| Handle Length | 3.88 mm (0.153 in) |
| Coating | None |
| Bolt Length | 10 mm (0.394 in) |
| Thread Size | M4 mm (0 in) |
| Thread Size (Diameter × Pitch) | M4 × 0.70 mm |
| Locking Feature | None |
| Thread Direction | RH |

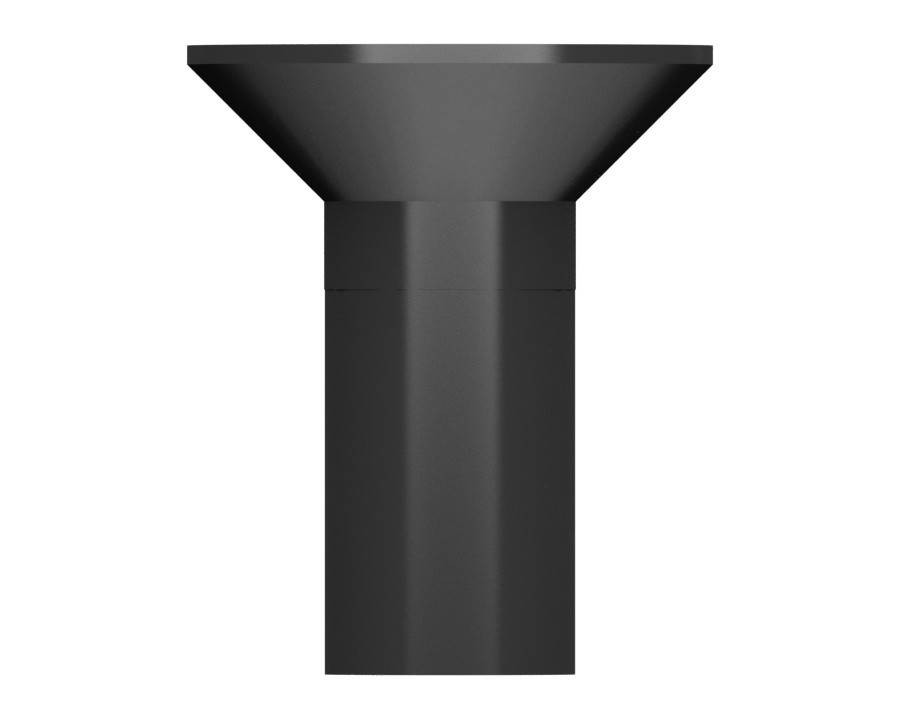

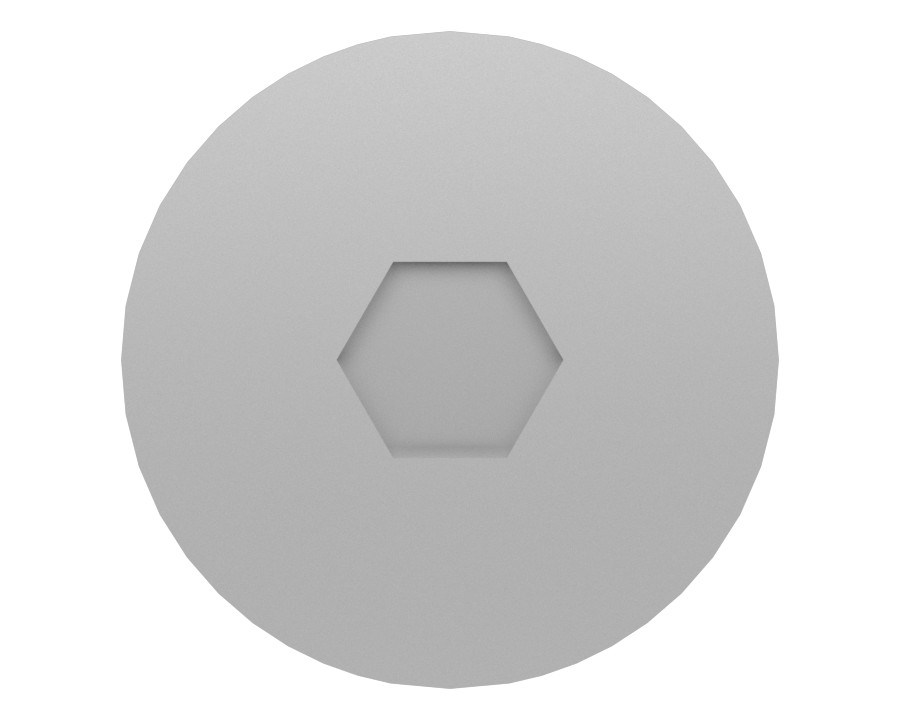

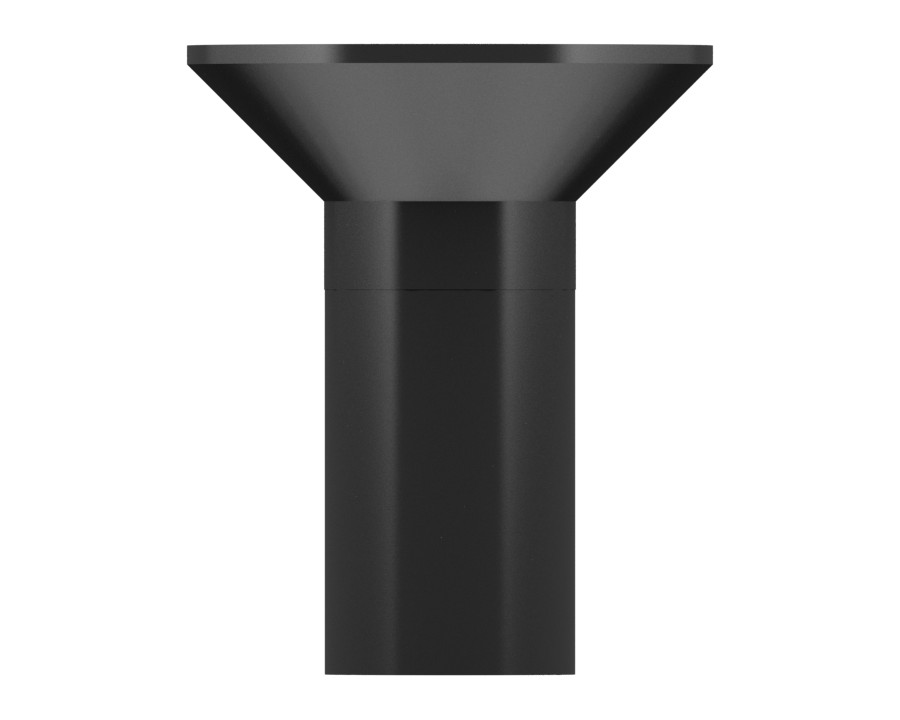

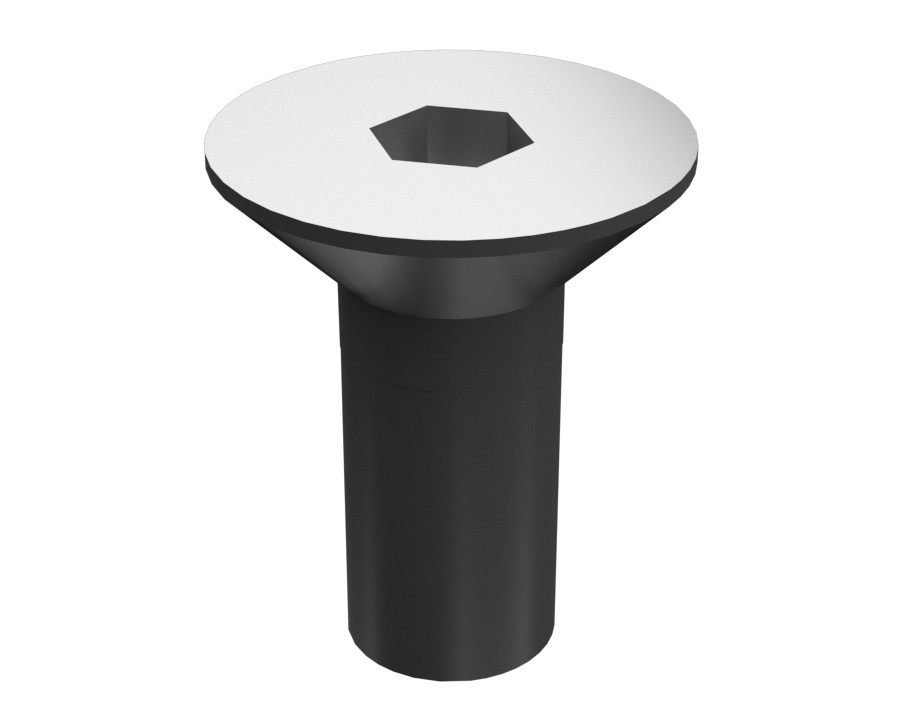

| Bolt Type | Countersunk (Flat) |
Compatible Equipment
- Motor Graders: 14, 16M, 120H, 12K, 140H, 140K, 160K, 16, 14M, 12H, 16M3, 18, 16H, 140G
- Generator Sets: C4.4
- Track Loaders: 826H, 824G, 953D, 826G
- Compactors: CB-44B, CB-66B, CB-64B, CB16, CP12 GC, CS12 GC, CW-34, CP11 GC, CS7, CB15, CB10, CB13
- Engines: C13, C15, C32
- Dozers: D5H, D9R, D6R II, D6R, D7R II, D6M, D8N, D8R, D11N
- Excavators: 6020B
- Wheel Loaders: 966H, 980H, 966K, 962G, 980G, 972H, 950H, 950G, 972G, 906K, 910, RM500B, R1700K, R1700 XE
- Off-Highway Trucks: 793, 789D, 789
Additional information
| Machine Model | 120H, 12H, 12K, 14, 140G, 140H, 140K, 14M, 16, 160K, 16H, 16M, 16M3, 18, 6020B, 789, 789D, 793, 824G, 826G, 826H, 906K, 910, 950G, 950H, 953D, 962G, 966H, 966K, 972G, 972H, 980G, 980H, C13, C15, C32, C4.4, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP11 GC, CP12 GC, CS12 GC, CS7, CW-34, D11N, D5H, D6M, D6R, D6R II, D7R II, D8N, D8R, D9R, R1700 XE, R1700K, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
