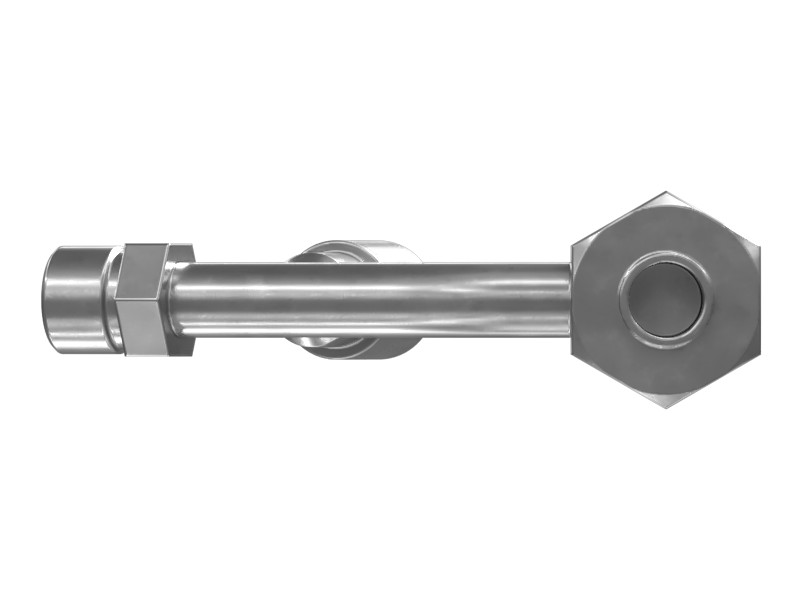

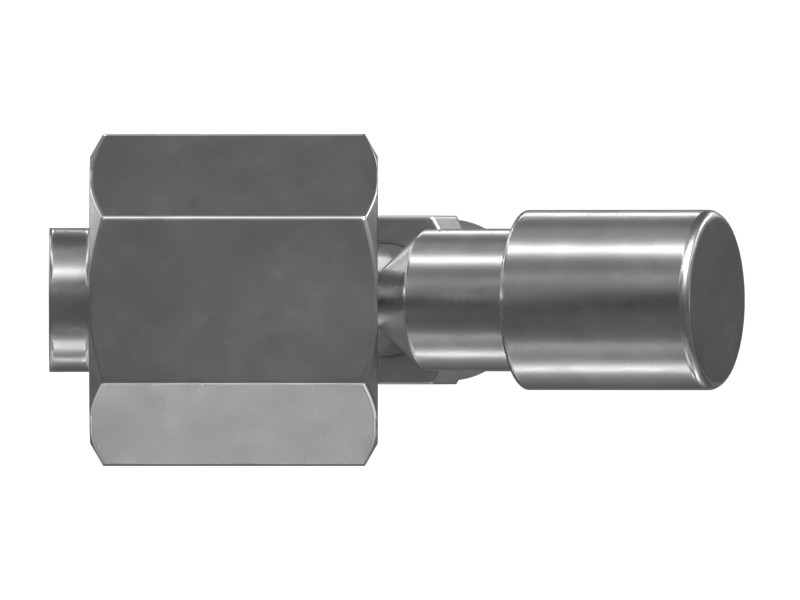

3E-4067 3/4-16 2A Thread Air Conditioner Hose Fitting
Cat® Air Conditioning Elbow Fitting for 10.32 mm ID Hose at Compressor High-Pressure Side Fill Port
Description
Caterpillar has designed a variety of fittings to meet market needs. Cat fittings work as a system with Cat hose and meet specific standards.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Drop Length | 40 mm |
| Type | Fitting |
| Shape | 20 Degrees |
| Length | 102 mm |
| Recommended Hose Size | 10.32 mm |
| Thread Size | 3/4-16 in |
Compatible Equipment
- Motor Graders: 12H, 140H, 140G
- Track Loaders: 816F
- Dozers: D6T, D6R III, D6R II, D6R, D7R, D6R XL, D10N, D10T, D10R
- Excavators: 120 GC
- Wheel Loaders: 966F
Additional information
| Machine Model | 120 GC, 12H, 140G, 140H, 816F, 966F, D10N, D10R, D10T, D6R, D6R II, D6R III, D6R XL, D6T, D7R |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders |
| Part Source | Genuine OEM |
