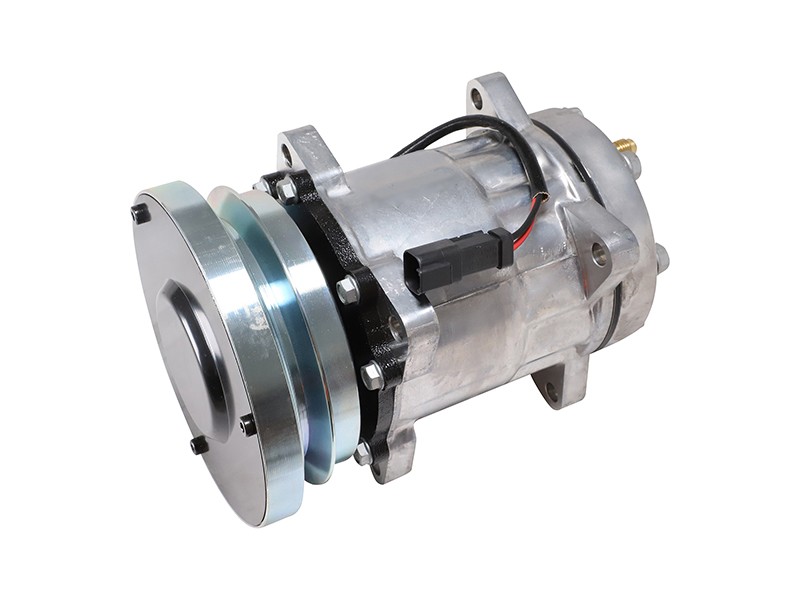

3E-1908 Refrigerant Compressor
Cat® Aluminum Refrigerant Compressor for Use in Operator Cab
Description
The HVAC system provides heating, cooling, and fresh air filtration and/or air recirculation in the operator station of Cat machines. The Cat compressor pressurizes the fluid to maintain flow rate and build the pressure the application requires.
Features
- 7-Cylinder Compressor
- Cast aluminum body
- Clutch Voltage: 12 V
- Belt Type: A (Non-Cogged)
- Refrigerant Compatibility: R134a
- Includes pigtail harness with 2-pin DT connector
- Recommended RPM: 2500±200
- Maximum RPM: 4000
- For use only with systems that provide a low-pressure shutoff switch on the high-pressure side
Applications
The compressor circulates refrigerant throughout the HVAC system of Cat heavy equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Outside Diameter | 153 mm (6 in) |
| Temperature | 95 (Max) °C (203 (Max) °F) |
| Length | 32.8 (Stroke) mm (1.3 (Stroke) in) |
| Connector Type | 2-Pin DT |
| Overall Length | 242 mm (9.5 in) |
| Voltage | 12 (VDC) VAC |
| Material Description | Cast Aluminum |
| Hole Diameter | 29.3 mm (1.2 in) |
| Pin | 2 |
Compatible Equipment
- Compactors: CS12 GC, CP12 GC, CB-534D, CB-564D, CP11 GC, CS11, CS12
- Engines: C11, C13
- Dozers: D5G, D4G, D3G
