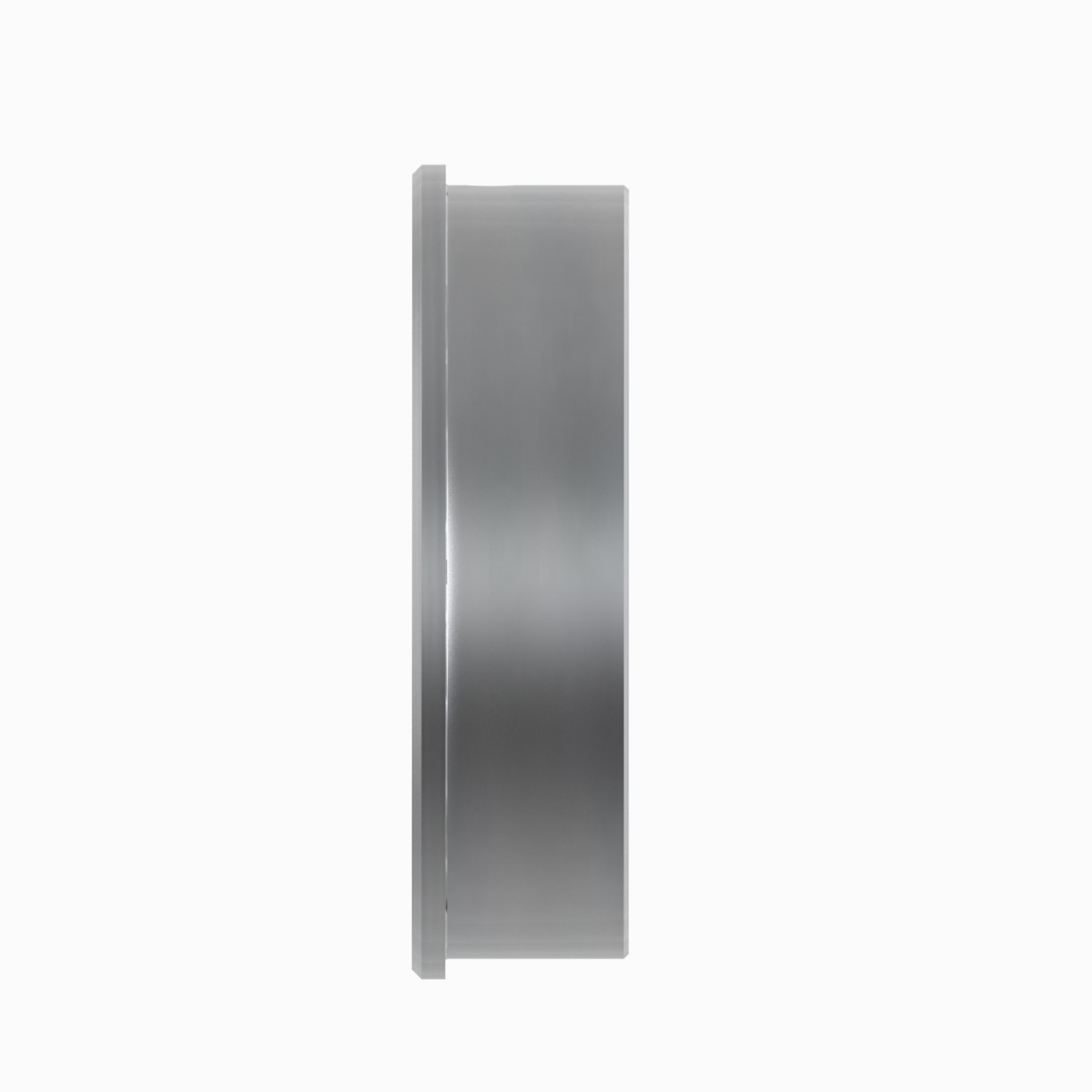

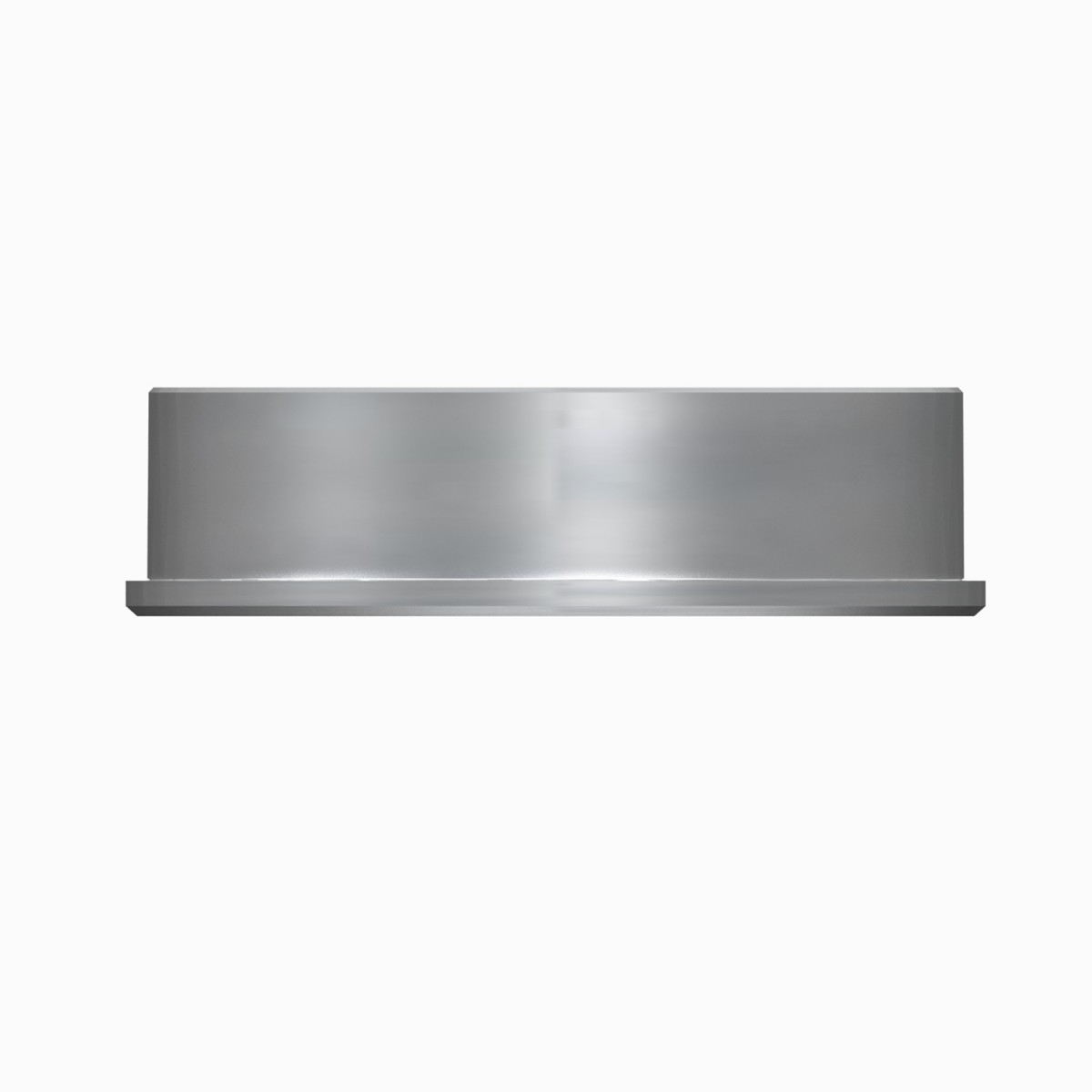

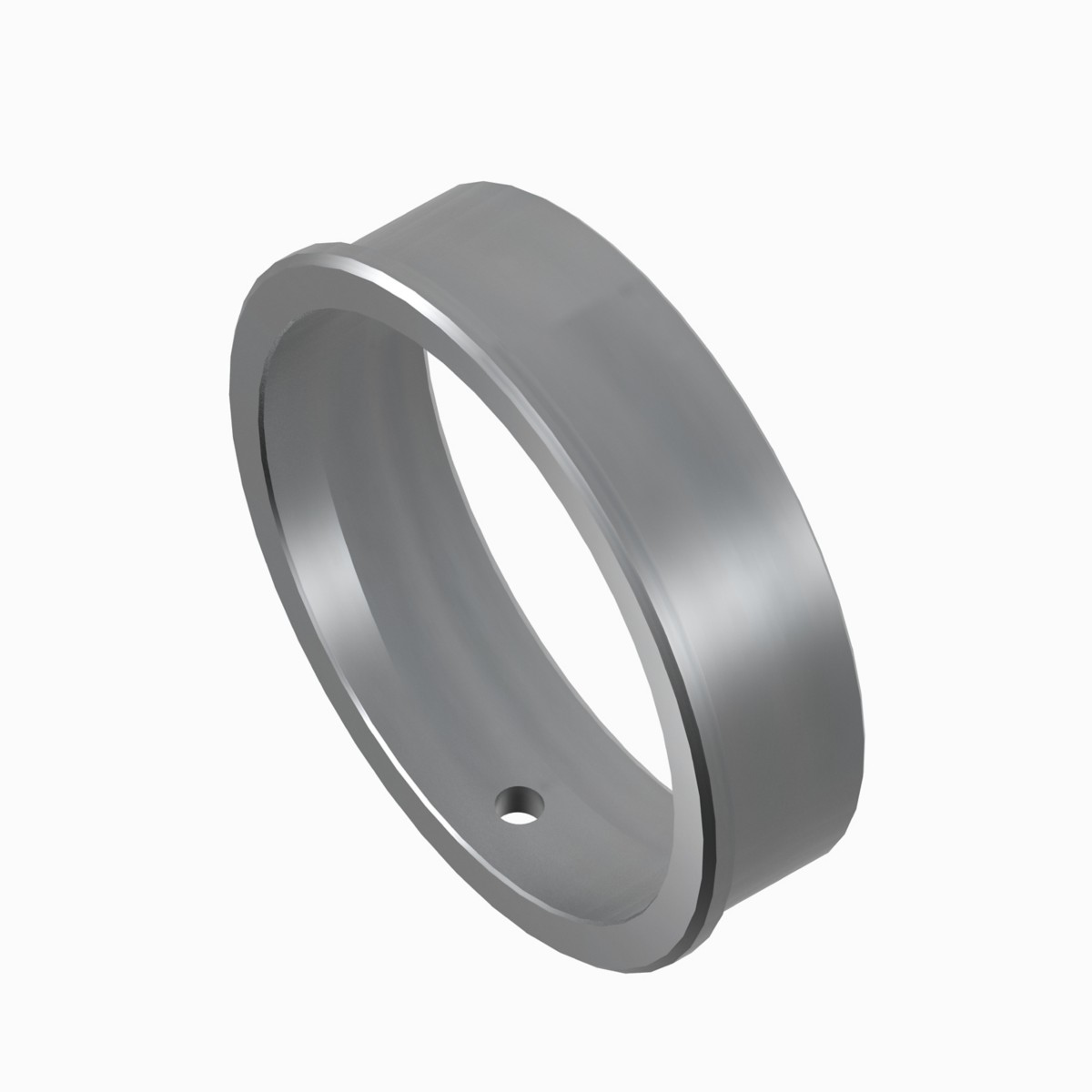

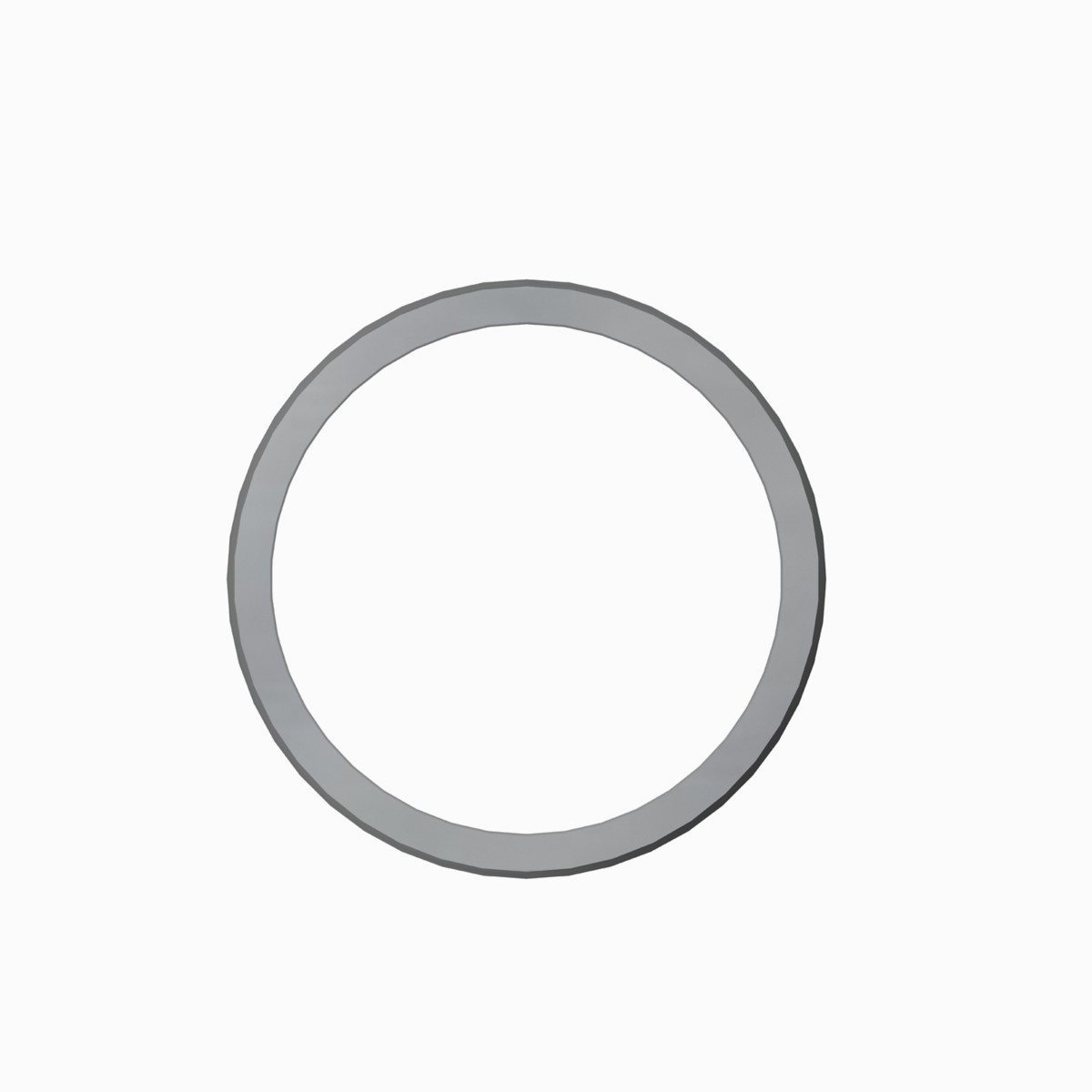

3D-9553 215.963 mm ID Bearing Retainer
Cat® differential and bevel gear bearing cage for improved gear component stability and controlled movement
Description
A cage bearing is a bearing used to support a rotating shaft and reduce friction between moving parts. The cage (also called a retainer or separator) is a bearing component that keeps rolling elements (such as balls or rollers) evenly spaced and separated from one another.
Features
- Designed to handle radial and axial loads.
- Lubrication hole with a diameter of 0.625 inches.
Applications
Cage bearings are used to reduce friction between moving parts in the differential.
Specifications
| Outside Diameter | 254 mm (10 in) |
|---|---|
| Inside Diameter | 215.96 mm (8.5 in) |
| Hole Diameter | 215 mm (8.50 in) |
| Length | 67.56 mm (2.66 in) |
| Height | 68 mm (2.66 in) |
| Thread | 8 5/8-12 NS |
Compatible Equipment
- Excavators: 657G
- Off-Highway Trucks: 777, 777E, 777D, 773, 773D, 773E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
