Description

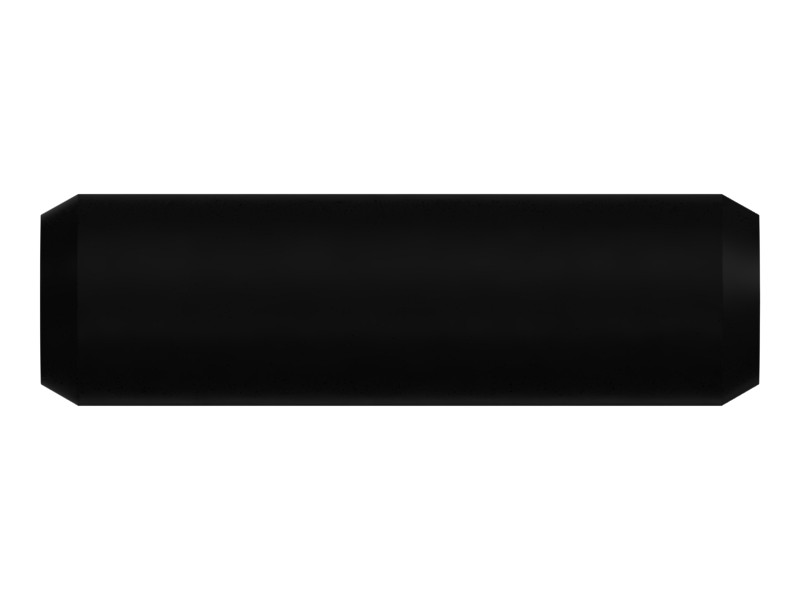

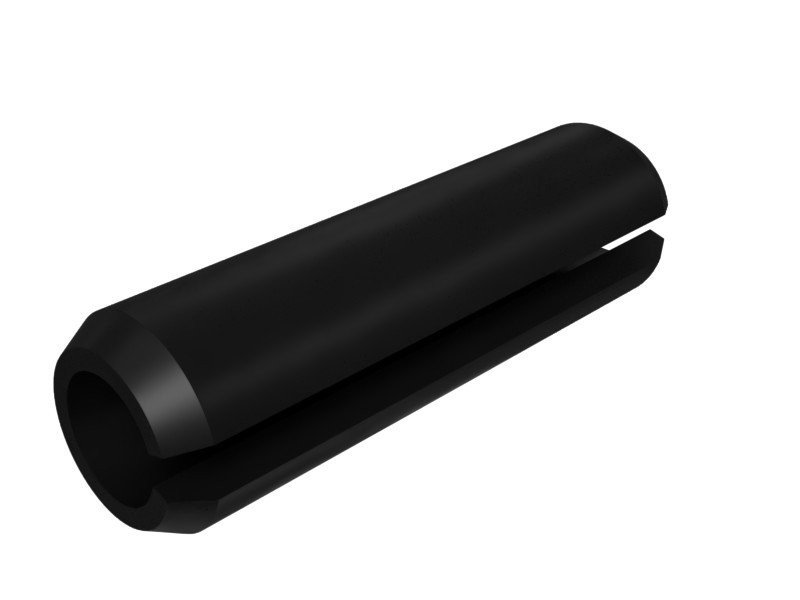

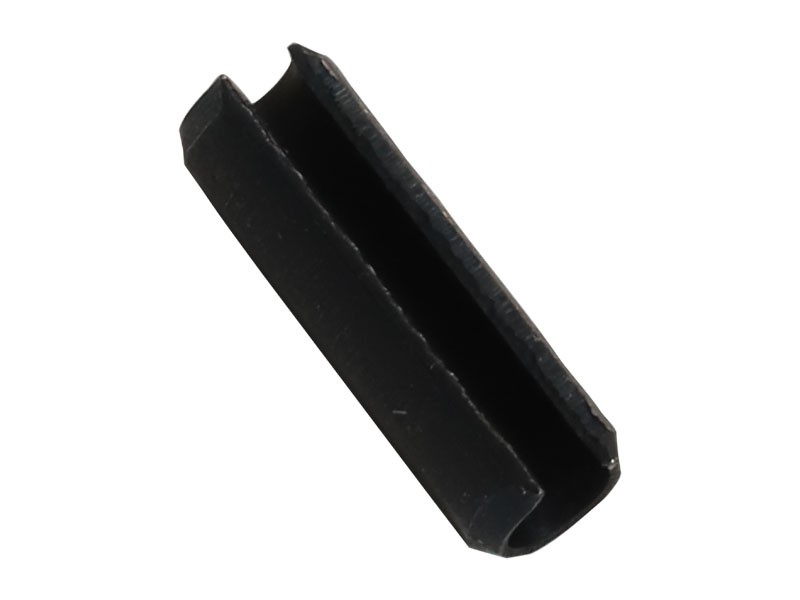

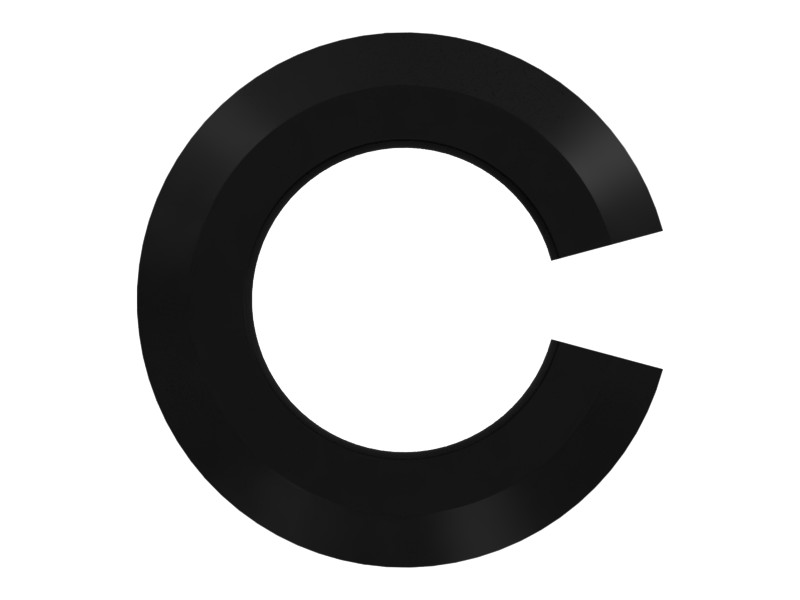

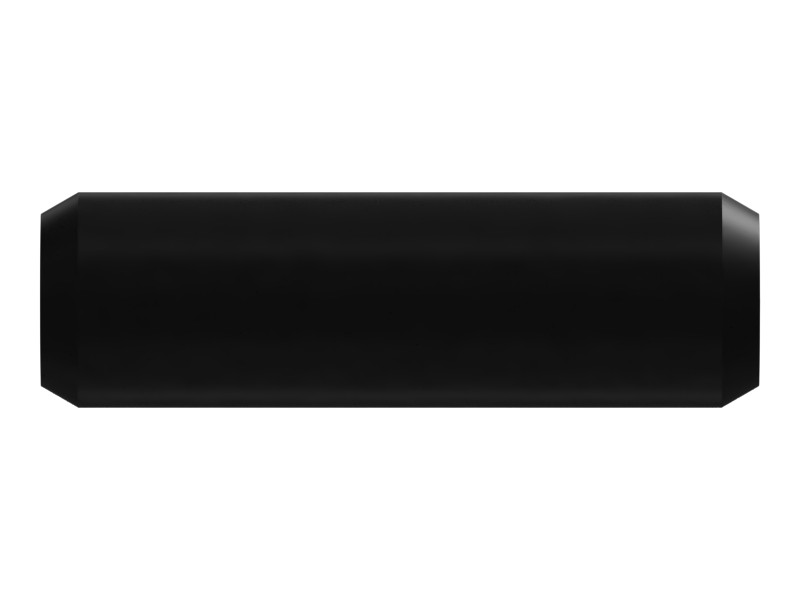

The spring pin is a headless straight pin that is press-fitted into a hole. The slotted spring pin is compressed during installation, and the pin exerts constant pressure against the sides of the hole wall. The coiled spring pin, also known as a roll pin, remains flexible under applied loads.
Specifications
| Pin Length | 10 mm (0.394 in) |
|---|---|
| Pin Outside Diameter | 3 mm (0.118 in) |
| Pin Type | Spring |
| Pin Diameter | 3 mm (0.12 in) |
| Overall Length | 10 mm (0.39 in) |
| Remarks | End Type: Lead Chamfer, Lead Chamfer |
Compatible Equipment
- Track Loaders: 990K, 824G, 834H, 826G, 826H, 995, 993, 994K, 992
- Wheel Excavators: IT14G
- Dozers: D10R
- Excavators: 6015, 385C, 390D, 385C FS, 365B, 365B L, 385B, 6015B, 365C, 385C L, 365C L, 621G, 374D L, 390D L
- Wheel Loaders: 992K
- Off-Highway Trucks: 785D, 777, 793D, 773, 798 AC, 773D, 773F, 796 AC, 771D, 772G, 789D, 770G, 793F, 797F, 775G, 777D, 773E, 785, 789, 794 AC, 777E, 793
- Asphalt Pavers: AD63
Additional information
| Machine Model | 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 6015, 6015B, 621G, 770G, 771D, 772G, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 824G, 826G, 826H, 834H, 990K, 992, 992K, 993, 994K, 995, AD63, D10R, IT14G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
