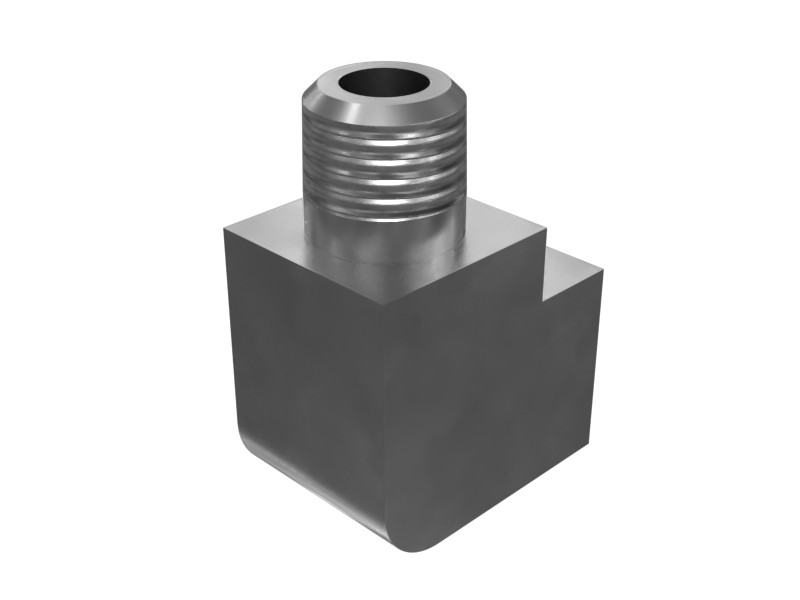

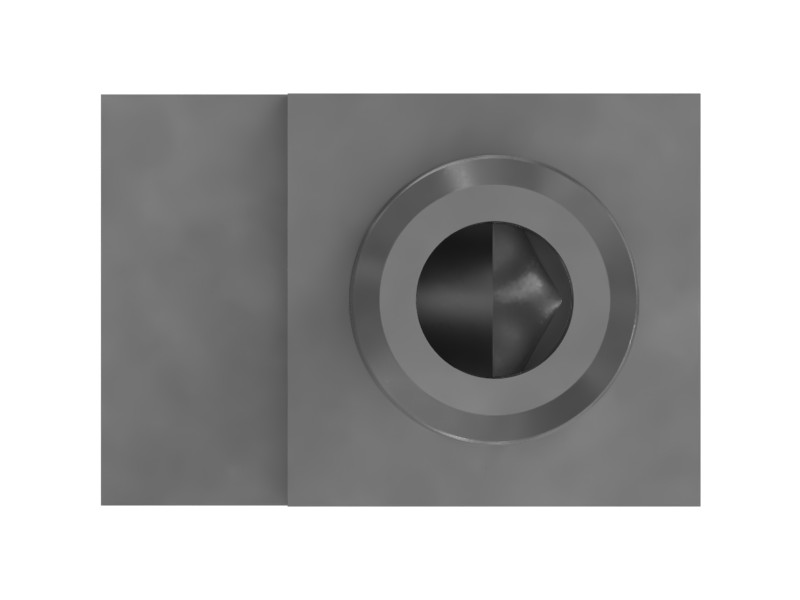

Description
Cat fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Each Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, installation torque capability, and rust protection, ensuring long-lasting durability and proper machine operation.
Features
- Material: Brass•
End 1: NPTF Port
- End 2: Male Thread-NPTF
- End 1 Thread Size: 1/8-27
- End 2 Thread Size: 1/8-27
Applications
Adapters are designed to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious injury or death, property damage, or component and machine system failure. Cat® hose assembly products are designed and tested as a system to achieve reliable connections, maximizing hydraulic system safety and reliability. In addition, use of properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to specification. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in hose assemblies that are unreliable, unsafe or perform poorly. Caterpillar does not recommend or endorse this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Material Description | Brass |
Compatible Equipment
- Motor Graders: 18, 16, 120, 12H, 140G, 140H, 120H, 12K, 160K, 16M3, 16H, 140K
- Generator Sets: 3512B, 3516C, G3516
- Wheel Excavators: MD6310, MD6250, M315D, MD6200
- Compactors: 815, 814, 816
- Dozers: D10, D6R, D6T, D5M, D7G, D6R III, D5N, D4E, D5K XL, D6M, D6N, D5H, D6T LGP, D6R II, D5K LGP
- Excavators: 3516B, 3508B, 621G, 3512C, 637E, 637G, 3516E, 320D FM, 637K, 313F L, 315F LCR, 320D
- Wheel Loaders: 986K, 982M, 980M
- Off-Highway Trucks: 793, 794 AC, 797F, 773, 777, 793F, 785, 798 AC, 785D, 789, 796 AC
Additional information
| Machine Model | 120, 120H, 12H, 12K, 140G, 140H, 140K, 16, 160K, 16H, 16M3, 18, 313F L, 315F LCR, 320D, 320D FM, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 621G, 637E, 637G, 637K, 773, 777, 785, 785D, 789, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 980M, 982M, 986K, D10, D4E, D5H, D5K LGP, D5K XL, D5M, D5N, D6M, D6N, D6R, D6R II, D6R III, D6T, D6T LGP, D7G, G3516, M315D, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
