Description

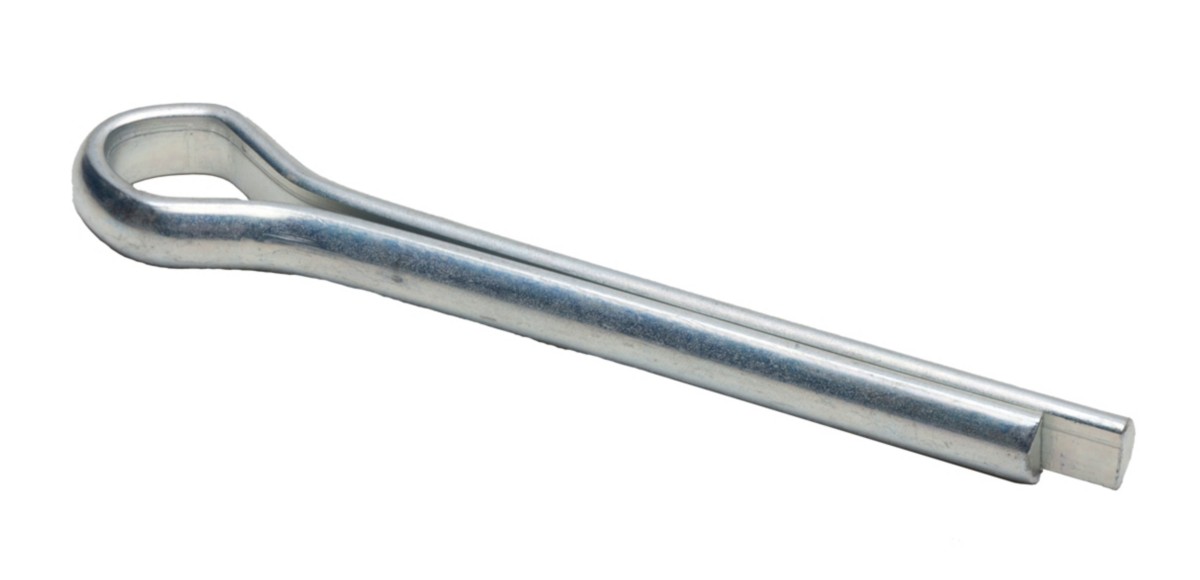

The cotter pin is a two-piece pin made from a half-round wire folded in the middle and bent into a loop to form the head. After installation, the legs of the pin can be bent to hold the pin in place. Cotter pins are designed for use with the clevis pins included here, for pin bolt and nut assemblies in general applications, or other types of free-positioned pin assemblies.
Features
- Material: Steel
- End Type: Mitered
- Pin Diameter: 12.7 mm (0.5 in)
- Pin Length: 88.9 mm (3.47 in)
Applications
Used in most machine and shop applications.
Specifications
| Retaining Pin Type | Cotter Hair |
|---|---|
| Wire or Pin Diameter | 12.7 mm (0.5 in) |
| Pin Length | 88.9 mm (3.5 in) |
| Pin Diameter | 12.7 mm (0.5 in) |
| Length | 88.9 mm (3.47 in) |
| Material Description | Steel |
| Cotter Pin End Type | Mitered |
| Pin Diameter – A | 1/2 in |
| Pin Length – B | 3 1/2 in |
| Pin Type | Cotter Pin |
Compatible Equipment
- Dozers: D7G2, D7G
