Description

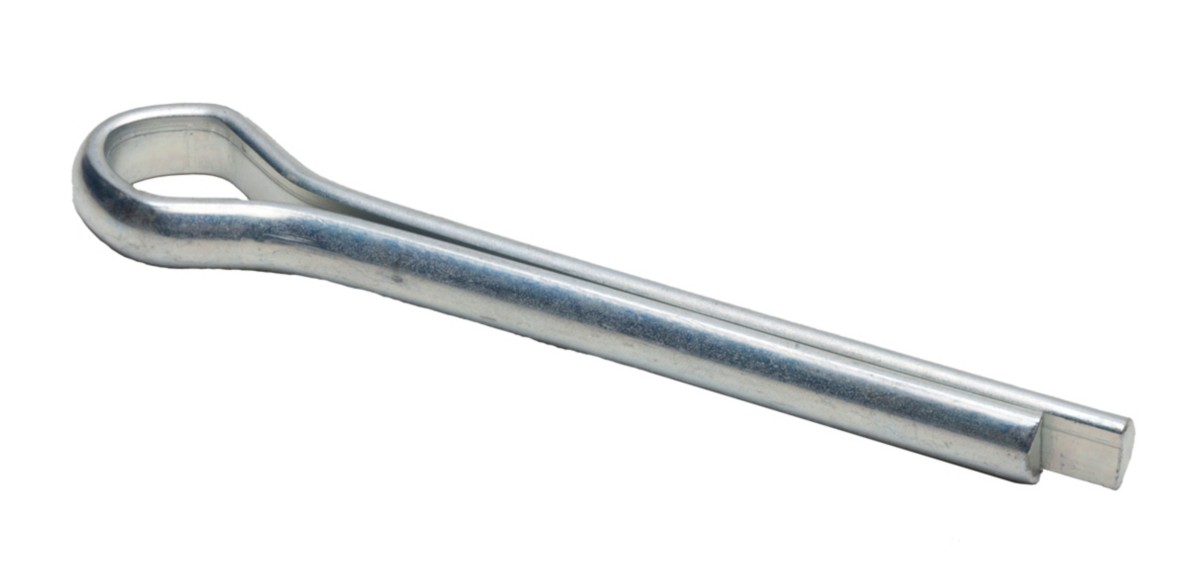

Cotter pins are used to secure clevis pins or lock castle nuts. Split pins have two long, bent prongs that lock them in place. Hairpin cotter pins, circle cotter pins, and ring clip cotter pins can be used without bending. Easy to install and remove, these clip pins are suitable for light-load applications.
Specifications
| Pin Type | Cotter Pin |
|---|---|
| Pin Diameter – A | 5/32 in |
| Pin Length – B | 1 1/2 in |
| Cotter Pin End Type | Square End |
| Retaining Pin Type | Cotter Hair |
| Wire or Pin Diameter | 3.97 mm (0.156 in) |
| Pin Length | 38.1 mm (1.5 in) |
| Type | Split |
| Material | Alloy Mixed: Metal |
| Coating | Zinc Plated |
| Length | 38 mm (1.5 in) |
| Pin Diameter | 4 mm (0.16 in) |
| Remarks | Point Type: Square |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C9
- Track Loaders: 824C
- Compactors: C9.3B, C13B, C-9
- Engines: C13, C11, C7, C18
- Excavators: 3126, 320C, 637E, 637G, 657G, 621G, 320D L
- Asphalt Pavers: AP355F, AP300F
- Skid Steer Loaders: 3126B, 272D3 XE, 299D3 XE, 272D3
- Motor Graders: 16M, 120H, 16, 12H, 14M, 140H, 16H
- Dozers: D4E, D7G
- Compact Track Loaders: 299D3
- Wheel Loaders: 950, 966F, 910, 834, 980
- Off-Highway Trucks: 773
Additional information
| Machine Model | 120H, 12H, 140H, 14M, 16, 16H, 16M, 272D3, 272D3 XE, 299D3, 299D3 XE, 3126, 3126B, 320C, 320D L, 3406B, 3406C, 621G, 637E, 637G, 657G, 773, 824C, 834, 910, 950, 966F, 980, AP300F, AP355F, C-9, C11, C13, C13B, C18, C7, C9, C9.3B, D4E, D7G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
