Description

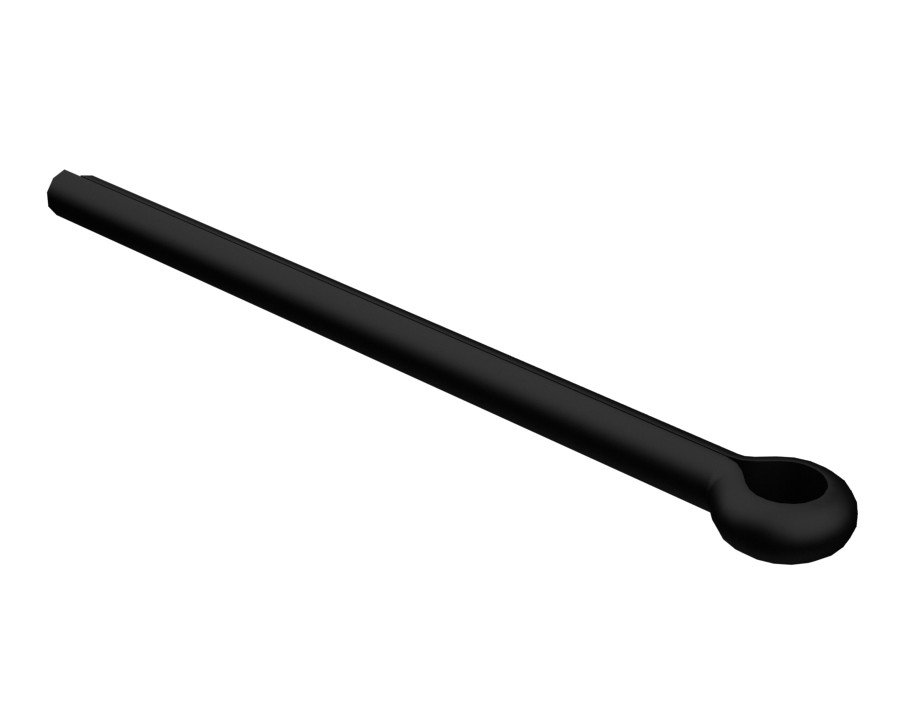

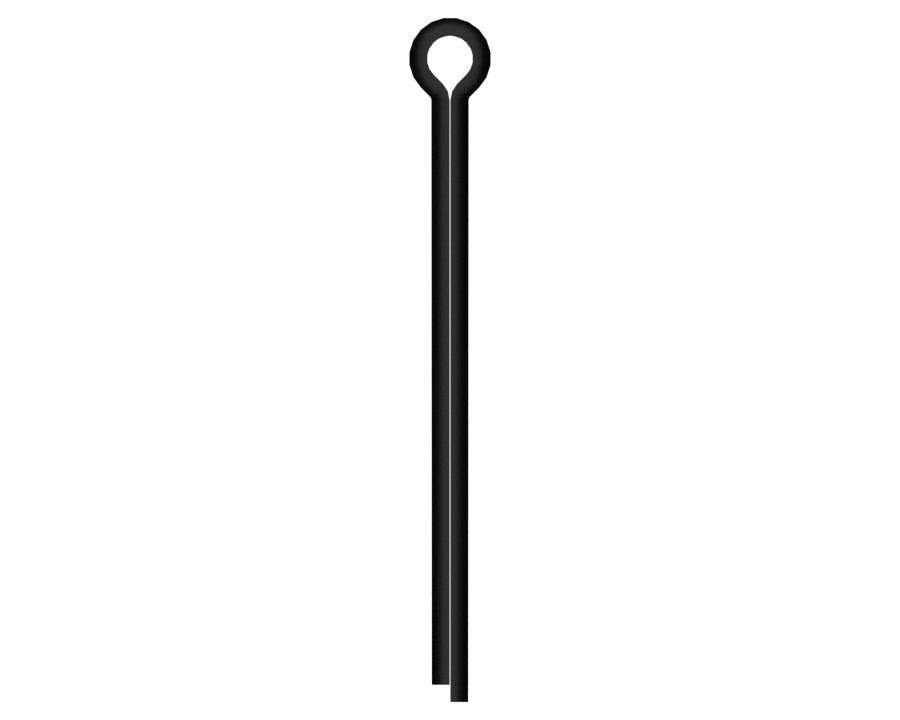

The cotter pin is a two-piece pin made from a half-round wire folded in the middle and bent into a loop to form the head. After installation, the legs of the pin can be bent to hold the pin in place. Cotter pins are designed for use with the clevis pins included here, for pin bolt and nut assemblies in general applications, or other types of free-positioned pin assemblies.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Wire or Pin Diameter | 3.17 mm (0.125 in) |
| Retaining Pin Type | Cotter Hair |
| Pin Length | 50.8 mm (2 in) |
| Material Description | Steel |
| Size | Steel Cotter Pin mm |
| Remarks | Overall Length: 50.8, Pin Diameter: 3.175 |
| Cotter Pin End Type | Mitered End |
Compatible Equipment
- Motor Graders: 120, 16, 140G, 16M, 14M
- Generator Sets: 3512B
- Track Loaders: 992
- Wheel Excavators: MD6250, MD6200
- Dozers: D7G, D4E, D10
- Excavators: 3516E
- Wheel Loaders: 992C, 834
- Off-Highway Trucks: 773, 7495, 797F
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 120, 140G, 14M, 16, 16M, 3512B, 3516E, 7495, 773, 797F, 834, 992, 992C, AP-600D, D10, D4E, D7G, MD6200, MD6250 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Generator Sets |
| Part Source | Genuine OEM |
