Description

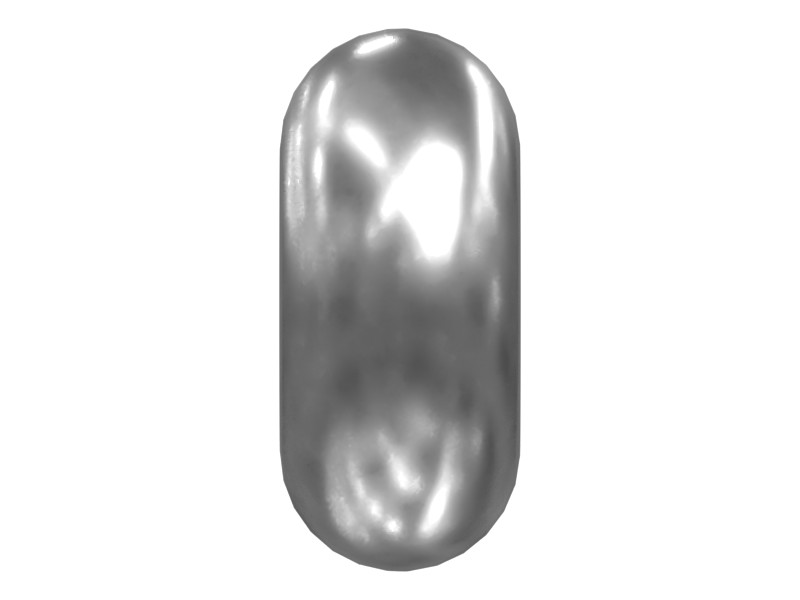

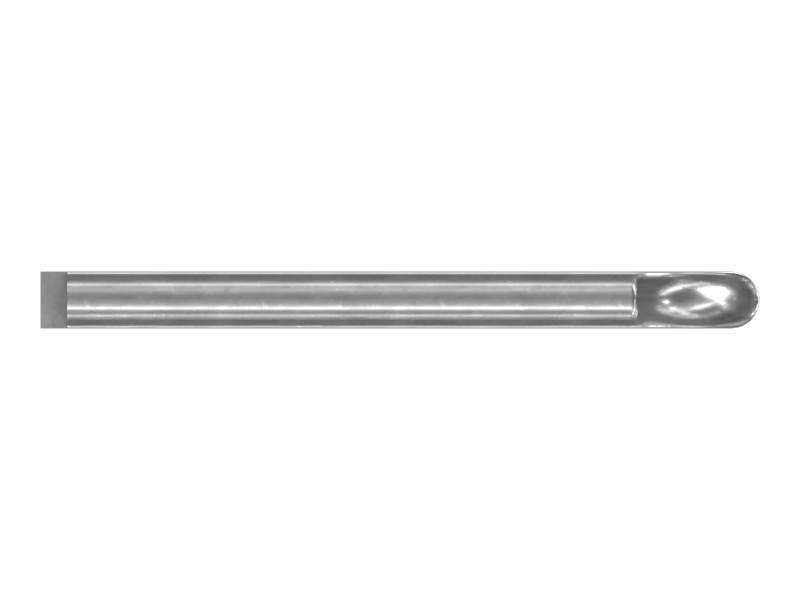

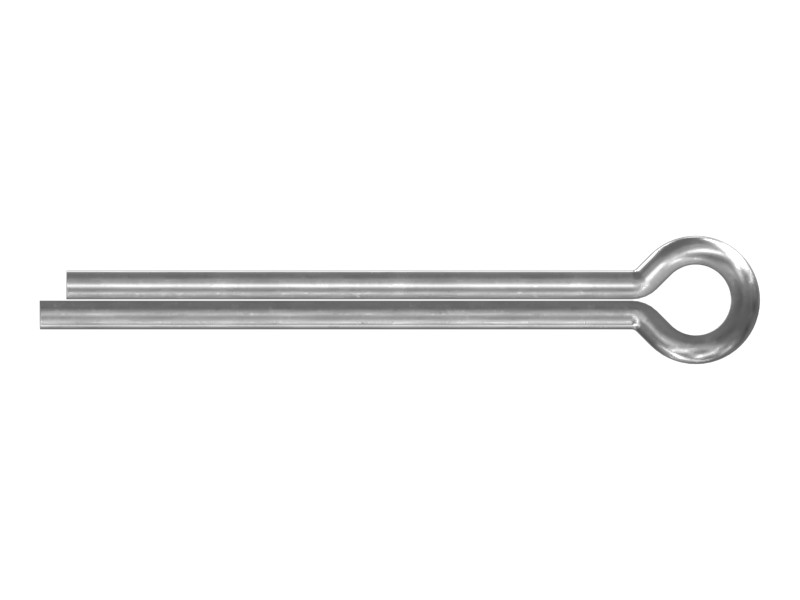

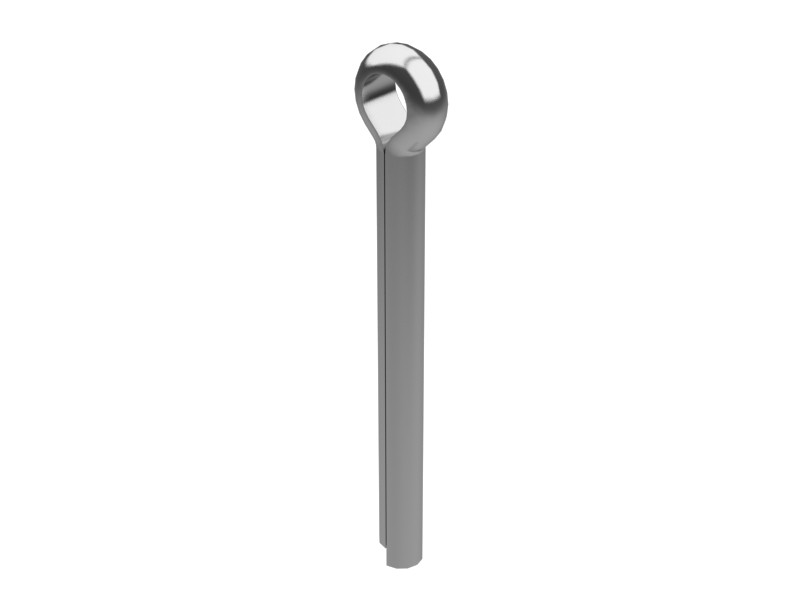

The cotter pin is a two-piece pin made from a half-round wire folded in the middle and bent into a loop to form the head. After installation, the legs of the pin can be bent to hold the pin in place. Cotter pins are designed for use with the clevis pins included here, for pin bolt and nut assemblies in general applications, or other types of free-positioned pin assemblies.
Features
- Material: Steel
- End Type: Square End
- Galvanized
- Pin Diameter: 3.18 mm (0.125 in)
- Pin Length: 31.75 mm (1.25 in)
Applications
Used in most machine and shop applications.
Specifications
| Material | — |
|---|---|
| Pin Length – B | 1 1/4 in |
| Pin Diameter – A | 1/8 in |
| Pin Type | Cotter Pin |
| Cotter Pin End Type | Square End |
| Length | 31.7 mm (1.25 in) |
| Material Description | Steel |
| Pin Diameter | 3.2 mm (0.13 in) |
| Retaining Pin Type | Cotter Hair |
| Pin Length | 31.75 mm (1.25 in) |
| Wire or Pin Diameter | 3.18 mm (0.125 in) |
Compatible Equipment
- Generator Sets: C9, 3512B, 3406B, 3406C
- Track Loaders: 992, 824C
- Cold Planers: PM620, PM622, PL72, SE50 VT, PL83, PL87, SE60 VT XW
- Compactors: 816
- Engines: C15, C27, C32, C7, C18
- Excavators: 390F L, 320D2, 336D, 326D2 L, 349D, 349D2, 390D L, 320D, 329D, 329D2, 349D2 L, 336D2, 308D, 329D2 L, 326D2, 374D L, 330D L, 313, 313 GC, 316 GC, 313D2, 320D3 GC, 320D FM, 315C, 312E, 320D L, 320C, 314D LCR, 313D2-GC, 336D L, 323D2 L, 330D, 323D L, 318D L, 336D2 L, 320D RR, 349D L, 345C, 385C L, 385C, 385B, 3516B, 390D, 345B, 345D L, 365C, 385C FS, 365B L, 120 GC, 335F LCR, 330D2, 312C, 320D GC, 324D L, 330C L, 325C L, 325D L, 320D2 L, 314D CR, 324D, 312D L, 312D, 329D L, 315D L, 318D2 L, 312D2 L, 325D, 325C, 315F LCR, 312D2 GC, 330C, 311D LRR, 345C L, 365B, 349E, 349E L, 340D2 L, 365C L, 323 GX, 316 GX, 312 GX, 312C L, 328D LCR, 311C, 320D2 GC, 313D2 GC, 318D2, 312E L, 323, 314C, 345D, 352F, 330D2 L, 320 GX, 349E L VG, 320B, 312D2, 313D, 311B, 312 GC, 320, 325B, 3508B, M325D L MH, 336D2 XE, 320 GC, 313F LGC, 320D3, 336D2 GC, 323D2, 390F, SE60 V XW, 340D L, 325B L, 3512C, 323D, 330B, 326D L, 320C L
- Asphalt Pavers: AD30, AP655F L, AD63, AP655F, AD45
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 140 GC, 120, 140G, 120H, 16, 12H, 140H, 160K, 140K, 12K, 14
- Wheel Excavators: MD6250, MD6310, M313D, M315GC, M315D, M322D, MD6200, M315
- Dozers: D4E, D7H, D8R, D10, D7G, D4, D11N, D9, D5H, D6K2, D6G, D6G2 LGP, D7E, D8N, D7G2, D6G2 XL
- Mini Excavators: 307D, 307C, 306, 307B, 307, 305.5
- Wheel Loaders: 834, 910, 950L, 966L, 972L, 836, 980, 962L, 950G, 980L, R1700 XE, 972G, R1700K, R1300G, R2900 XE, 962G
- Off-Highway Trucks: 777, 777D, 797F, 773, 789, 785, 793F, 793, 793D, 7495, 794 AC, 796 AC
