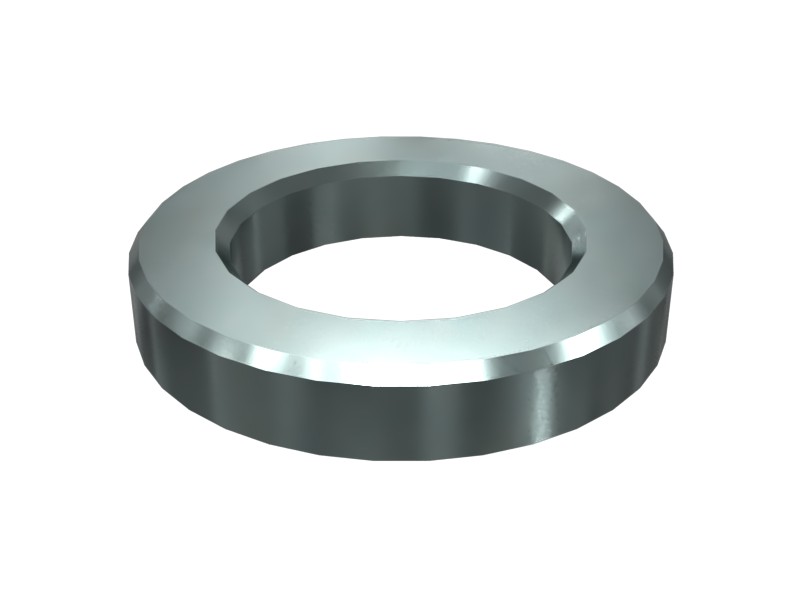

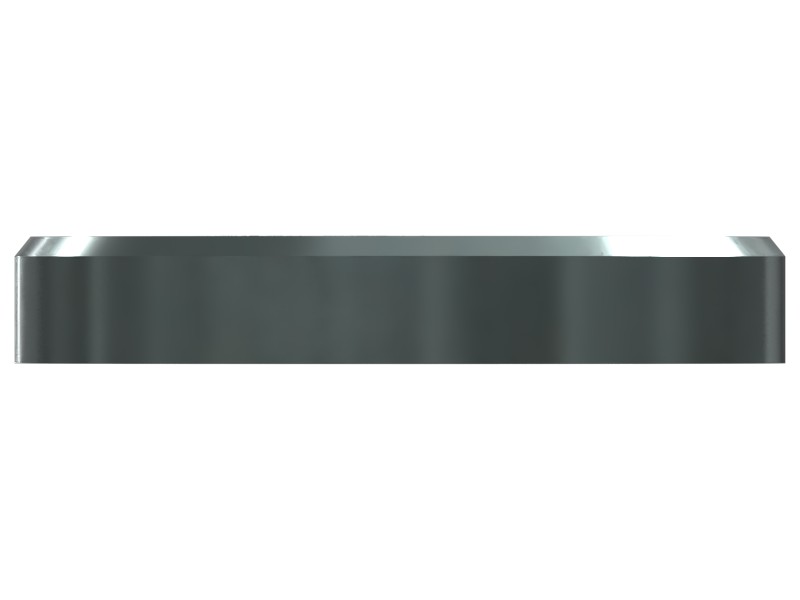

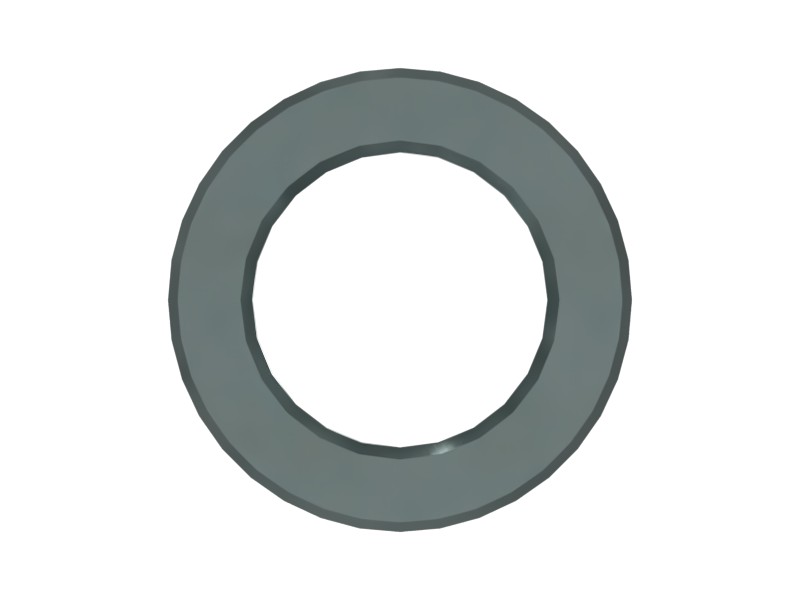

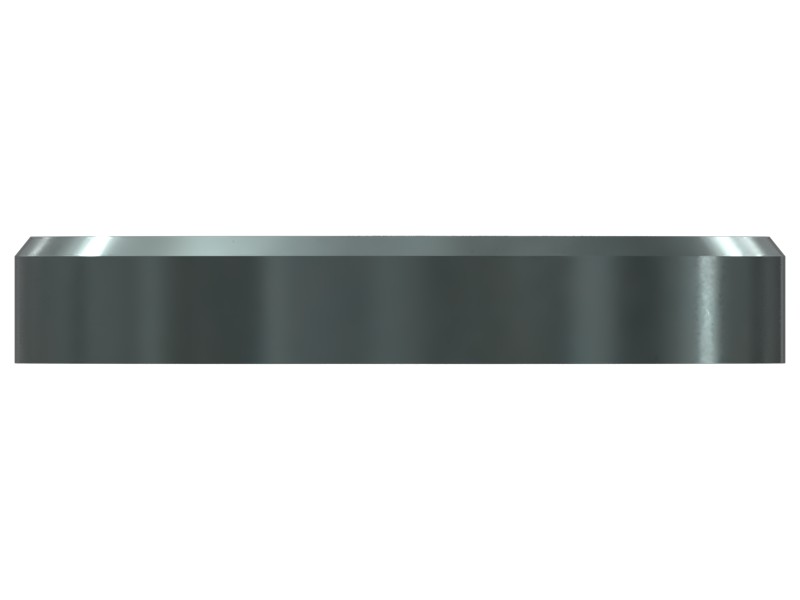

3B-4510 Operator Guard Lock Washer
Cat® 5/8 in, M16 Threaded Fastener Lock Washer for Operator Guards
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency.
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
- This type of washer maintains constant pressure or tightness under heavy loads.
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Gasket Type | Helical Spring-Split |
|---|---|
| Material | Carbon Steel |
| Thickness | 4 mm (0.157 in) |
| Outside Diameter | 28 mm (1.102 in) |
| Inside Diameter | 16.2 mm (0.638 in) |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
Compatible Equipment
- Generator Sets: 3512B, C9, 3406C, C7.1, 3516C, G3516C, 3512E, 3406B, C4.4
- Track Loaders: 994K, 992, 953, 995, 824C, 963
- Cold Planers: PL61, PM622, PM620
- Compactors: C9.3B, 814, 815, 816
- Engines: C15, C32, C18
- Excavators: 349D2 L, 336D2, 320D, 320D2, 330, 3456, 349D2, 349D, 329D2 L, 326D2 L, 3126, 326D2, 308D, 336D, 329D, 329D2, 305C CR, 303C CR, 308E, 313 GC, 316 GC, 330D L, 349F L, 313, 349E L, 350MHPU, 336, 320C, 3516B, 352, 340, 336D2 L, 345D L, 349D L, 349E L VG, 350, 352F, 349, 313D2, 312 GC, 315 GC, 323 GX, 330 GC, 345 GC, 365B, 345C, 320 GX, 350 L, 6060, 345B, 355, 313 GX, 340D L, 365B L, 345C L, 385B, 637E, 314C, 311B, 325C, 320C L, 312D2 GC, 316 GX, 340D2 L, 6040, 320D3, 312 GX, 320D2 L, 313D2 GC, 325D L, 336D L, 315C, 318D2, 323D L, 314D LCR, 329D L, 318D2 L, 312C, 313F LGC, 313D, 312C L, 320D2 GC, 325B L, 320D L, 330C L, 314D CR, 324D L, 330D2, 336D2 XE, 330C, 325C L, 323D2 L, 328D LCR, 311C, 320B, 333, 336D2 GC, 312D2 L, 312D2, 637G, 315, 313F L, 330D2 L, 312D, 326D L, 318D L, 320D GC, 330GC, 325B, 330D, 330B, 313D2-GC, 320D FM, 3512C, 315F LCR, 324D, 3516E, 432, 349E
- Skid Steer Loaders: 313D2 LGP, 24, 262C, 3126B
- Motor Graders: 3606, 16, 120, 140G, 16H, 349 GC
- Wheel Excavators: M315GC, MD6250, MD6310, M315
- Dozers: D11R, D10N, D4E, D7G, D8L, D7R, D10, D7H, D5H, D9L, D7E, D10R, D6K2, D8N, D7G2, D9N, D11N, D8R, D4, D6T
- Mini Excavators: 303.5C, 303.5E, 307E2, 305.5E, 307C, 308, 307B, 307D, 303.5D
- Wheel Loaders: 950 GC, 992C, 834, R1700 II, 950, 980, 910
- Off-Highway Trucks: 789, 793D, 794 AC, 7495, 789D, 785, 777, 773, 785D, 771D, 773D, 793
