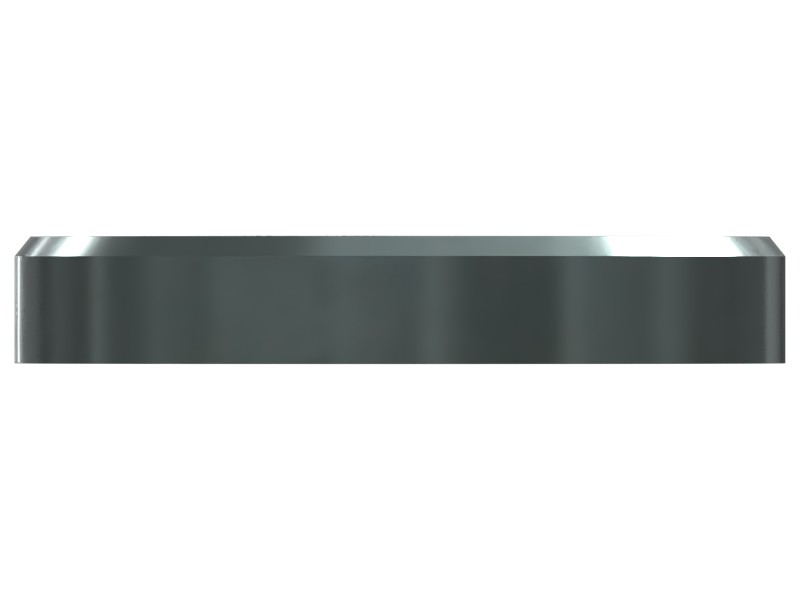

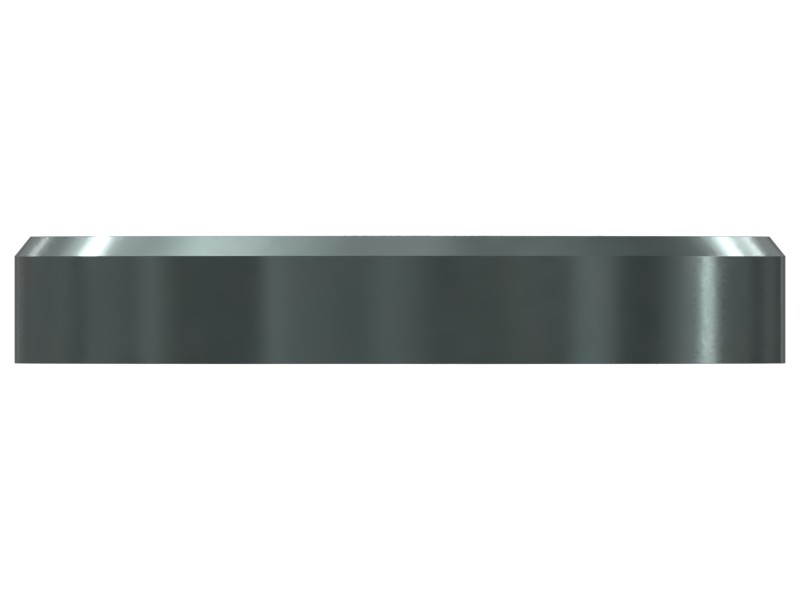

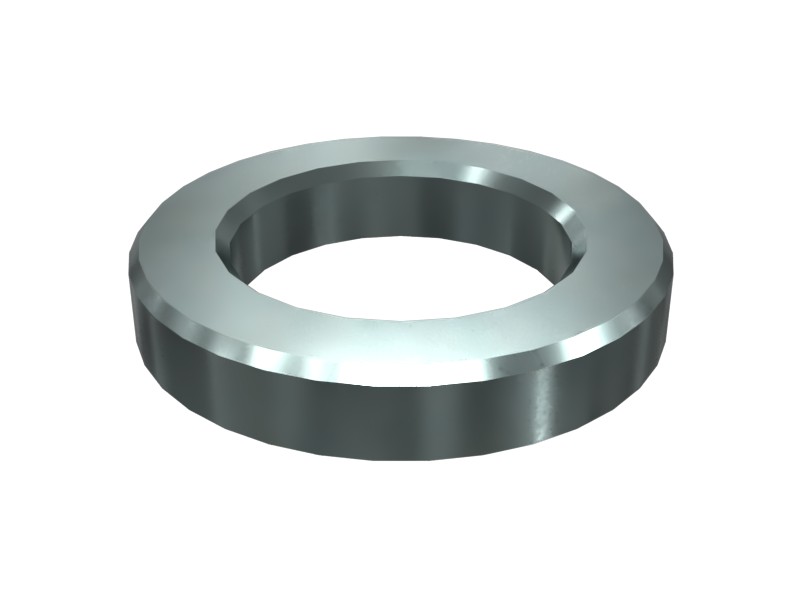

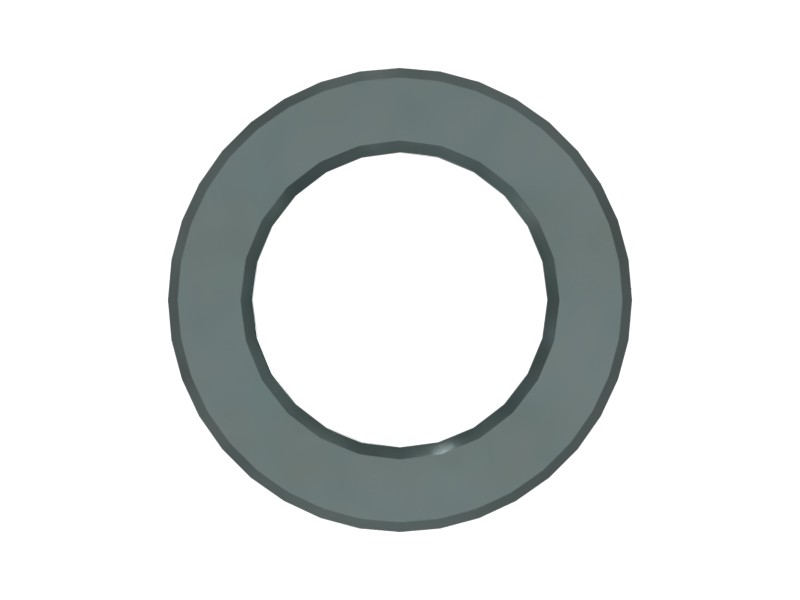

3B-4509 14.3 mm ID Lock Washer
Cat® Lock Washer for Use with 9/16 in, M14 Threaded Fasteners
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency.
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
- This type of washer maintains constant pressure or tightness under heavy loads.
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Outside Diameter | 24.51 mm (0.965 in) |
|---|---|
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Thickness | 3.6 mm (0.142 in) |
| Inside Diameter | 14.3 mm (0.563 in) |
| Gasket Type | Helical Spring-Split |
| Material | Carbon Steel |
Compatible Equipment
- Generator Sets: C4.4, C4.4DE88E0, C7.1, 3512B
- Track Loaders: 953D, 963D, 963, 953, 963K, 953K
- Cold Planers: PL61
- Compactors: CW-34, CS-54, CS-533C, CS-56, CB-64B, CB16, CB-66B, CS7, CP12 GC, CP11 GC, CS12 GC, 815, 814, 816, CB-44B, CB13, CB15, CB10, CS-54B
- Engines: C32, C6.6
- Excavators: 326D2 L, 320D2, 329D2 L, 330, 320D, 326D2, 329D, 329D2, 313 GC, 316 GC, 313, 320E, 326, 329E L, 329E, 320C, 323D2 L, 320D L, 318D2, 320D2 L, 312D L, 323D L, 325C, 328D LCR, 325D L, 312D, 329D L, 330D2, 320B, 320 GC, 320D FM, 330D2 L, 313D2, 315D L, 324D L, 320, 324D, 320D2 GC, 312D2, 315, 312F, 325D, 312D2 GC, M325D L MH, 312D2 L, 336 GC, 313D, 312E L, 314D LCR, 311D LRR, 320D RR, 325B L, 318D2 L, 335F LCR, 313D2 GC, 323, 314D CR, 326D L, 335, 315 GC, 313F LGC, 323D2, 313D2-GC, 318D L, 330GC, 320D GC, 326GC, 345 GC, 320 GX, 323 GX, 325, 313 GX, 312 GX, 316 GX, 312 GC, 350, 333 GC, 326 GC, 333, 6060, 330 GC, 325C L, 315F LCR, 320C L, 312E, 323D, 325B, 416F2, 434F2, 313F L, 3516E, 432, 345C, 350MHPU, 336, XQP200
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 313D2 LGP, 262D3, 299D3 XE, 236D3, 239D3, 259D3, 249D3, 272D3 XE, 242D3, 272D3
- Motor Graders: 140 GC, 349 GC, 120
- Wheel Excavators: M313D, IT14G, M322D, M317D2, M315D2, M320D2, M315D, M315, M320, M315GC
- Dozers: D5K XL, D6N, D5K LGP, D3K2 LGP, D5K2 XL, D1
- Compact Track Loaders: 299D3
- Mini Excavators: 310, 308
- Wheel Loaders: 926M, M314, 938K, 928HZ, 938M, 924HZ, 834, 924K, 910, 950 GC, 950
