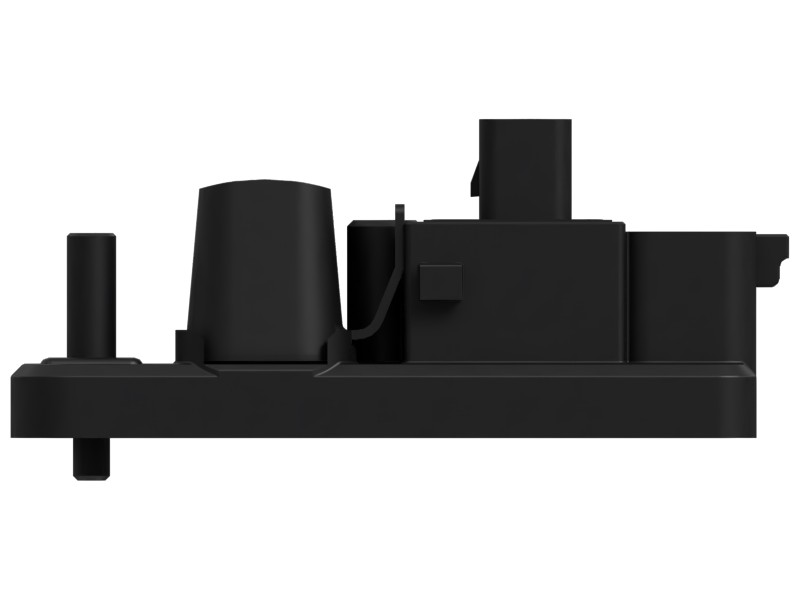

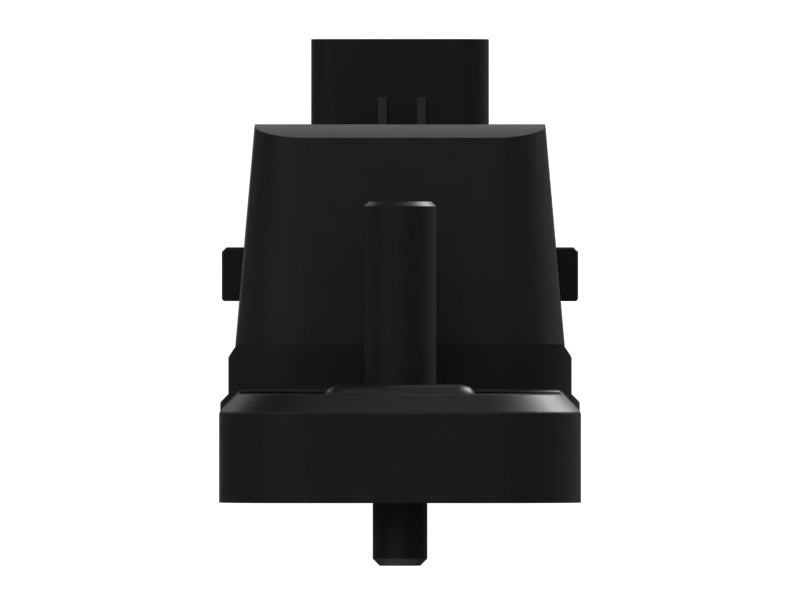

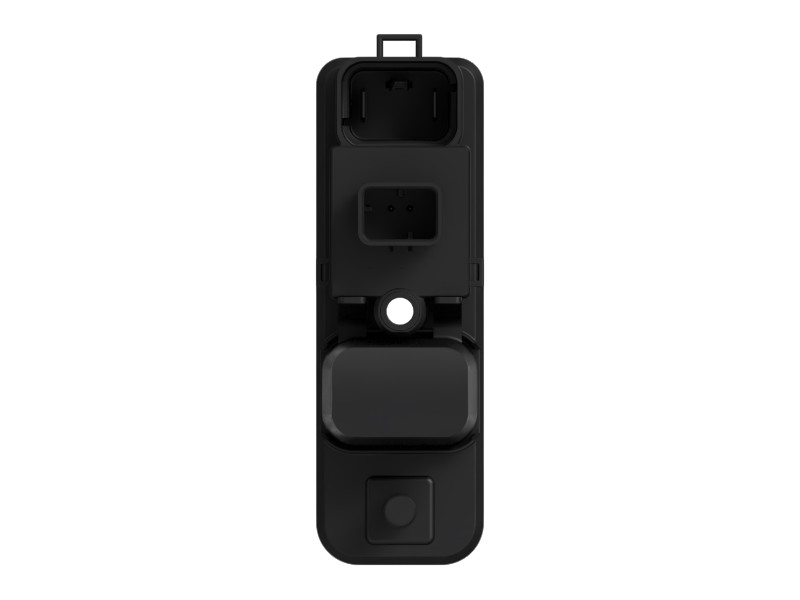

398-6363 12 Volt Battery Relay
Cat® 12V mechanical relay, 2-position (2X).
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
When current is applied to the relay (398-6363), it energizes an electromagnet. The electromagnet closes the open contacts, energizing the circuit. Meets your quality expectations in demanding work environments.
Features
- Voltage: 12 V
- M8 input stud
- Connector Series: Ampseal 16; Delphi Metri-Pack 800 Series
- Duty Cycle: Continuous
- Connector Pin Count: 2 (2X)
- Operating Temperature: -40°C to 85°C (-40°F to 185°F)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Type | Mechanical |
| Connector Pin Count | 2 (2X) |
| Length | 127 mm (4.98 in) |
| Width | 40 mm (1.57 in) |
| Height | 72 mm (2.82 in) |
| Voltage | 12 Volts |
Compatible Equipment
- Mini Excavators: 301.5, 301.7CR, 302CR, 307E2, 305E2, 305.5E2
- Excavators: 305E2 CR, 301.6, 301.8, 302.7CR, 303.5CR, 303CR, 303.5E2 CR
