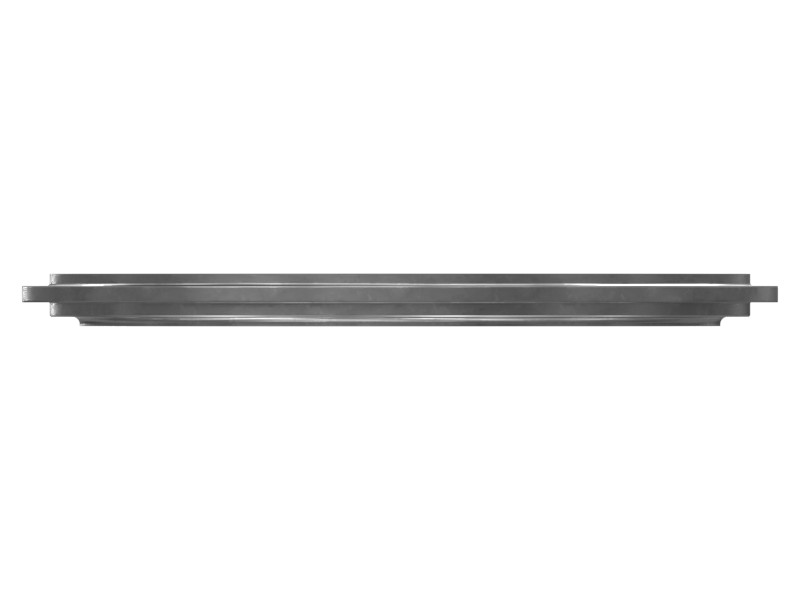

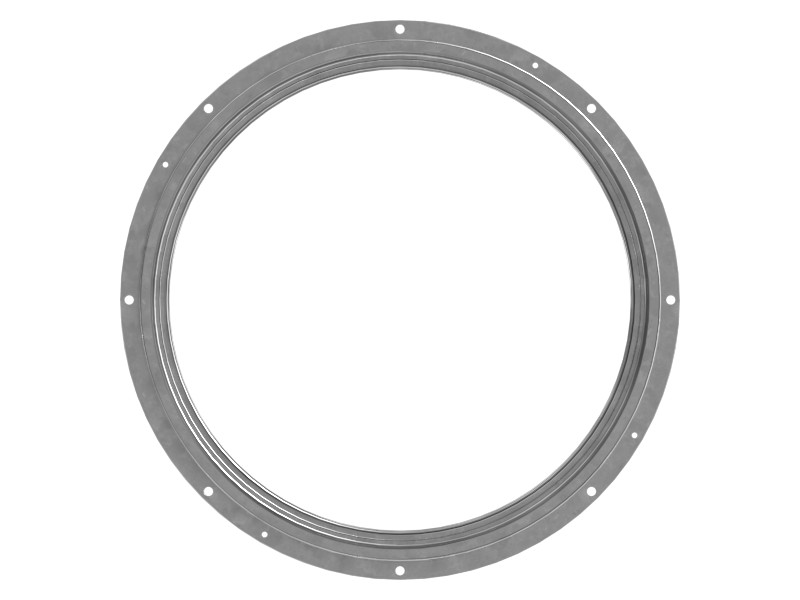

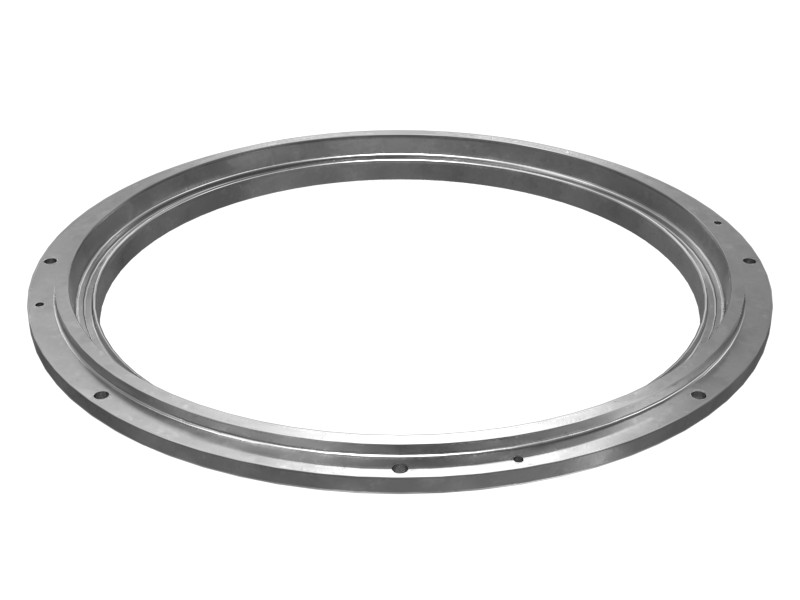

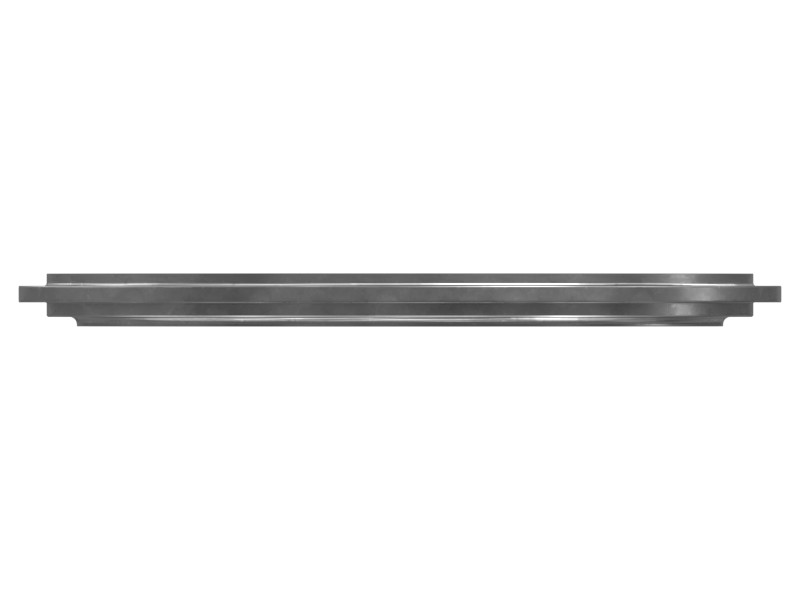

396-3974 603.2 mm OD Seal Retaining Ring
Cat® 603.2 mm OD gray cast iron seal retainer for final drive wheel service and parking brakes
Description
Cat retainers are used to hold components in the correct position for the application. Their rugged construction and materials ensure long service life.
Features
- Material: Cast iron
- Outside Diameter: 603.2 mm (23.748 in)
- Inside Diameter: 498.48 mm (19.625 in)
- Width: 41.34 mm (1.627 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Gray (Flake) Iron |
|---|---|
| Material Description | Cast Iron |
| Approximate Weight | 12.30 kg (27.12 lb) |
| Outside Diameter | 603.2 mm (23.75 in) |
| Inside Diameter | 498.48 mm (19.625 in) |
| Width | 41.34 mm (1.627 in) |
| Thickness | 41.34 mm (1.63 in) |
Compatible Equipment
- Off-Highway Trucks: 785, 785D, 773E, 773D, 777E, 777D, 777, 773
