Description
Cat pressure switch groups are designed to turn on and off in response to changes in the system set pressure. Cat parts ensure your equipment runs at its best.
Features

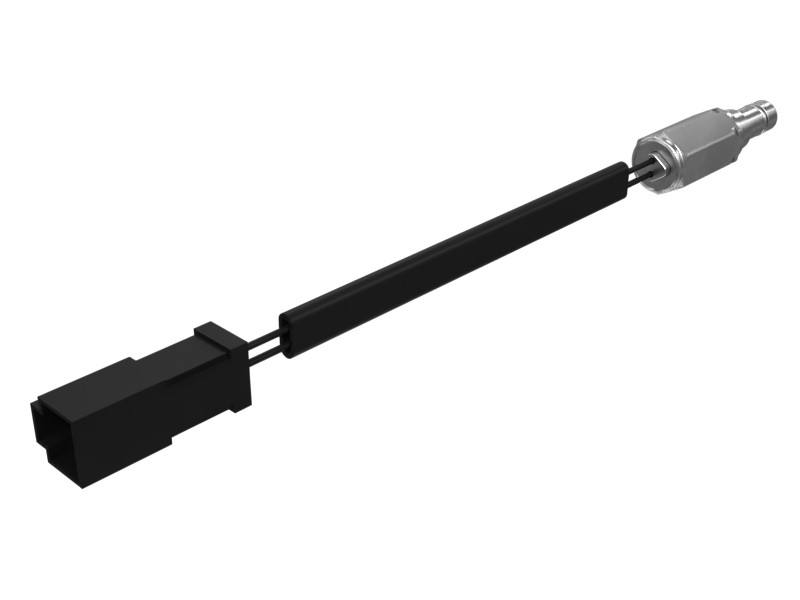

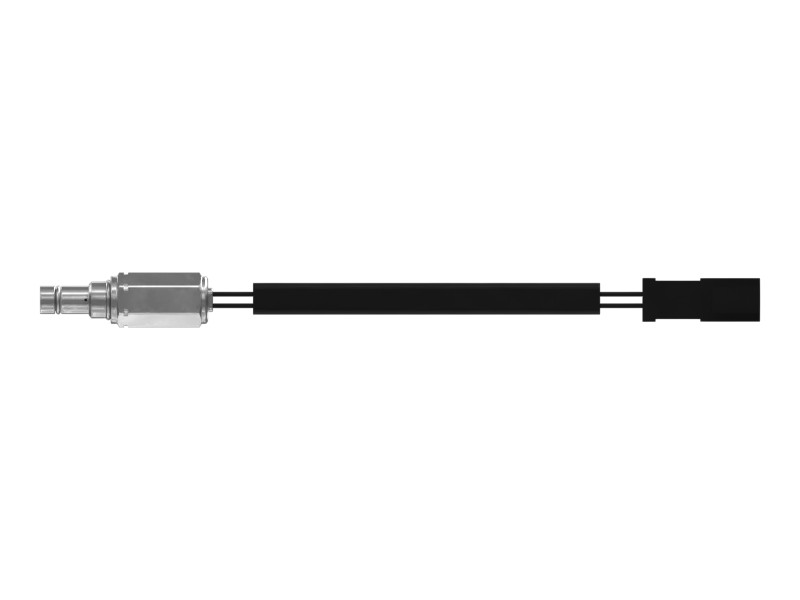

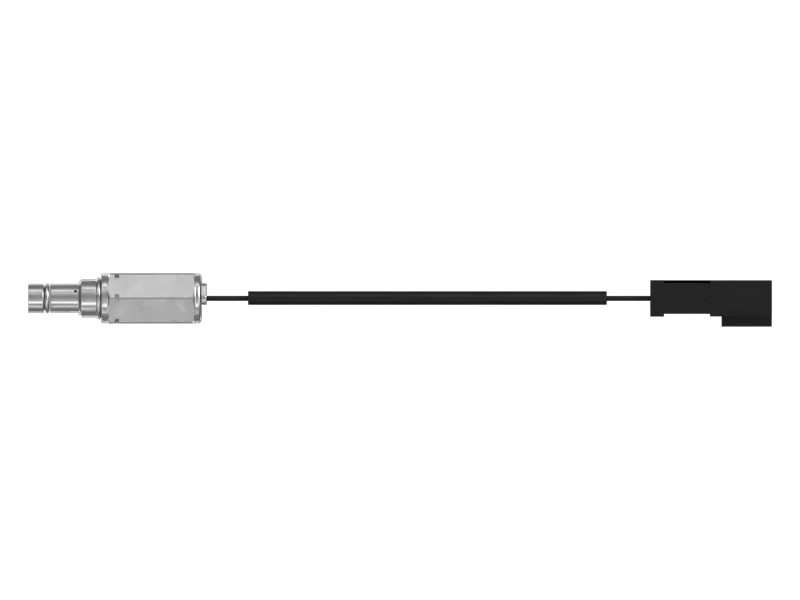

- Aluminum switch assembly with pigtail connector
- Activation Pressure: 276 kPa (40 psi)
- Contact Position: Normally Closed
- Media: Oil, Fuel, and Air

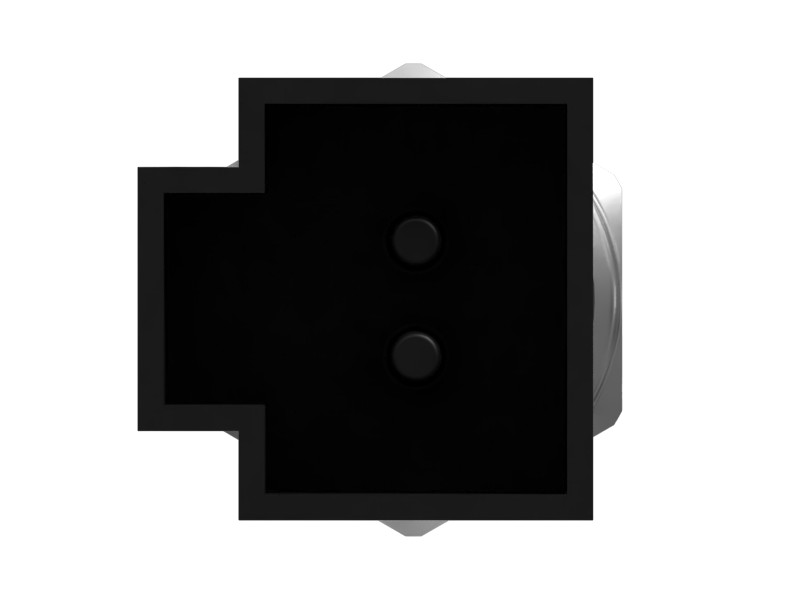

- Connector Type: 2-Pin DT
- Thread Size: 9/16-18
- RoHS compliant
- Reinforced design extends service life
- High precision ensures stable performance
- Easy and quick installation
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat parts can operate in heavy-duty applications in environments with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, moisture, corrosion and dust.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Overall Length | 284.2 mm (11.19 in) |
| Hex Size | 19.1 mm (0.75 in) |
| Connector Type | 2-Pin DT |
| Thread Size | 9/16-18 in |
Compatible Equipment
- Track Loaders: 995, 994K, 992
- Dozers: D11R, D10R
- Excavators: 6015, 6015B
- Wheel Loaders: 992K
- Off-Highway Trucks: 770G, 777, 797F, 773, 793F, 772G, 773F, 775G
